Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

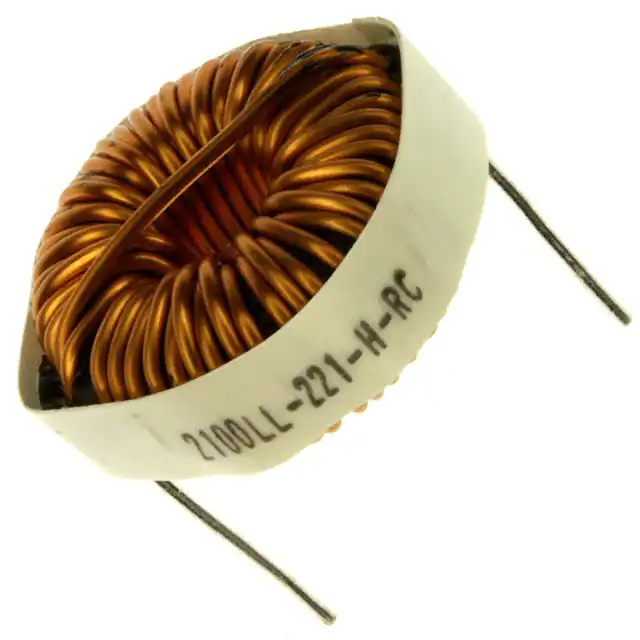

2100LL-221-H-RCFIXED IND 220UH 3.5A 53 MOHM TH Bourns Inc. |
557 |
|
Таблицы данных |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 220 µH | ±15% | 3.5 A | - | Shielded | 53mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100LL-470-H-RCFIXED IND 47UH 5.2A 24 MOHM TH Bourns Inc. |
543 |
|
Таблицы данных |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 5.2 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100LL-331-V-RCFIXED IND 330UH 2.5A 103 MOHM TH Bourns Inc. |
434 |
|
Таблицы данных |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 330 µH | ±15% | 2.5 A | - | Shielded | 103mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-100-V-RCFIXED IND 10UH 11.4A 5 MOHM TH Bourns Inc. |
278 |
|
Таблицы данных |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 10 µH | ±15% | 11.4 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
PQ2614BLA-1R0KFIXED IND 1UH 30A 1.2 MOHM SMD Bourns Inc. |
996 |
|
Таблицы данных |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 30 A | - | Shielded | 1.2mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-100KFIXED IND 10UH 30A 1.6 MOHM SMD Bourns Inc. |
692 |
|
Таблицы данных |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 30 A | 16.2A | Shielded | 1.6mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-220KFIXED IND 22UH 30A 1.6 MOHM SMD Bourns Inc. |
575 |
|
Таблицы данных |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 30 A | 6A | Shielded | 1.6mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-150KFIXED IND 15UH 30A 1.6 MOHM SMD Bourns Inc. |
475 |
|
Таблицы данных |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 30 A | 9.8A | Shielded | 1.6mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BHA-6R8KFIXED IND 6.8UH 30A 1.9 MOHM SMD Bourns Inc. |
734 |
|
Таблицы данных |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 30 A | 34.5A | Shielded | 1.9mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BHA-330KFIXED IND 33UH 30A 1.9 MOHM SMD Bourns Inc. |
557 |
|
Таблицы данных |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 30 A | 5.1A | Shielded | 1.9mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
