Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-30680FIXED IND 68UH 1.8A 200 MOHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.8 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-30681FIXED IND 680UH 400MA 2.2OHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 400 mA | - | Unshielded | 2.2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|

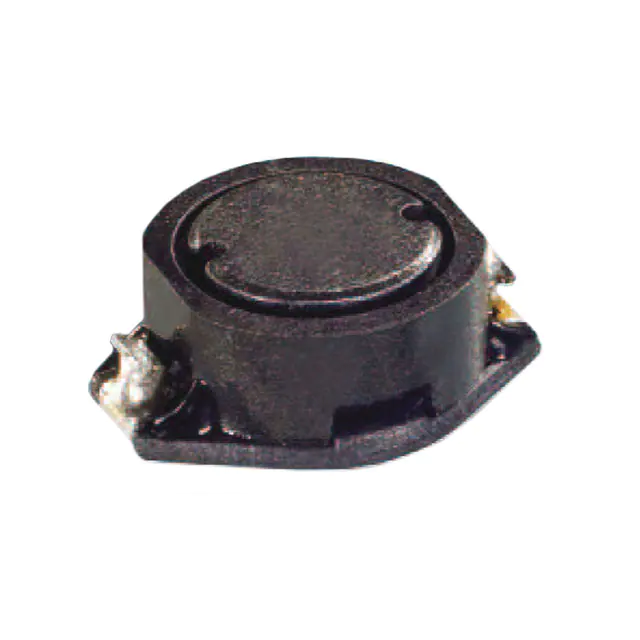

AX1005-102KFIXED IND 1MH 220MA 3.2 OHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX1005 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 220 mA | - | Shielded | 3.2Ohm Max | 70 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.193" (4.90mm) |
|

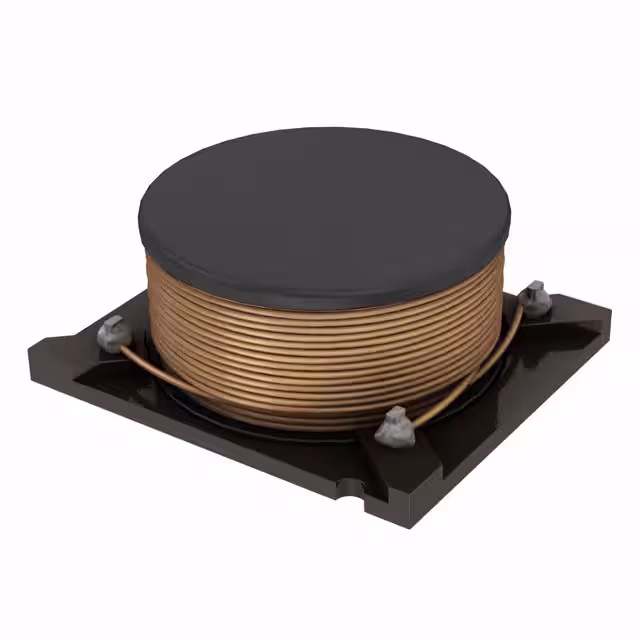

AX97-40681FIXED IND 680UH 780MA 1 OHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 780 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40100FIXED IND 10UH 6.5A 20 MOHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40101FIXED IND 100UH 2A 150 MOHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40150FIXED IND 15UH 5.3A 30 MOHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.3 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40220FIXED IND 22UH 4.4A 40 MOHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.4 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40221FIXED IND 220UH 1.3A 330MOHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | - | Unshielded | 330mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40330FIXED IND 33UH 3.5A 60 MOHM SMD Triad Magnetics |
0 |
|
Таблицы данных |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.5 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
