Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF10040T-6R8N-DFIXED IND 6.8UH 3.7A 24.05 MOHM TDK Corporation |
506 |
|
Таблицы данных |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.7 A | 4.8A | Shielded | 24.05mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|

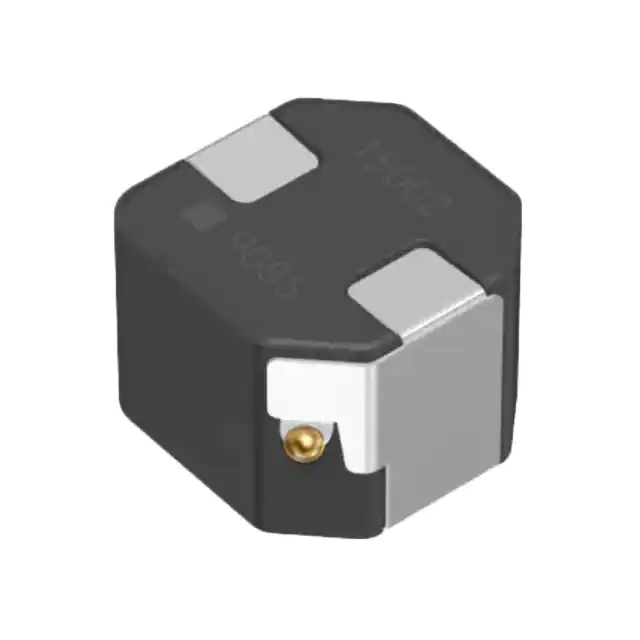

SPM7054VC-470M-DFIXED IND 47UH 2.6A 0.186OHM SMD TDK Corporation |
1,914 |
|
Таблицы данных |
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.6 A | 5.3A | Shielded | 186mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|

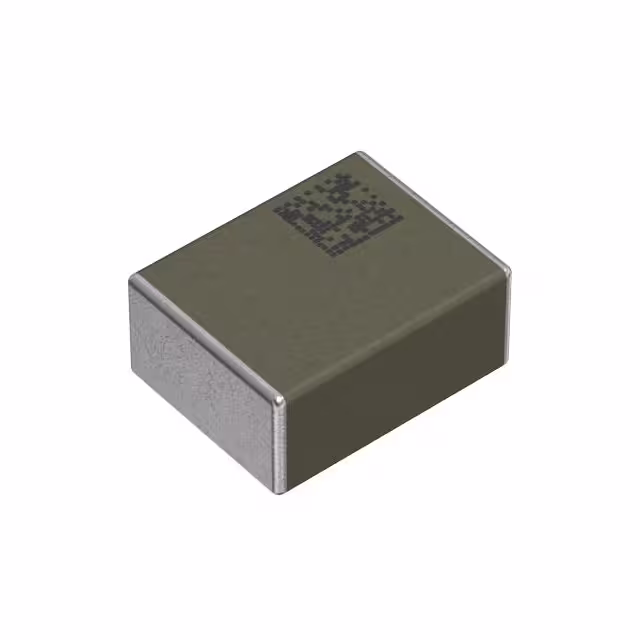

BCL322515RT-330M-DFIXED IND 33UH 750MA 1.11OHM SMD TDK Corporation |
3,823 |
|
Таблицы данных |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 750 mA | 680mA | Shielded | 1.11Ohm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.059" (1.50mm) |
|
BCL322520RT-220M-DINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
1,317 |
|
Таблицы данных |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 1.2 A | 1.2A | Shielded | 460mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
SLF12565T-100M4R8-PFFIXED IND 10UH 4.8A 24.2MOHM SMD TDK Corporation |
1,141 |
|
Таблицы данных |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.8 A | 5A | Shielded | 24.2mOhm Max | - | - | - | -20°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
SLF12565T-220M3R5-PFFIXED IND 22UH 3.8A 37.9MOHM SMD TDK Corporation |
1,119 |
|
Таблицы данных |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.8 A | 3.5A | Shielded | 37.9mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
SLF12565T-330M2R8-PFFIXED IND 33UH 3.4A 48.7MOHM SMD TDK Corporation |
902 |
|
Таблицы данных |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 2.8A | Shielded | 48.7mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LTF5022T-1R2N3R4-DFIXED IND 1.2UH 3.4A 31 MOHM SMD TDK Corporation |
669 |
|
Таблицы данных |
LTF5022T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3.4 A | 3.87A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.197" W (6.50mm x 5.00mm) | 0.087" (2.20mm) |
|
BCL322520RT-150M-DINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
591 |
|
Таблицы данных |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.47 A | 1.33A | Shielded | 320mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
BCL322520RT-101M-DINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
6,000 |
|
Таблицы данных |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 100 µH | ±20% | 520 mA | 560mA | Shielded | 2.29Ohm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
