Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ0402P6N8HT000FIXED IND 6.8NH 200MA 1 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 6.8 nH | ±3% | 200 mA | - | Unshielded | 1Ohm Max | 10 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.017" L x 0.009" W (0.44mm x 0.24mm) | 0.010" (0.26mm) |
|
|
MHQ0402P7N5HT000FIXED IND 7.5NH 200MA 1.2OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 7.5 nH | ±3% | 200 mA | - | Unshielded | 1.2Ohm Max | 10 @ 500MHz | 3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.017" L x 0.009" W (0.44mm x 0.24mm) | 0.010" (0.26mm) |
|
|
MHQ0402P7N5JT000FIXED IND 7.5NH 200MA 1.2OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 7.5 nH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 10 @ 500MHz | 3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.017" L x 0.009" W (0.44mm x 0.24mm) | 0.010" (0.26mm) |
|
|
MHQ0402P8N2HT000FIXED IND 8.2NH 180MA 1.2OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 8.2 nH | ±3% | 180 mA | - | Unshielded | 1.2Ohm Max | 10 @ 500MHz | 3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.017" L x 0.009" W (0.44mm x 0.24mm) | 0.010" (0.26mm) |
|
|
MHQ0402P8N2JT000FIXED IND 8.2NH 180MA 1.2OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 8.2 nH | ±5% | 180 mA | - | Unshielded | 1.2Ohm Max | 10 @ 500MHz | 3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.017" L x 0.009" W (0.44mm x 0.24mm) | 0.010" (0.26mm) |
|

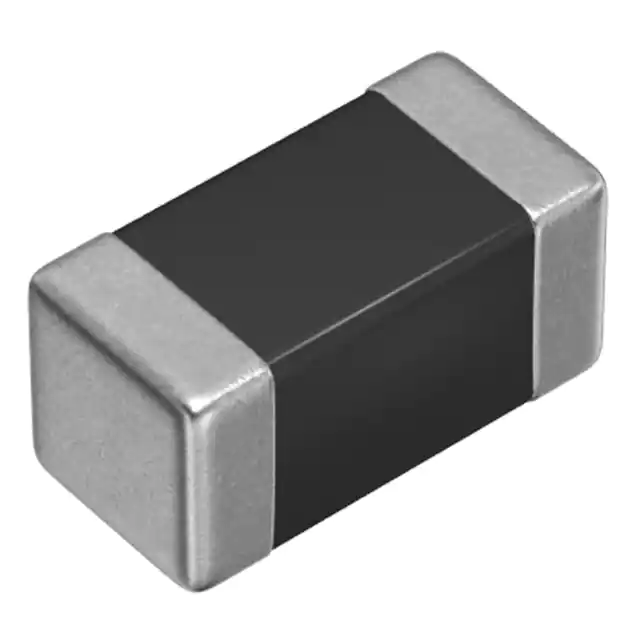

MLP1608S1R0FFIXED IND 1UH 500MA 450 MOHM SMD TDK Corporation |
0 |
|
- |
MLP | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±30% | 500 mA | - | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

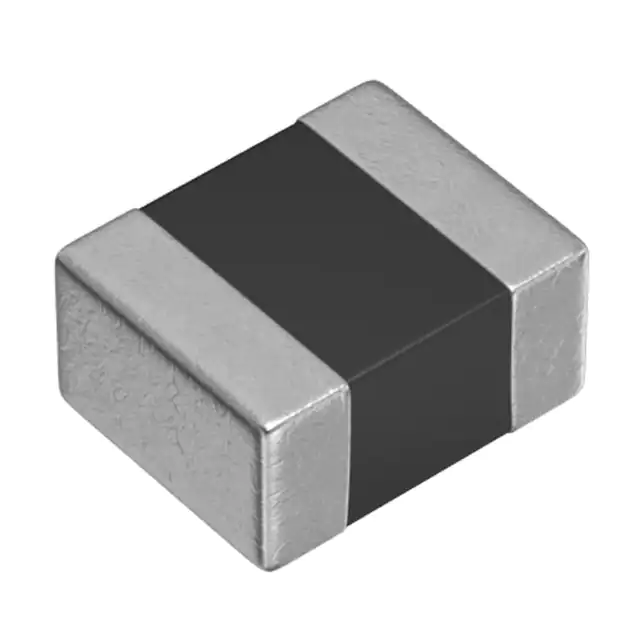

MLP2520W1R0MT0S1FIXED IND 1UH 2.3A 62 MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 2.3 A | - | Shielded | 62mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MLP2520W2R2MT0S1FIXED IND 2.2UH 1.2A 208MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 208mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MLP2520W3R3MT0S1FIXED IND 3.3UH 1.2A 208MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 1.2 A | - | Shielded | 208mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MLP2520WR68MT0S1FIXED IND 680NH 2.8A 52 MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 680 nH | ±20% | 2.8 A | - | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
