Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

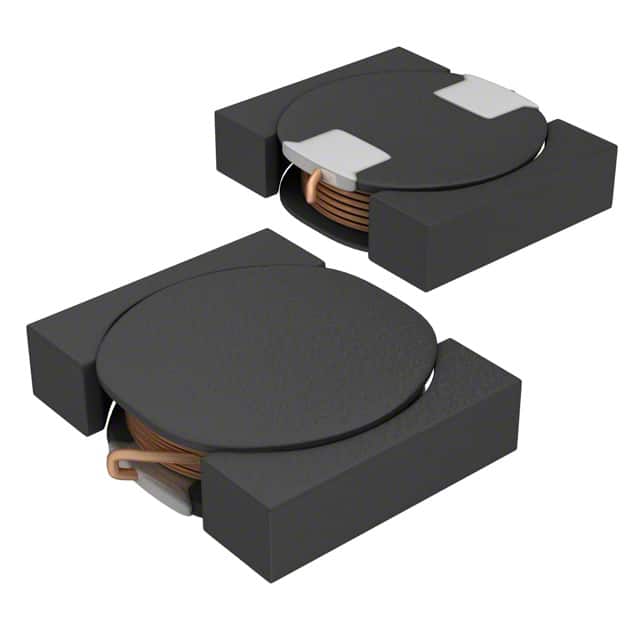

VLF504012MT-2R2MFIXED IND 2.2UH 2.71A 55MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.71 A | 2.54A | Shielded | 55mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLF504012MT-6R8MFIXED IND 6.8UH 1.77A 170MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.77 A | 1.48A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLF504012MT-150MFIXED IND 15UH 1.08A 320MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.08 A | 1.01A | Shielded | 320mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLF504012MT-6R8M-CAFIXED IND 6.8UH 1.77A 170MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.77 A | 1.48A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLF504012MT-220M-CAFIXED IND 22UH 840MA 580MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 840 mA | 800mA | Shielded | 580mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLF504015MT-1R0NFIXED IND 1UH 3.61A 32 MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.61 A | 3.72A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
VLF504015MT-2R2MFIXED IND 2.2UH 2.6A 53 MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.6 A | 2.71A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
VLF504015MT-4R7MFIXED IND 4.7UH 2.43A 70MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.43 A | 1.98A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
VLF504015MT-6R8MFIXED IND 6.8UH 2A 100 MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2 A | 1.65A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
VLF504015MT-100MFIXED IND 10UH 1.58A 140MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.58 A | 1.3A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.059" (1.50mm) |
