Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLF1005AR68KFIXED IND 680NH 10MA 800MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 680 nH | ±10% | 10 mA | - | Shielded | 800mOhm Max | 25 @ 10MHz | 150MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
SL1215-100K3R6-PFFIXED IND 10UH 3.6A 19 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 10 µH | ±10% | 3.6 A | 9.8A | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-101K1R5-PFFIXED IND 100UH 1.5A 100 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 100 µH | ±10% | 1.5 A | 3.4A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-102KR51-PFFIXED IND 1MH 510MA 960 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1 mH | ±10% | 510 mA | 1.1A | Unshielded | 960mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-150K3R3-PFFIXED IND 15UH 3.3A 22 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 15 µH | ±10% | 3.3 A | 8.9A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-151K1R3-PFFIXED IND 150UH 1.3A 150 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 150 µH | ±10% | 1.3 A | 2.8A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

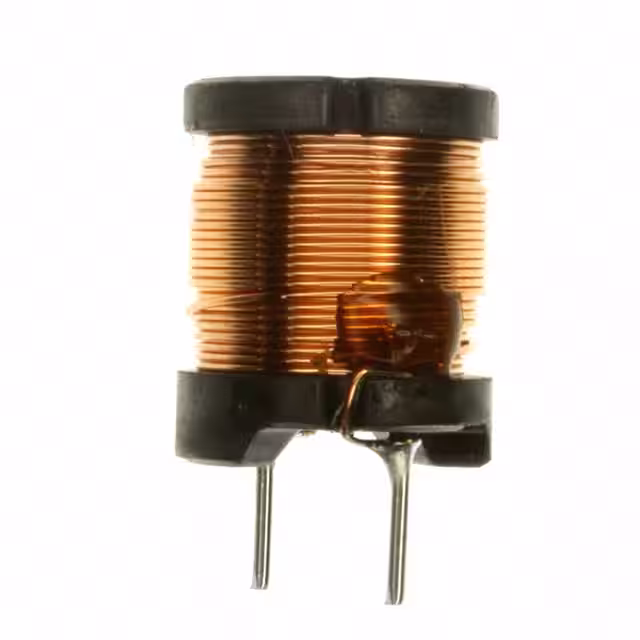

SL1215-152KR42-PFFIXED IND 1.5MH 420MA 1.4 OHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1.5 mH | ±10% | 420 mA | 900mA | Unshielded | 1.4Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

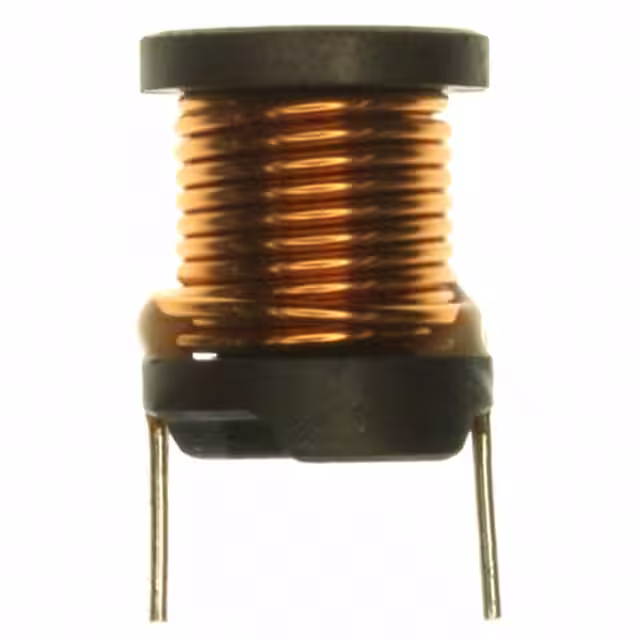

SL1215-220K2R8-PFFIXED IND 22UH 2.8A 31 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 22 µH | ±10% | 2.8 A | 7.2A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

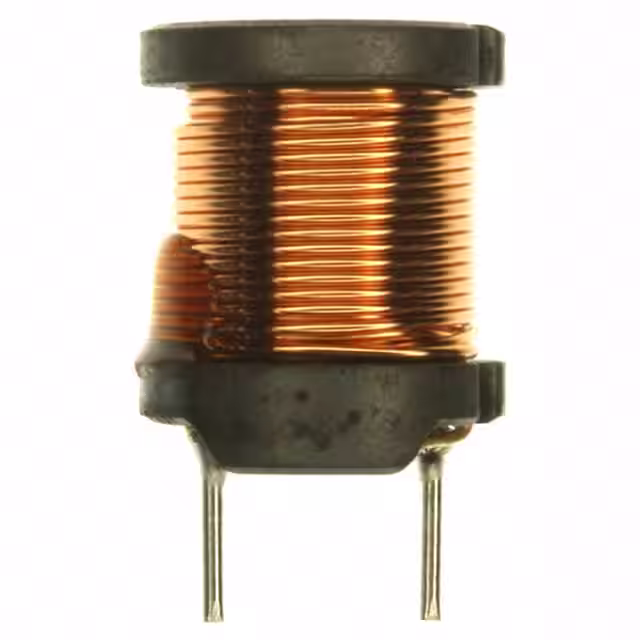

SL1215-221K1R0-PFFIXED IND 220UH 1A 260 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 220 µH | ±10% | 1 A | 1.9A | Unshielded | 260mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

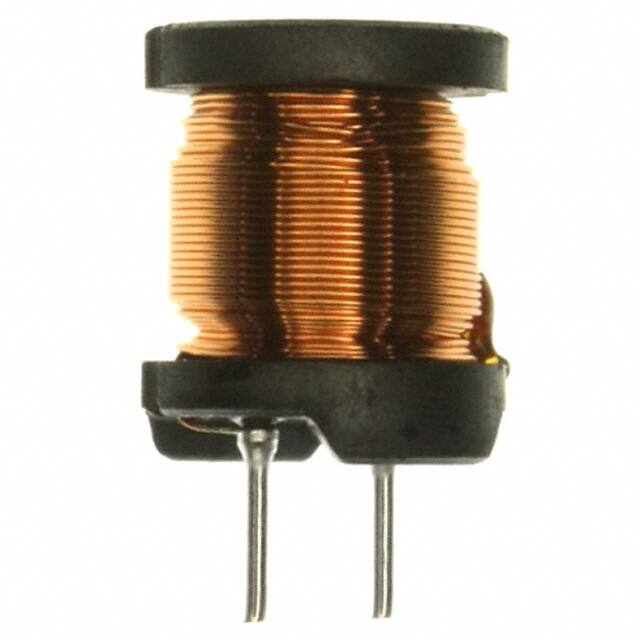

SL1215-222KR31-PFFIXED IND 2.2MH 310MA 2.5 OHM TH TDK Corporation |
0 |
|
Таблицы данных |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 310 mA | 700mA | Unshielded | 2.5Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
