Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

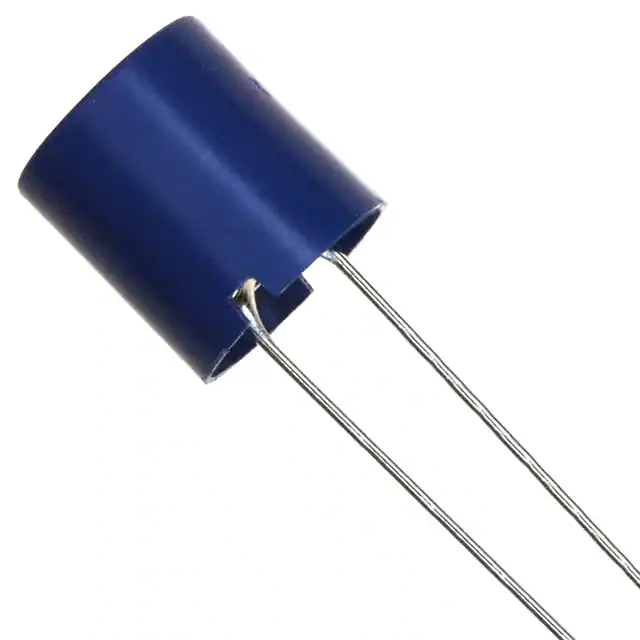

TSL1112RA-151K1R1-PFFIXED IND 150UH 1.1A 260 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 150 µH | ±10% | 1.1 A | 1.3A | Unshielded | 260mOhm Max | 20 @ 796kHz | 3.1MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-150M3R4-PFFIXED IND 15UH 3.4A 29 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 15 µH | ±20% | 3.4 A | 4.2A | Unshielded | 29mOhm Max | 20 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-103JR14-PFFIXED IND 10MH 140MA 18 OHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 10 mH | ±5% | 140 mA | 170mA | Unshielded | 18Ohm Max | 30 @ 79.6kHz | 380kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-102JR50-PFFIXED IND 1MH 500MA 1.4 OHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 1 mH | ±5% | 500 mA | 510mA | Unshielded | 1.4Ohm Max | 20 @ 252kHz | 1.1MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-101K1R4-PFFIXED IND 100UH 1.4A 160 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 100 µH | ±10% | 1.4 A | 1.6A | Unshielded | 160mOhm Max | 20 @ 796kHz | 3.8MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
TSL1112RA-100M3R7-PFFIXED IND 10UH 3.7A 25 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 10 µH | ±20% | 3.7 A | 5A | Unshielded | 25mOhm Max | 20 @ 2.52MHz | 16MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
TSL0808RA-6R8M3R1-PFFIXED IND 6.8UH 3.1A 25 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 6.8 µH | ±20% | 3.1 A | 3.2A | Unshielded | 25mOhm Max | 10 @ 7.96MHz | 22MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
TSL0808RA-681KR32-PFFIXED IND 680UH 320MA 1.5 OHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 680 µH | ±10% | 320 mA | 320mA | Unshielded | 1.5Ohm Max | 15 @ 796kHz | 1.6MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
|
TSL0808RA-4R7M3R5-PFFIXED IND 4.7UH 3.5A 21 MOHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 4.7 µH | ±20% | 3.5 A | 3.8A | Unshielded | 21mOhm Max | 10 @ 7.96MHz | 27MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
|
TSL0808RA-471KR38-PFFIXED IND 470UH 380MA 1 OHM TH TDK Corporation |
0 |
|
Таблицы данных |
TSL | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | - | 470 µH | ±10% | 380 mA | 380mA | Unshielded | 1Ohm Max | 15 @ 796kHz | 2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
