Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF302515MT-1R5N-CAFIXED IND 1.5UH 3.14A 38MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.14 A | 1.84A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-2R2M-CAFIXED IND 2.2UH 2.71A 50MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.71 A | 1.57A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-4R7M-CAFIXED IND 4.7UH 1.95A 90MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.95 A | 1.03A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|

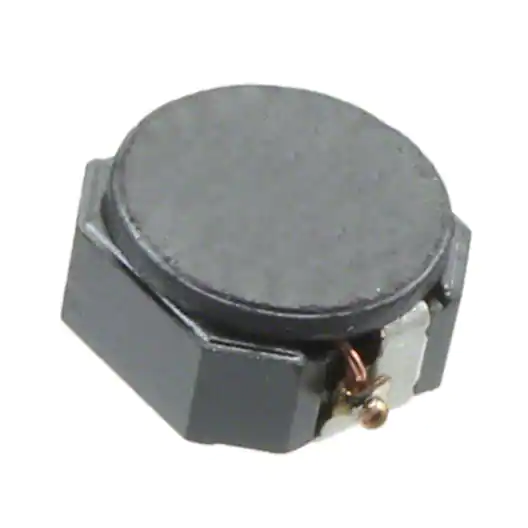

LTF4022T-560M-DFIXED IND 56UH 560MA 870MOHM SMD TDK Corporation |
1 |
|
Таблицы данных |
LTF4022-D | 2-SMD | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 560 mA | 410mA | Shielded | 870mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.087" (2.20mm) |
|
|
LTF4022T-330M-DFIXED IND 33UH 720MA 560MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
LTF4022-D | 2-SMD | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 720 mA | 520mA | Shielded | 560mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.087" (2.20mm) |
|
VLF403212MT-1R0NFIXED IND 1UH 3.62A 31 MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.62 A | 3A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
VLF403212MT-2R2MFIXED IND 2.2UH 2.48A 65MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.48 A | 2.05A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
VLF403212MT-3R3MFIXED IND 3.3UH 1.91A 91MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.91 A | 1.65A | Shielded | 91mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
VLF403212MT-4R7MFIXED IND 4.7UH 1.85A 120MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.85 A | 1.4A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
|
|
VLF403212MT-6R8MFIXED IND 6.8UH 1.33A 180MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.33 A | 1.09A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
