Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

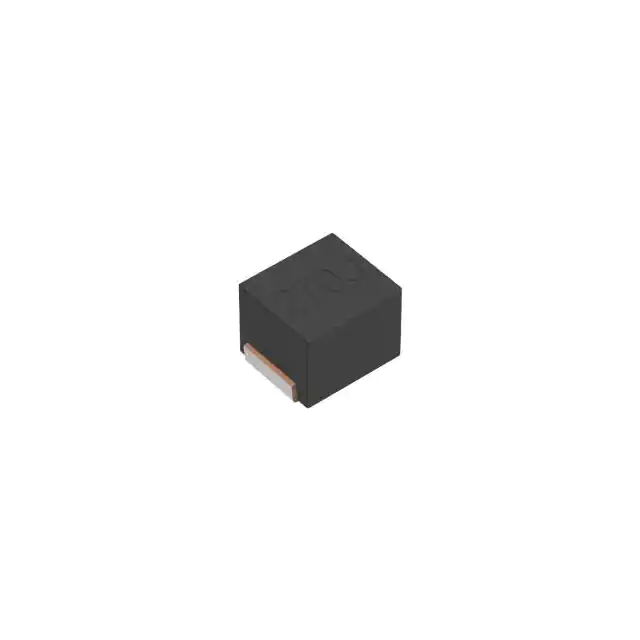

NLV25T-270J-PFDFIXED IND 27UH 115MA 6.3 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 115 mA | - | Unshielded | 6.3Ohm Max | 25 @ 2.52MHz | 21MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-2R2J-PFDFIXED IND 2.2UH 200MA 1.55OHM SM TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 200 mA | - | Unshielded | 1.55Ohm Max | 30 @ 7.96MHz | 105MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-2R7J-PFDFIXED IND 2.7UH 195MA 1.7OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 195 mA | - | Unshielded | 1.7Ohm Max | 30 @ 7.96MHz | 70MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-330J-PFDFIXED IND 33UH 110MA 7.1 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 110 mA | - | Unshielded | 7.1Ohm Max | 25 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-390J-PFDFIXED IND 39UH 90MA 9.5 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 90 mA | - | Unshielded | 9.5Ohm Max | 20 @ 2.52MHz | 18MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-3R3J-PFDFIXED IND 3.3UH 185MA 1.9OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 185 mA | - | Unshielded | 1.9Ohm Max | 30 @ 7.96MHz | 55MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-3R9J-PFDFIXED IND 3.9UH 180MA 2.1OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 180 mA | - | Unshielded | 2.1Ohm Max | 30 @ 7.96MHz | 48MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-470J-PFDFIXED IND 47UH 80MA 11.1 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 80 mA | - | Unshielded | 11.1Ohm Max | 20 @ 2.52MHz | 17MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-4R7J-PFDFIXED IND 4.7UH 175MA 2.3OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 175 mA | - | Unshielded | 2.3Ohm Max | 30 @ 7.96MHz | 43MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-560J-PFDFIXED IND 56UH 75MA 12.1 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PFD | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 75 mA | - | Unshielded | 12.1Ohm Max | 20 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
