Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

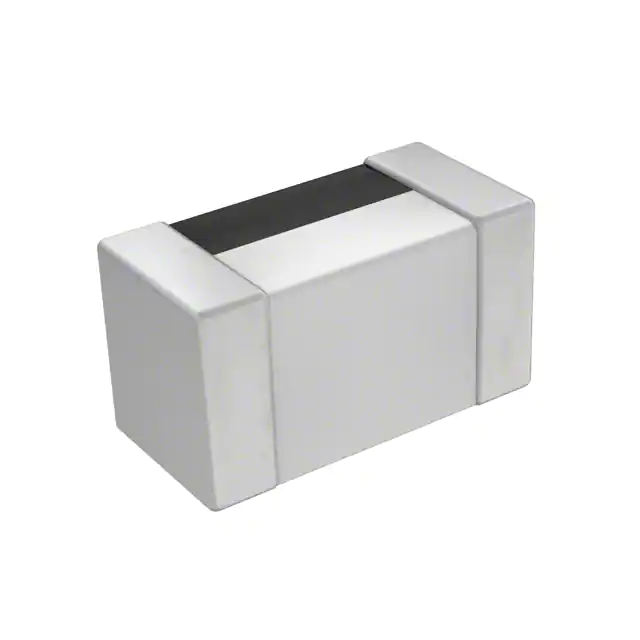

MLG0402Q3N5ST000FIXED IND 3.5NH 180MA 1.1OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.5 nH | ±0.3nH | 180 mA | - | Unshielded | 1.1Ohm Max | 2 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MLG0402Q3N7ST000FIXED IND 3.7NH 180MA 1.1OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.7 nH | ±0.3nH | 180 mA | - | Unshielded | 1.1Ohm Max | 2 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MLG0402Q4N0ST000FIXED IND 4NH 180MA 1.2 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 4 nH | ±0.3nH | 180 mA | - | Unshielded | 1.2Ohm Max | 2 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MLG0402Q4N3ST000FIXED IND 4.3NH 180MA 1.2OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 4.3 nH | ±0.3nH | 180 mA | - | Unshielded | 1.2Ohm Max | 2 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MLG0402Q5N1ST000FIXED IND 5.1NH 160MA 1.4OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 5.1 nH | ±0.3nH | 160 mA | - | Unshielded | 1.4Ohm Max | 2 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MLG0402Q5N6ST000FIXED IND 5.6NH 140MA 1.5OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 5.6 nH | ±0.3nH | 140 mA | - | Unshielded | 1.5Ohm Max | 2 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
 MHQ Series.jpg)
|
MHQ0603P2N7ST000FIXED IND 2.7NH 500MA 250MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.7 nH | ±0.3nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P4N2ST000FIXED IND 4.2NH 400MA 350MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.2 nH | ±0.3nH | 400 mA | - | Unshielded | 350mOhm Max | 16 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P3N8CT000FIXED IND 3.8NH 450MA 300MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.8 nH | ±0.2nH | 450 mA | - | Unshielded | 300mOhm Max | 16 @ 500MHz | 6.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
MLG0603P0N9CTD25FIXED IND 0.9NH 1A 60 MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 0.9 nH | ±0.2nH | 1 A | - | Unshielded | 60mOhm Max | - | 10GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
