БОМ
Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLF2012K390MTFIXED IND 39UH 4MA 2.4 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 39 µH | ±20% | 4 mA | - | Shielded | 2.4Ohm Max | 35 @ 2MHz | 13MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012K560MTFIXED IND 56UH 4MA 1.8 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 56 µH | ±20% | 4 mA | - | Shielded | 1.8Ohm | 35 @ 2MHz | 10MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012DR39KT000FIXED IND 390NH 200MA 450MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±10% | 200 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

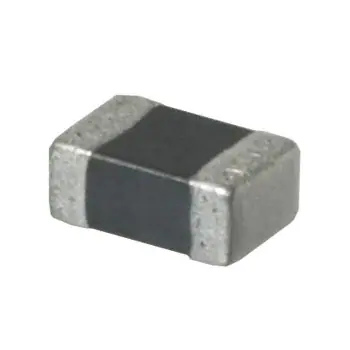

MLF2012A1R5KT000FIXED IND 1.5UH 80MA 400MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±10% | 80 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 100MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MLG1608B5N6DTD25FIXED IND 5.6NH 600MA 160MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 5.6 nH | ±0.5nH | 600 mA | - | Unshielded | 160mOhm Max | 10 @ 100MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B6N8DTD25FIXED IND 6.8NH 600MA 180MOHM SM TDK Corporation |
0 |
|
Таблицы данных |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 6.8 nH | ±0.5nH | 600 mA | - | Unshielded | 180mOhm Max | 10 @ 100MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
 MHQ Series.jpg)
|
MHQ1005PR12JTD25FIXED IND 120NH 140MA 2.7OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 120 nH | ±5% | 140 mA | - | Unshielded | 2.7Ohm Max | 22 @ 250MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
NLV32T-039J-PFFIXED IND 39NH 450MA 270MOHM SMD TDK Corporation |
0 |
|
Таблицы данных |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 39 nH | ±5% | 450 mA | - | Unshielded | 270mOhm Max | 25 @ 100MHz | 1.3GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
MHQ1005P22NJTD25FIXED IND 22NH 230MA 1.1 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 22 nH | ±5% | 230 mA | - | Unshielded | 1.1Ohm Max | 20 @ 250MHz | 2.1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P30NJTD25FIXED IND 30NH 220MA 1.3 OHM SMD TDK Corporation |
0 |
|
Таблицы данных |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 30 nH | ±5% | 220 mA | - | Unshielded | 1.3Ohm Max | 20 @ 250MHz | 1.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
