Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ1005P2N4BT000FIXED IND 2.4NH 1A 60 MOHM SMD TDK Corporation |
10,634 |
|
Таблицы данных |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.4 nH | ±0.1nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 6.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLZ1608N150LTD25FIXED IND 15UH 250MA 1.02OHM SMD TDK Corporation |
9,558 |
|
Таблицы данных |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±20% | 250 mA | 55mA | Shielded | 1.02Ohm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
NLV32T-560J-EFFIXED IND 56UH 55MA 8 OHM SMD TDK Corporation |
8,276 |
|
Таблицы данных |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 55 mA | - | Unshielded | 8Ohm Max | 30 @ 2.52MHz | 13MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
.jpg)
|
MLF1608A1R2JT000FIXED IND 1.2UH 50MA 650MOHM SMD TDK Corporation |
7,885 |
|
Таблицы данных |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±5% | 50 mA | - | Shielded | 650mOhm Max | 35 @ 10MHz | 110MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

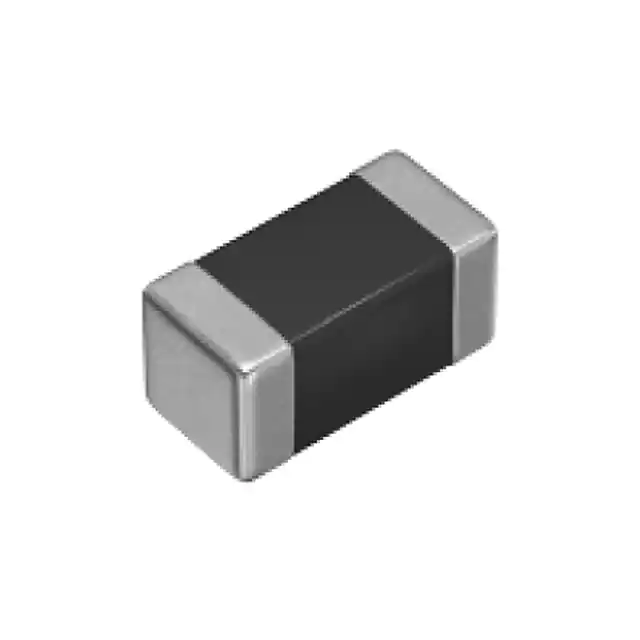

KLZ1608AHR2R2WTD25FIXED IND 2.2UH 500MA 325MOHM SM TDK Corporation |
7,747 |
|
Таблицы данных |
KLZ-HR | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 500 mA | 130mA | Shielded | 325mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 10 MHz | Soft Termination | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLZ1608M4R7WTD25FIXED IND 4.7UH 350MA 500MOHM SM TDK Corporation |
7,302 |
|
Таблицы данных |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 350 mA | 120mA | Shielded | 500mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLZ1608A1R0WTD25FIXED IND 1UH 600MA 150 MOHM SMD TDK Corporation |
6,707 |
|
Таблицы данных |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 600 mA | 190mA | Shielded | 150mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608A3R3JT000FIXED IND 3.3UH 30MA 1.3 OHM SMD TDK Corporation |
6,088 |
|
Таблицы данных |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±5% | 30 mA | - | Shielded | 1.3Ohm Max | 35 @ 10MHz | 65MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608A2R7JT000FIXED IND 2.7UH 30MA 1.15OHM SMD TDK Corporation |
5,945 |
|
Таблицы данных |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±5% | 30 mA | - | Shielded | 1.15Ohm Max | 35 @ 10MHz | 70MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MHQ1005P3N0BT000FIXED IND 3NH 900MA 80 MOHM SMD TDK Corporation |
4,305 |
|
Таблицы данных |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3 nH | ±0.1nH | 900 mA | - | Unshielded | 80mOhm Max | 23 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
