Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBU9664100LT-R07MFIXED IND 70NH 75A 0.138MOHM SMD TDK Corporation |
680 |
|
Таблицы данных |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 70 nH | ±20% | 75 A | - | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
VLBS1007083T-R18LFIXED IND 180NH 70A 0.18MOHM SMD TDK Corporation |
400 |
|
Таблицы данных |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±15% | 70 A | 56A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.327" (8.30mm) |
|
SPM10054T-2R5M-HZFIXED IND 2.2UH SMD TDK Corporation |
584 |
|
Таблицы данных |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
|
SPM10054T-1R5M-HZFIXED IND 1.5UH 20A 5.39MOHM SMD TDK Corporation |
364 |
|
Таблицы данных |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 20 A | 12A | Shielded | 5.39mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
RLF7045T-4R7N2R5-DFIXED IND 4.7UH 2.5A 36 MOHM SMD TDK Corporation |
972 |
|
Таблицы данных |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.5 A | 3.3A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|

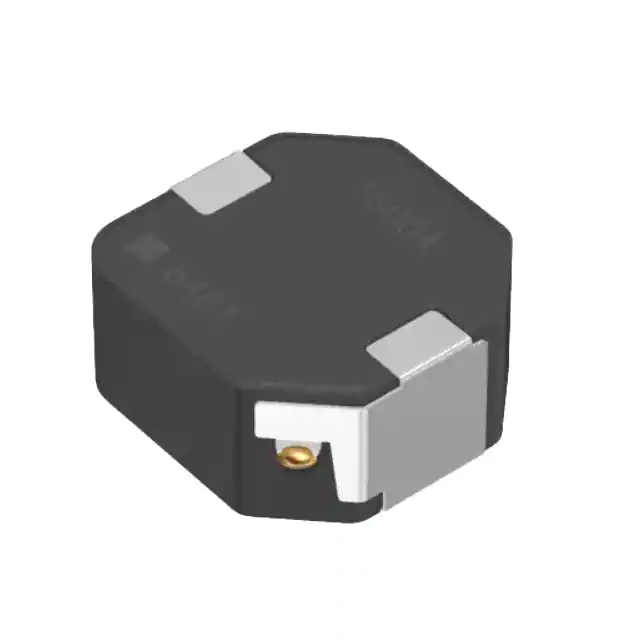

SPM12565CT-R22MINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
1,000 |
|
Таблицы данных |
SPM-CT | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 220 nH | ±20% | 29.1 A | 87.8A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
VLBU1007090T-R10LFIXED IND 100NH 70A 0.18MOHM SMD TDK Corporation |
547 |
|
Таблицы данных |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 70 A | 120A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.354" (9.00mm) |
|
|
VLBU1007090T-R12LFIXED IND 120NH 70A 0.18MOHM SMD TDK Corporation |
180 |
|
Таблицы данных |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 70 A | 110A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.354" (9.00mm) |
|
|
VLBU1007090T-R18LFIXED IND 180NH 70A 0.18MOHM SMD TDK Corporation |
580 |
|
Таблицы данных |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±15% | 70 A | 73A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.354" (9.00mm) |
|
VLBU10060120T-R47LFIXED IND 470NH 0.132MOHM SMD TDK Corporation |
466 |
|
Таблицы данных |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±15% | 83 A | 24A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
