Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSD1005C6N8JTFIXED IND 6.8NH 610MA 105MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 610 mA | - | Unshielded | 105mOhm Max | 24 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|

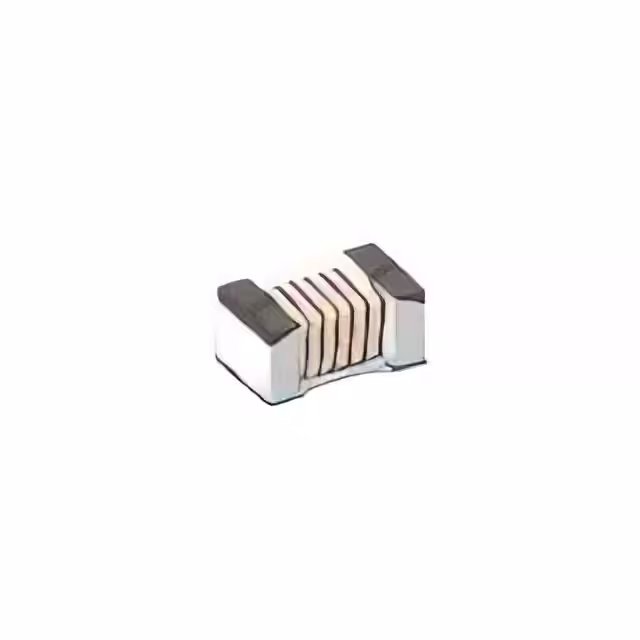

MWSD1005C2N0STFIXED IND 2NH 950MA 43 MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±0.3nH | 950 mA | - | Unshielded | 43mOhm Max | 23 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
MWSD1005C3N3BTM81FIXED IND 3.3NH 2A 30 MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M8X | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±0.1nH | 2 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 14GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.021" W (1.10mm x 0.53mm) | 0.028" (0.70mm) |
|
|
MWSD1005C2N0KTFIXED IND 2NH 950MA 43 MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±10% | 950 mA | - | Unshielded | 43mOhm Max | 23 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C9N9HTM01FIXED IND 9.9NH 540MA 140MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9.9 nH | ±3% | 540 mA | - | Unshielded | 140mOhm Max | 25 @ 250MHz | 5.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C7N6GTM81FIXED IND 7.6NH 1.7A 50MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M8X | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.6 nH | ±2% | 1.7 A | - | Unshielded | 50mOhm Max | 30 @ 250MHz | 7GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.021" W (1.10mm x 0.53mm) | 0.028" (0.70mm) |
|
|
MWSD1005C9N8GTM81FIXED IND 9.8NH 1.4A 81MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M8X | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9.8 nH | ±2% | 1.4 A | - | Unshielded | 81mOhm Max | 34 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.021" W (1.10mm x 0.53mm) | 0.028" (0.70mm) |
|
|
MWSD1005C5N1CTFIXED IND 5.1NH 620MA 100MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±0.2nH | 620 mA | - | Unshielded | 100mOhm Max | 23 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C4N7CTFIXED IND 4.7NH 570MA 120MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±0.2nH | 570 mA | - | Unshielded | 120mOhm Max | 20 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C6N9JTM81FIXED IND 6.9NH 1.42A 69MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
Таблицы данных |
MWSD-C-M8X | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.9 nH | ±5% | 1.42 A | - | Unshielded | 69mOhm Max | 32 @ 250MHz | 8.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.021" W (1.10mm x 0.53mm) | 0.028" (0.70mm) |
