Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

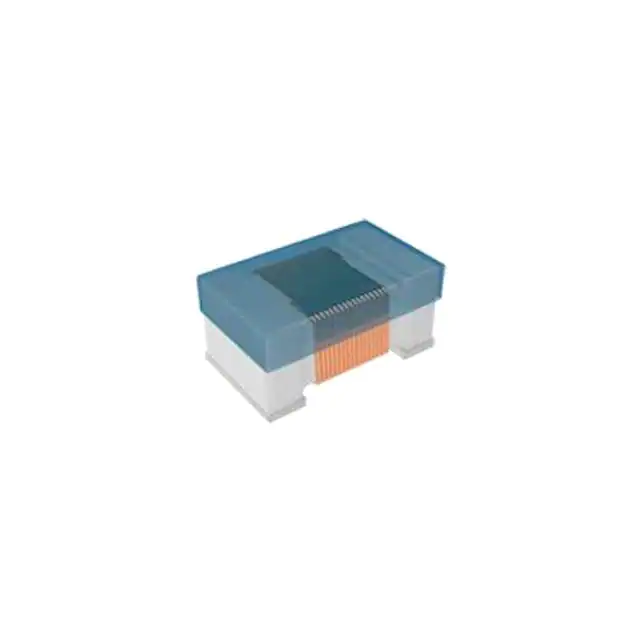

SDWL1608C22NJSTFM01FIXED IND 22NH 500MA 170MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,862 |
|
Таблицы данных |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 500 mA | - | Unshielded | 170mOhm Max | 40 @ 250MHz | 4.6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C2N2CSTFM11FIXED IND 2.2NH 1.4A 18MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,845 |
|
Таблицы данных |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.2nH | 1.4 A | - | Unshielded | 18mOhm Max | 18 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C18NGSTFM11FIXED IND 18NH 700MA 85MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,827 |
|
Таблицы данных |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 700 mA | - | Unshielded | 85mOhm Max | 42 @ 250MHz | 3.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C8N7CSTFM01FIXED IND 8.7NH 650MA 110MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
2,815 |
|
Таблицы данных |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±0.2nH | 650 mA | - | Unshielded | 110mOhm Max | 35 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C39NGSTFM01FIXED IND 39NH 400MA 260MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,717 |
|
Таблицы данных |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 400 mA | - | Unshielded | 260mOhm Max | 40 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
MPH252010S1R0MTFIXED IND 1UH 1.6A 75 MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,645 |
|
Таблицы данных |
MPH | Nonstandard | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.6 A | 1.15A | Shielded | 75mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SDWL1608CR13GSTFM01FIXED IND 130NH 170MA 1.4OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
2,636 |
|
Таблицы данных |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 130 nH | ±2% | 170 mA | - | Unshielded | 1.4Ohm Max | 32 @ 150MHz | 1.45GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
MPH252010C100MTFIXED IND 10UH 700MA 625MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
1,011 |
|
Таблицы данных |
MPH | Nonstandard | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 700 mA | 210mA | Shielded | 625mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SPH201610U2R2MTFIXED IND 2.2UH 1.23A 171MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
1,935 |
|
Таблицы данных |
SPH | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.23 A | 1.2A | Shielded | 171mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SPH201610H100MTFIXED IND 10UH 450MA 1.02OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
1,786 |
|
Таблицы данных |
SPH | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 550mA | Shielded | 1.02Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
