Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

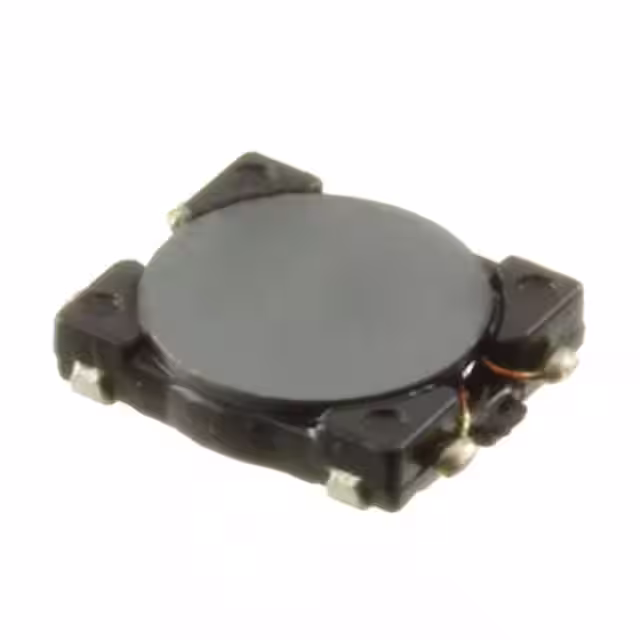

CMD5D13NP-4R7MCFIXED IND 4.7UH 1.2A 106MOHM SMD Sumida America Components Inc. |
0 |
|
Таблицы данных |
CMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.2 A | 1.5A | Unshielded | 106mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.059" (1.50mm) |
|
CDRH169RBNP-151MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 2.2 A | 2.8A | Shielded | 121mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-102MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 850 mA | 1.05A | Shielded | 760mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-681MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 1 A | 1.3A | Shielded | 520mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-101MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.9 A | 3.4A | Shielded | 79mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-221MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.9 A | 2.3A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-331MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.4 A | 1.8A | Shielded | 270mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-100MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9.2 A | 11A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-152MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 720 mA | 850mA | Shielded | 1.05Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-122MCINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±20% | 830 mA | 950mA | Shielded | 830mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
