Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCH106NP-561KFIXED IND 560UH 480MA 1.9 OHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 480 mA | - | Unshielded | 1.9Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-5R1MFIXED IND 5.1UH 4.6A 19.6MOHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.1 µH | ±20% | 4.6 A | - | Unshielded | 19.6mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-680KFIXED IND 68UH 1.4A 220 MOHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.4 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-681KFIXED IND 680UH 430MA 2.2 OHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 430 mA | - | Unshielded | 2.2Ohm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-6R3MFIXED IND 6.3UH 4.2A 23.1MOHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.3 µH | ±20% | 4.2 A | - | Unshielded | 23.1mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-7R8MFIXED IND 7.8UH 3.9A 24.8MOHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±20% | 3.9 A | - | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-820KFIXED IND 82UH 1.3A 290 MOHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-821KFIXED IND 820UH 400MA 2.6 OHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 400 mA | - | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|

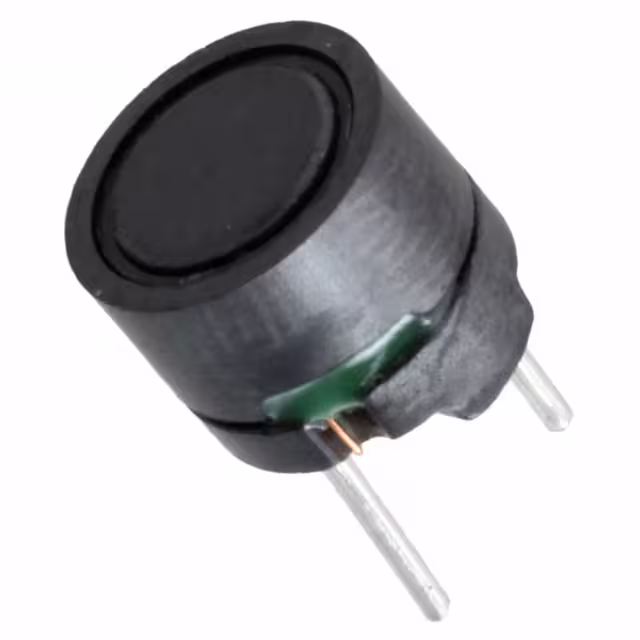

RCR875DNP-681KFIXED IND 680UH 280MA 2.07OHM TH Sumida America Components Inc. |
0 |
|
Таблицы данных |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 680 µH | ±10% | 280 mA | - | Shielded | 2.07Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
CDRH6D12NP-150NCFIXED IND 15UH 900MA 243.8 MOHM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH6D12 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 900 mA | 950mA | Shielded | 243.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.059" (1.50mm) |
