Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDMC8D28NP-1R2MCFIXED IND 1.2UH 12.9A 7 MOHM SMD Sumida America Components Inc. |
2,308 |
|
Таблицы данных |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.2 µH | ±20% | 12.9 A | 12.2A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|
|
CDMC8D28NP-1R8MCFIXED IND 1.8UH 9.3A 12.6MOHM SM Sumida America Components Inc. |
3,735 |
|
Таблицы данных |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.8 µH | ±20% | 9.3 A | 9.4A | Shielded | 12.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|
125CDMCCDS-470MCFIXED IND 47UH 4.5A 97.2MOHM SMD Sumida America Components Inc. |
2,607 |
|
Таблицы данных |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 4.5 A | 6.3A | Shielded | 97.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
CDRH104RNP-3R8NCFIXED IND 3.8UH 5.5A 13 MOHM SMD Sumida America Components Inc. |
15,427 |
|
Таблицы данных |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.8 µH | ±30% | 5.5 A | 6A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|

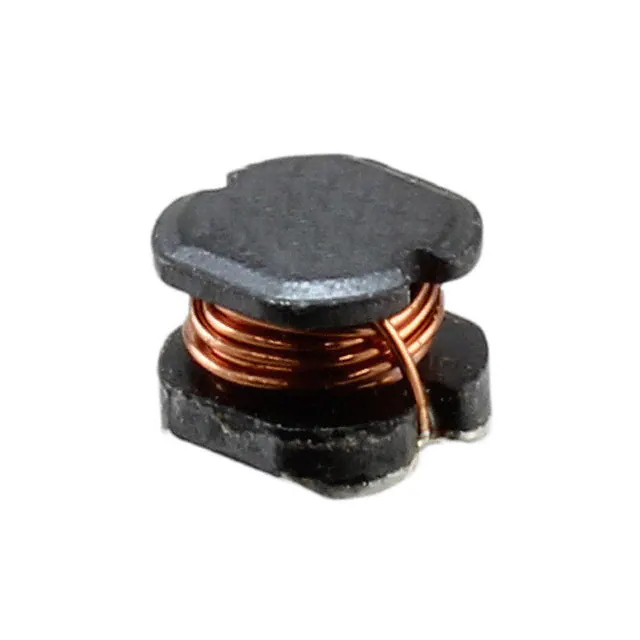

CD43NP-100MCFIXED IND 10UH 1.04A 182MOHM SMD Sumida America Components Inc. |
11,748 |
|
Таблицы данных |
CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.04 A | - | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CDRH104RNP-220NCFIXED IND 22UH 2.5A 73 MOHM SMD Sumida America Components Inc. |
11,480 |
|
Таблицы данных |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 2.5 A | 2.9A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH104RNP-5R2NCFIXED IND 5.2UH 6A 22 MOHM SMD Sumida America Components Inc. |
10,285 |
|
Таблицы данных |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.2 µH | ±30% | 6 A | 5.6A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CDRH104RNP-1R5NCFIXED IND 1.5UH 6.5A 8.1MOHM SMD Sumida America Components Inc. |
4,767 |
|
Таблицы данных |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 6.5 A | 10A | Shielded | 8.1mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CDRH104RNP-101NCFIXED IND 100UH 1.25A 304MOHM SM Sumida America Components Inc. |
2,550 |
|
Таблицы данных |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.25 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CDRH104RNP-2R5NCFIXED IND 2.5UH 6.1A 10.5MOHM SM Sumida America Components Inc. |
2,417 |
|
Таблицы данных |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.5 µH | ±30% | 6.1 A | 7.5A | Shielded | 10.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
