Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

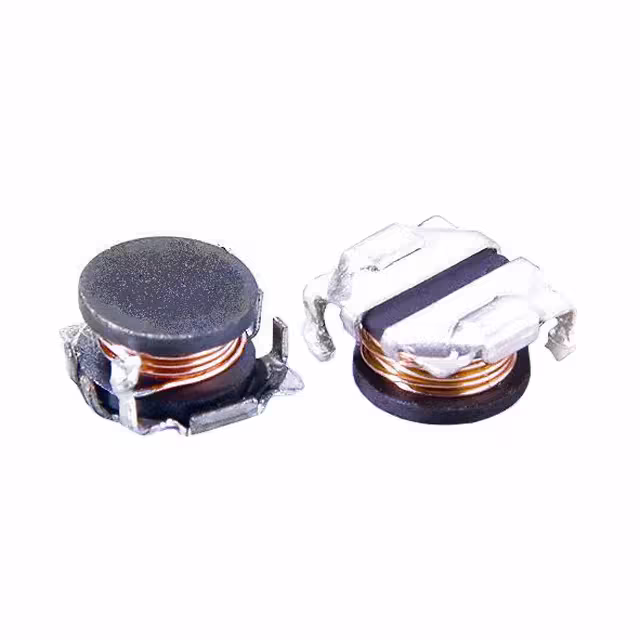

SCH53-390FIXED IND 39UH 760MA 550MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±20% | 760 mA | 640mA | Unshielded | 550mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-3R3FIXED IND 3.3UH 2.3A 88 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 2.3 A | 1.88A | Unshielded | 88mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-470FIXED IND 47UH 700MA 770MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 700 mA | 530mA | Unshielded | 770mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-4R7FIXED IND 4.7UH 2A 96 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 2 A | 1.68A | Unshielded | 96mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-560FIXED IND 56UH 580MA 870MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±20% | 580 mA | 500mA | Unshielded | 870mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-680FIXED IND 68UH 500MA 1.21OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 500 mA | 450mA | Unshielded | 1.21Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-820FIXED IND 82UH 470MA 1.34OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 470 mA | 390mA | Unshielded | 1.34Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
DRC-0608-100J-ULRADIAL INDUCTOR WITH LEADS, 10.0 Signal Transformer |
0 |
|
Таблицы данных |
DRC-0608 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 2 A | - | Unshielded | 39mOhm Max | 30 @ 2.52MHz | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.295" Dia (7.50mm) | 0.433" (11.00mm) |
|
|
FCBA1-0603F-R30JFIXED IND 300NH 100MA 3 MOHM Signal Transformer |
0 |
|
Таблицы данных |
FCBA1-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 300 nH | ±5% | 100 mA | - | Unshielded | 3Ohm Max | 24 @ 100MHz | 1GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
FCBA1-0603F-6N2JFIXED IND 6.2NH 700MA 0.11 MOHM Signal Transformer |
0 |
|
Таблицы данных |
FCBA1-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.2 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 5.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
