Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPFC-RM12-100PWR FACTOR COR RM12 PCB 100W Signal Transformer |
630 |
|
Таблицы данных |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 450 µH | ±10% | 1.2 A | 5.6A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.575" L x 1.614" W (40.00mm x 41.00mm) | 1.024" (26.00mm) |
|
|
SPFC-RM10-50PWR FACTOR COR RM10 PCB 50W Signal Transformer |
630 |
|
Таблицы данных |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 750 µH | ±10% | 900 mA | 3.9A | Shielded | 720mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
|
|
SPFC-RM14-200PWR FACTOR COR RM14 PCB 200W Signal Transformer |
630 |
|
Таблицы данных |
SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | 225 µH | ±10% | 2.4 A | 12.4A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 16 Leads | 1.693" L x 1.890" W (43.00mm x 48.00mm) | 1.260" (32.00mm) |
|
SCRH127-101FIXED IND 100UH 1.8A 220MOHM SMD Signal Transformer |
1,400 |
|
Таблицы данных |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 1.7A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CH-200FIXED IND 300UH 200A 1 MOHM CHAS Signal Transformer |
13 |
|
Таблицы данных |
- | Nonstandard | Box | Active | - | - | 300 µH | - | 200 A | - | Unshielded | 1mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 7.500" W (190.50mm x 190.50mm) | 6.252" (158.80mm) |
|
CH-1FIXED IND 100MH 1A 1.5 OHM CHASS Signal Transformer |
61 |
|
Таблицы данных |
- | Nonstandard | Box | Active | - | - | 100 mH | - | 1 A | - | Unshielded | 1.5Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 2.500" W (76.20mm x 63.50mm) | 2.500" (63.50mm) |
|

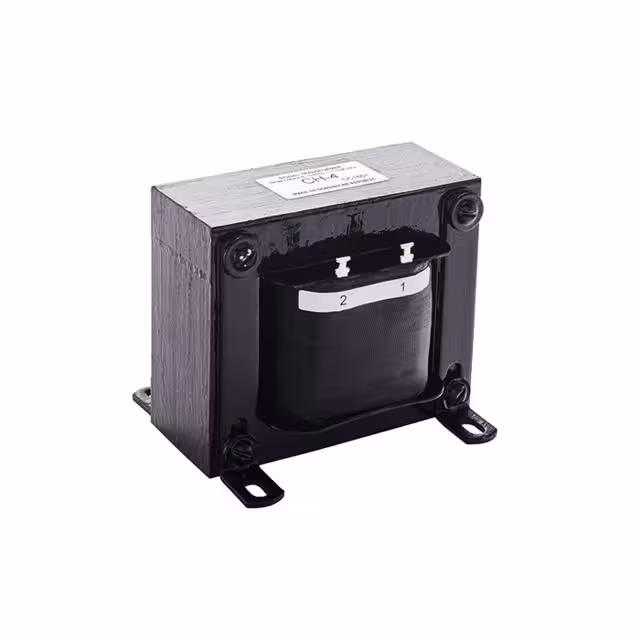

CH-4FIXED IND 70MH 4A 600 MOHM CHASS Signal Transformer |
16 |
|
Таблицы данных |
- | Nonstandard | Box | Active | - | - | 70 mH | - | 4 A | - | Unshielded | 600mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.126" W (95.30mm x 79.40mm) | 3.252" (82.60mm) |
|
CH-20FIXED IND 7MH 20A 50 MOHM CHASS Signal Transformer |
13 |
|
Таблицы данных |
- | Nonstandard | Box | Active | - | - | 7 mH | - | 20 A | - | Unshielded | 50mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | 4.437" (112.70mm) |
|
CH-6FIXED IND 40MH 6A 400 MOHM CHASS Signal Transformer |
10 |
|
Таблицы данных |
- | Nonstandard | Box | Active | - | - | 40 mH | - | 6 A | - | Unshielded | 400mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.626" W (95.30mm x 92.10mm) | 3.252" (82.60mm) |
|
SCRH125-220FIXED IND 22UH 4A 36 MOHM SMD Signal Transformer |
1,223 |
|
Таблицы данных |
SCRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 4 A | 2.8A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
