Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPFC-EFD30-150PWR FACTOR COR EFD30 PCB 150W Signal Transformer |
0 |
|
Таблицы данных |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | 375 µH | ±10% | 800 mA | 4A | Shielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Horizontal, 12 Leads | 1.181" L x 1.220" W (30.00mm x 31.00mm) | 0.551" (14.00mm) |
|
|
SPFC-EFD30-75PWR FACTOR COR EFD30 PCB 75W Signal Transformer |
0 |
|
Таблицы данных |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | 750 µH | ±10% | 900 mA | 3.3A | Shielded | 950mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Horizontal, 12 Leads | 1.181" L x 1.220" W (30.00mm x 31.00mm) | 0.551" (14.00mm) |
|
|
SPFC-RM10-100PWR FACTOR COR RM10 PCB 100W Signal Transformer |
0 |
|
Таблицы данных |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 500 µH | ±10% | 600 mA | 4A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
|
|
SPFC-RM10-75PWR FACTOR COR RM10 PCB 75W Signal Transformer |
0 |
|
Таблицы данных |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 650 µH | ±10% | 400 mA | 3.9A | Shielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
|
|
SPFC-RM10-200PWR FACTOR COR RM10 PCB 200W Signal Transformer |
0 |
|
Таблицы данных |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 250 µH | ±10% | 1.1 A | 5.6A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
|
|
SPFC-RM12-200PWR FACTOR COR RM12 PCB 200W Signal Transformer |
0 |
|
Таблицы данных |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 200 µH | ±10% | 1.4 A | 8.4A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.575" L x 1.614" W (40.00mm x 41.00mm) | 1.024" (26.00mm) |
|
|
SPFC-RM14-250PWR FACTOR COR RM14 PCB 250W Signal Transformer |
0 |
|
Таблицы данных |
SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | 180 µH | ±10% | 3 A | 13.2A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 16 Leads | 1.693" L x 1.890" W (43.00mm x 48.00mm) | 1.260" (32.00mm) |
|

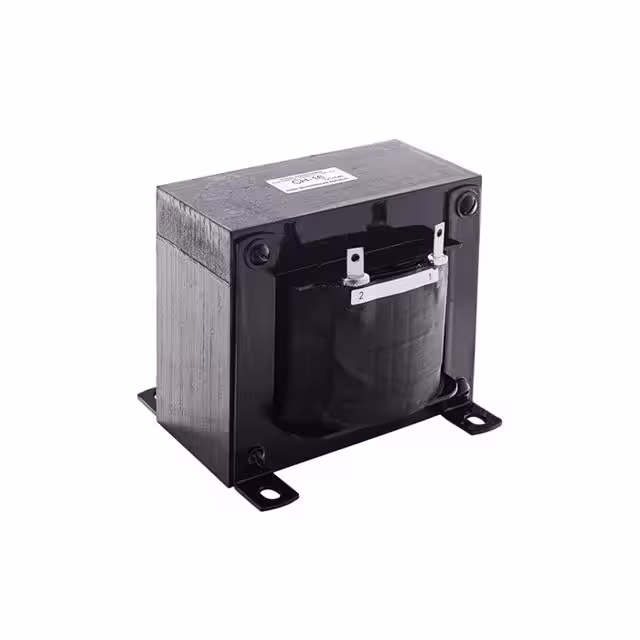

CH-16FIXED IND 15MH 16A 80 MOHM CHASS Signal Transformer |
0 |
|
Таблицы данных |
- | Nonstandard | Box | Active | - | - | 15 mH | - | 16 A | - | Unshielded | 80mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.626" W (133.40mm x 117.50mm) | 4.437" (112.70mm) |
|

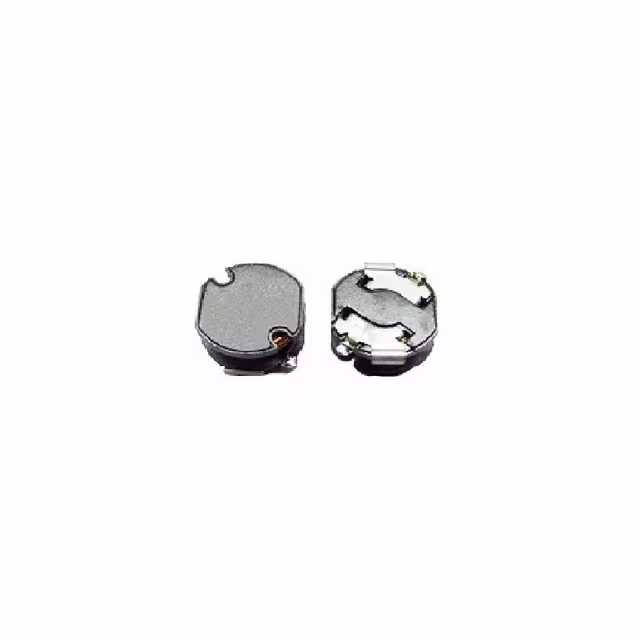

SC10F-100FIXED IND 10UH 4.5A 47 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4.5 A | 2.6A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
|
|
SC10F-102FIXED IND 1MH 440MA 2.8 OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 440 mA | 310mA | Unshielded | 2.8Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
