Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCEP147H-R30FIXED IND 300NH 23A 2.1 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±30% | 23 A | 70A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
HTTI-1000-1.6TOROIDAL IND HI TEMP 1000UH 1.6A Signal Transformer |
0 |
|
Таблицы данных |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 1 mH | ±15% | 1.6 A | - | Shielded | 430mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-820-1.7TOROIDAL IND HI TEMP 820UH 1.7AD Signal Transformer |
0 |
|
Таблицы данных |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 820 µH | ±15% | 1.7 A | - | Shielded | 390mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|

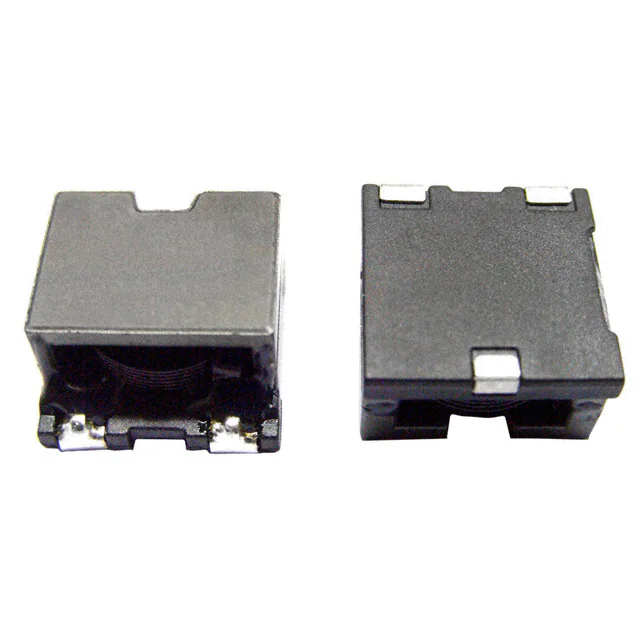

SCEP147L-100FIXED IND 10UH 10.2A 9.85MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 10.2 A | 9.2A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-120FIXED IND 12UH 9A 13.3 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 9 A | 8A | Shielded | 13.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-1R1FIXED IND 1.1UH 22A 2.65MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.1 µH | ±20% | 22 A | 26.4A | Shielded | 2.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-2R0FIXED IND 2UH 19.5A 3.5 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±20% | 19.5 A | 19.6A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-3R1FIXED IND 3.1UH 16.2A 3.9MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.1 µH | ±20% | 16.2 A | 16A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-4R5FIXED IND 4.5UH 14A 5.5 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.5 µH | ±20% | 14 A | 13.6A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-6R1FIXED IND 6.4UH 13.5A 7.5MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.4 µH | ±20% | 13.5 A | 11.6A | Shielded | 7.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
