Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP0750-R82FIXED IND 820NH 15A 7.5 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±20% | 15 A | 18A | Unshielded | 7.5mOhm | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.197" (5.00mm) |
|

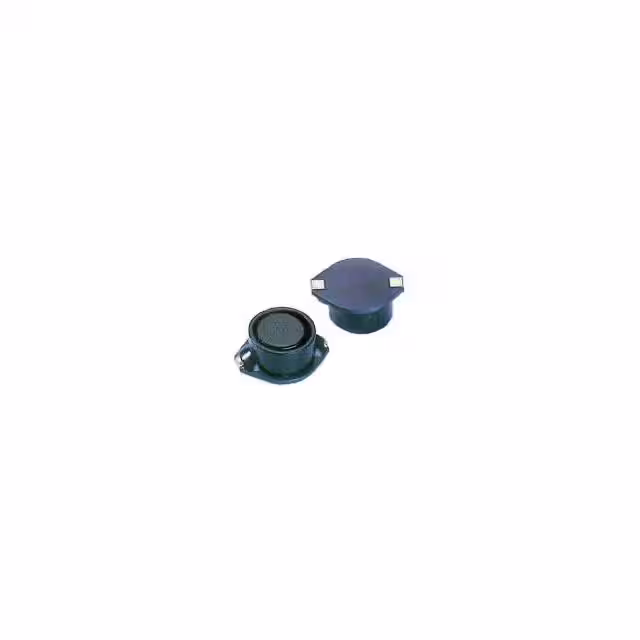

SC5022C-100FIXED IND 10UH 5A 40 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 8A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-101FIXED IND 100UH 1.8A 207MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 2.4A | Shielded | 207mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-102FIXED IND 1MH 540MA 2.01 OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 540 mA | 800mA | Shielded | 2.01Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-150FIXED IND 15UH 4A 48 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4 A | 7A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-151FIXED IND 150UH 1.5A 293MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.5 A | 2.1A | Shielded | 293mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-221FIXED IND 220UH 1.2A 470MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 1.2 A | 1.9A | Shielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-331FIXED IND 330UH 900MA 780MOHM SM Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 900 mA | 1.1A | Shielded | 780mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-470FIXED IND 47UH 2.8A 97 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.8 A | 4A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|
SC5022C-471FIXED IND 470UH 800MA 1.08OHM SM Signal Transformer |
0 |
|
Таблицы данных |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 800 mA | 1.1A | Shielded | 1.08Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
