Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

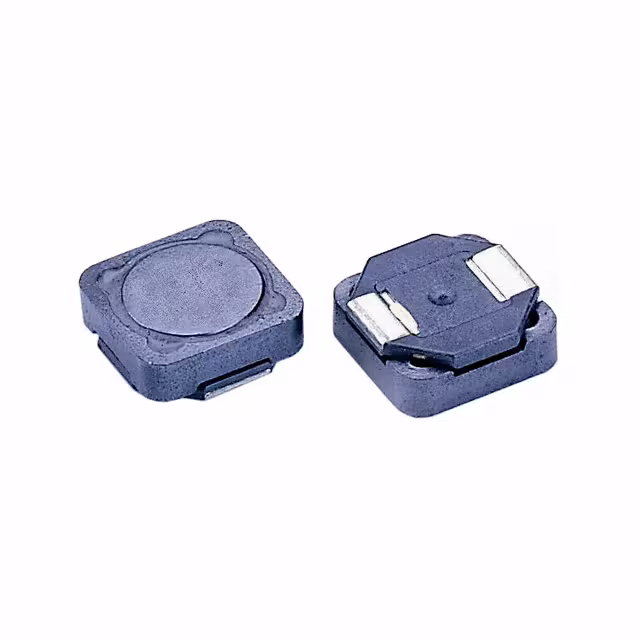

SCRH124B-560FIXED IND 56UH 1.77A 190MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCRH124B | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1.77 A | 1.8A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.189" (4.80mm) |
|
|
SCRH124B-680FIXED IND 68UH 1.6A 220 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCRH124B | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.6 A | 1.5A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.189" (4.80mm) |
|
|
SCRH124B-6R8FIXED IND 6.8UH 4.8A 30 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCRH124B | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 4.8 A | 4.9A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.189" (4.80mm) |
|
SC5022F-100FIXED IND 10UH 5.2A 31 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.2 A | 10A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
SC5022F-150FIXED IND 15UH 4.5A 36 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 4.5 A | 8A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
SC5022F-151FIXED IND 150UH 1.6A 250MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1.6 A | 2.6A | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
SC5022F-1R0FIXED IND 1UH 10.5A 9 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 10.5 A | 20A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
SC5022F-220FIXED IND 22UH 3.9A 47 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.9 A | 7A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
SC5022F-221FIXED IND 220UH 1.2A 380MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
SC5022F-2R2FIXED IND 2.2UH 9A 14 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±30% | 9 A | 16A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
