Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

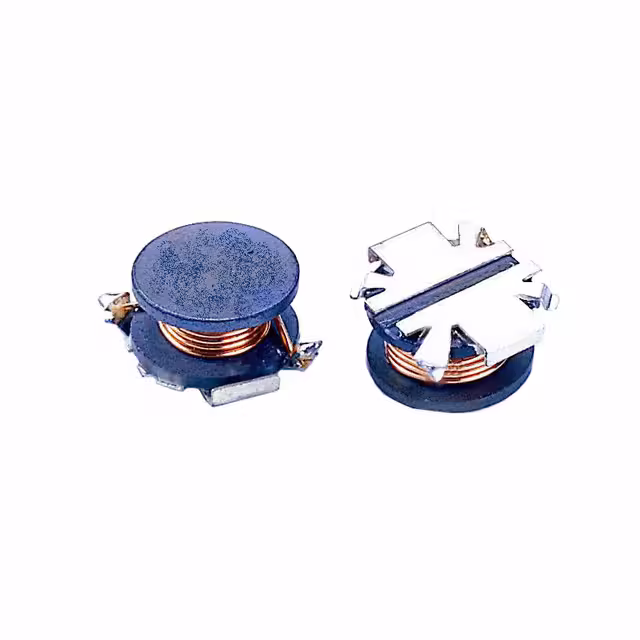

SCH114-391FIXED IND 390UH 620MA 1.3OHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±10% | 620 mA | 620mA | Unshielded | 1.3Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-3R9FIXED IND 3.9UH 4.7A 37 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±30% | 4.7 A | 5.5A | Unshielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-470FIXED IND 47UH 1.8A 175 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.8 A | 2A | Unshielded | 175mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-471FIXED IND 470UH 500MA 1.56OHM SM Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | 500 mA | 600mA | Unshielded | 1.56Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-4R7FIXED IND 4.7UH 4.5A 44 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 4.5 A | 5.1A | Unshielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-560FIXED IND 56UH 1.7A 194 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 1.7 A | 1.9A | Unshielded | 194mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-5R6FIXED IND 5.6UH 4.1A 48 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±30% | 4.1 A | 4.8A | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-680FIXED IND 68UH 1.58A 241MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±10% | 1.58 A | 1.7A | Unshielded | 241mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-6R8FIXED IND 6.8UH 3.7A 54 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 3.7 A | 4.5A | Unshielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-820FIXED IND 82UH 1.4A 289 MOHM SMD Signal Transformer |
0 |
|
Таблицы данных |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±10% | 1.4 A | 1.45A | Unshielded | 289mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
