Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

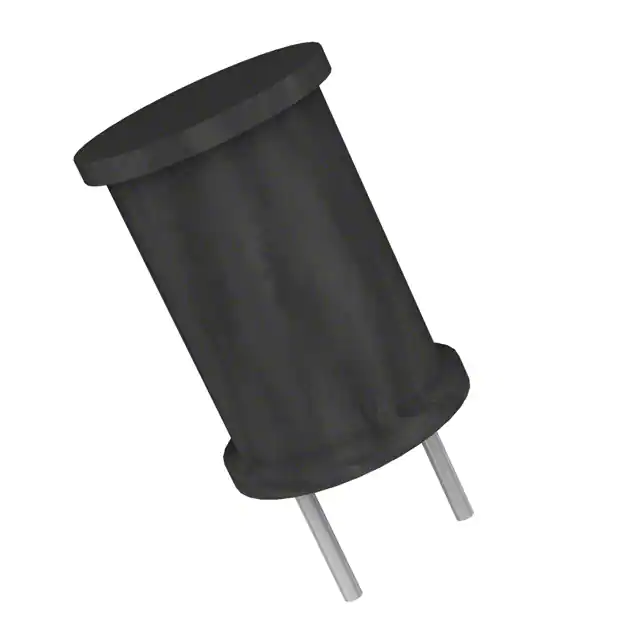

AIUR-02H-4R7MFIXED IND 4.7UH 2.5A 34 MOHM TH Abracon LLC |
0 |
|
Таблицы данных |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.5 A | 4.6A | Unshielded | 34mOhm Max | 15 @ 7.96MHz | - | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.831" (21.10mm) |
|
AIMC-0402HQ-10NH-TFIXED IND 10NH 500MA 180MOHM SMD Abracon LLC |
0 |
|
Таблицы данных |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±3% | 500 mA | - | Unshielded | 180mOhm Max | 22 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-11NH-TFIXED IND 11NH 500MA 200MOHM SMD Abracon LLC |
0 |
|
Таблицы данных |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 11 nH | ±3% | 500 mA | - | Unshielded | 200mOhm Max | 22 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-15NH-TFIXED IND 15NH 430MA 220MOHM SMD Abracon LLC |
0 |
|
Таблицы данных |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±3% | 430 mA | - | Unshielded | 220mOhm Max | 22 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-2N0C-TFIXED IND 2NH 800MA 70 MOHM SMD Abracon LLC |
0 |
|
Таблицы данных |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.2nH | 800 mA | - | Unshielded | 70mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-2N9C-TFIXED IND 2.9NH 700MA 90MOHM SMD Abracon LLC |
0 |
|
Таблицы данных |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.9 nH | ±0.2nH | 700 mA | - | Unshielded | 90mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-5N6C-TFIXED IND 5.6NH 600MA 130MOHM SM Abracon LLC |
0 |
|
Таблицы данных |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.2nH | 600 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-8N7J-TFIXED IND 8.7NH 500MA 170MOHM SM Abracon LLC |
0 |
|
Таблицы данных |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.7 nH | ±5% | 500 mA | - | Unshielded | 170mOhm Max | 22 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
ASMCI-0603-4R7N-TFIXED IND 4.7UH 100MA 600MOHM SM Abracon LLC |
0 |
|
Таблицы данных |
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±30% | 100 mA | - | Shielded | 600mOhm | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ASMCI-0603-R10N-TFIXED IND 100NH 700MA 140MOHM SM Abracon LLC |
0 |
|
Таблицы данных |
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±30% | 700 mA | - | Shielded | 140mOhm | - | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
