Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

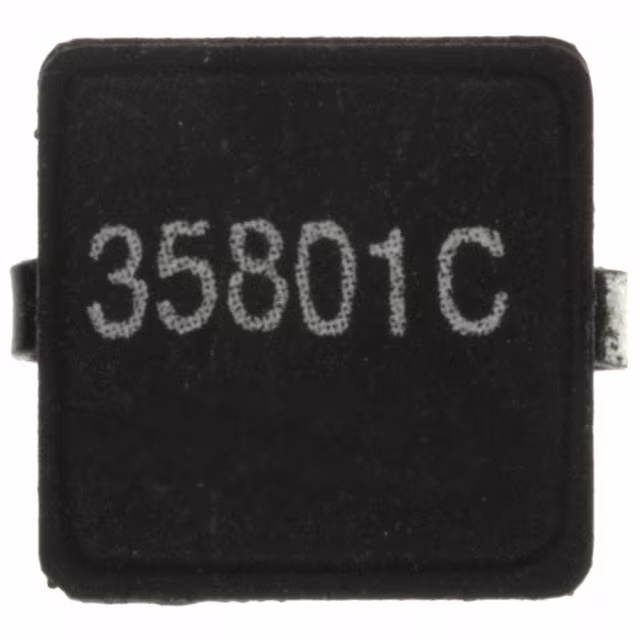

35801CFIXED IND 800NH 9.5A 10 MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 800 nH | ±25% | 9.5 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|

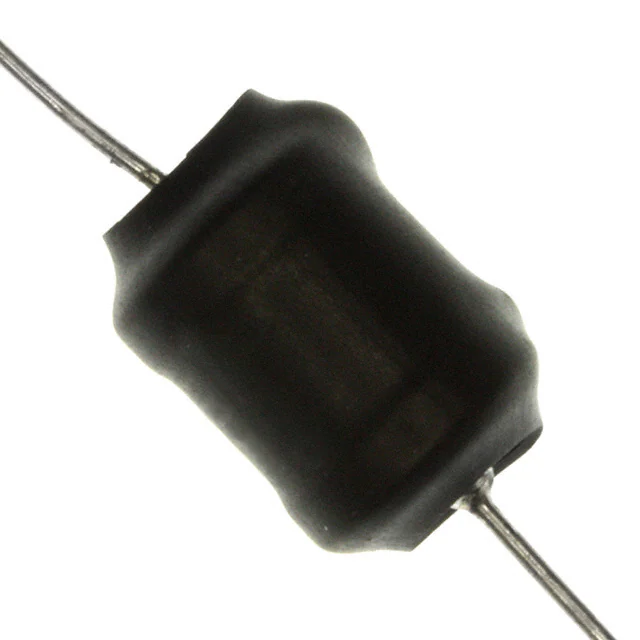

18473CFIXED IND 47UH 1.65A 55 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 47 µH | ±10% | 1.65 A | - | Unshielded | 55mOhm Max | 55 @ 500kHz | 8.5MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18334CFIXED IND 330UH 730MA 335MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 330 µH | ±10% | 730 mA | - | Unshielded | 335mOhm Max | 58 @ 100kHz | 3MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18224CFIXED IND 220UH 900MA 230MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 220 µH | ±10% | 900 mA | - | Unshielded | 230mOhm Max | 46 @ 100kHz | 3.5MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18223CFIXED IND 22UH 2.42A 25 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 22 µH | ±10% | 2.42 A | - | Unshielded | 25mOhm Max | 59 @ 500kHz | 11.8MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18153CFIXED IND 15UH 3A 18 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 15 µH | ±10% | 3 A | - | Unshielded | 18mOhm Max | 55 @ 500kHz | 15.9MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18105CFIXED IND 1MH 440MA 1 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 1 mH | ±10% | 440 mA | - | Unshielded | 1Ohm Max | 94 @ 50kHz | 1.6MHz | - | 0°C ~ 70°C | 50 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18104CFIXED IND 100UH 1.2A 100 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 40 @ 100kHz | 7.4MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18103CFIXED IND 10UH 3.45A 15 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 10 µH | ±10% | 3.45 A | - | Unshielded | 15mOhm Max | 64 @ 500kHz | 19MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18106CFIXED IND 10MH 130MA 12 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800 | Axial | Tray | Obsolete | Wirewound | - | 10 mH | ±10% | 130 mA | - | Unshielded | 12Ohm Max | 143 @ 40kHz | 500kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
