Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

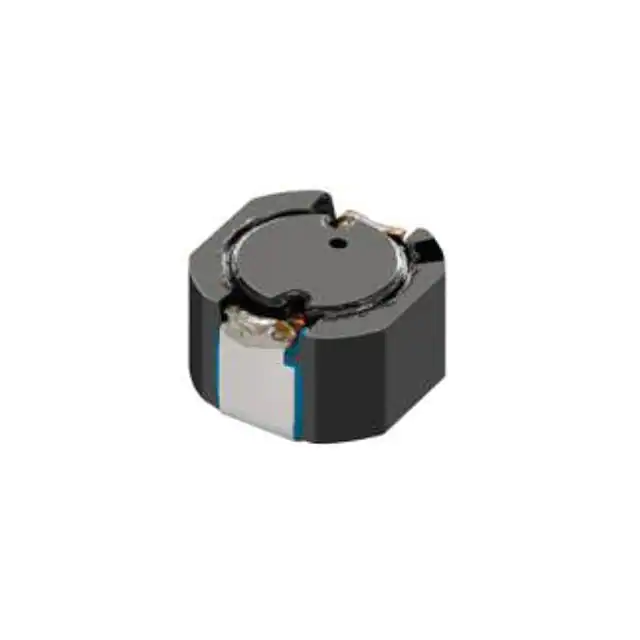

B1135AS-150M=P3FIXED IND 15UH 2.5A 64 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 2A | Shielded | 64mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-101M=P3FIXED IND 100UH 1.1A 330MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 790mA | Shielded | 330mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|

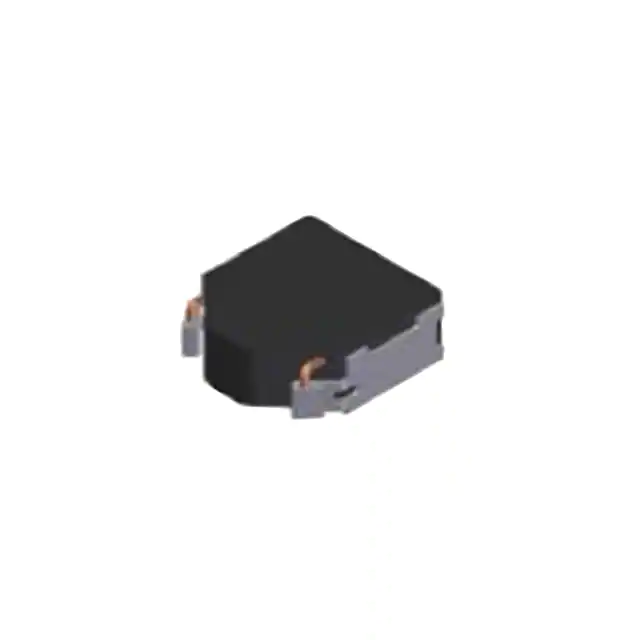

FDSD0420-H-R68M=P3FIXED IND 680NH 6.5A 22MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | 6.5 A | 8.3A | Shielded | 22mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|

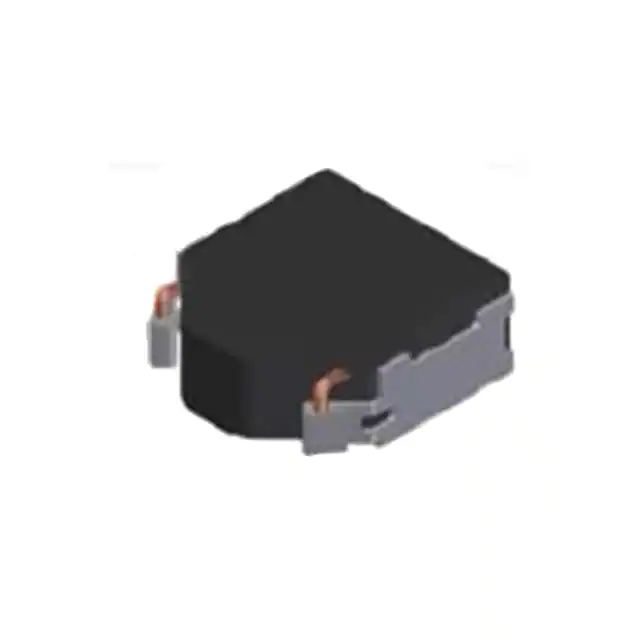

FDSD0630-H-R68M=P3FIXED IND 680NH 9.61A 8.6MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | 9.61 A | 17A | Shielded | 8.6mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

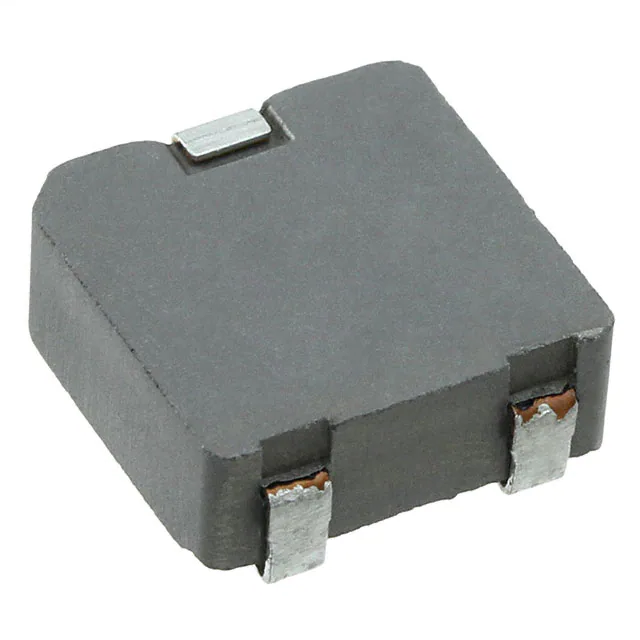

FDA1254-H-3R3M=P3FIXED IND 3.3UH 11.5A 7 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDA1254 | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 11.5 A | 13.1A | Shielded | 7mOhm | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.496" W (12.90mm x 12.60mm) | 0.213" (5.40mm) |
|
#A916CY-3R3M=P3FIXED IND 3.3UH 3.52A 26MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
D63CB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 3.52 A | - | Shielded | 26mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|

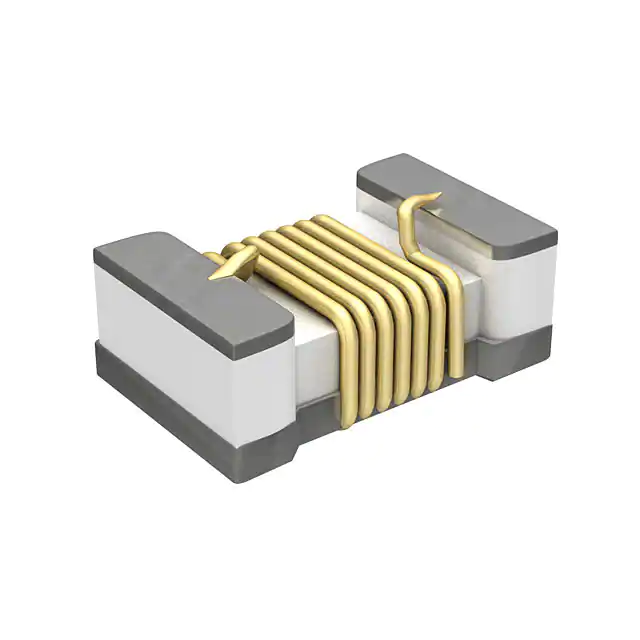

LQW04CA60NK00DFIXED IND 60NH 620MA 180MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 60 nH | ±10% | 620 mA | - | Unshielded | 180mOhm Max | - | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CA90NK00DFIXED IND 90NH 520MA 240MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 90 nH | ±10% | 520 mA | - | Unshielded | 240mOhm Max | - | 2.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR12K00DFIXED IND 120NH 510MA 280MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 510 mA | - | Unshielded | 280mOhm Max | - | 2.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR29K00DFIXED IND 290NH 270MA 940MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 290 nH | ±10% | 270 mA | - | Unshielded | 940mOhm Max | - | 1.4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
