Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43NH820J03LFIXED IND 82UH 165MA 2.04OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 165 mA | - | Unshielded | 2.04Ohm Max | 35 @ 1MHz | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NH8R2J03LFIXED IND 8.2UH 530MA 216MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 530 mA | - | Unshielded | 216mOhm Max | 30 @ 1MHz | 27MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
FDSD0420-H-100M=P3FIXED IND 10UH 1.7A 200 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.7 A | 2.5A | Shielded | 200mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420-H-1R0M=P3FIXED IND 1UH 5.1A 29 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5.1 A | 6.8A | Shielded | 29mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420-H-1R5M=P3FIXED IND 1.5UH 4.3A 36 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 4.3 A | 5.7A | Shielded | 36mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420-H-2R2M=P3FIXED IND 2.2UH 3.6A 47 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.6 A | 4.1A | Shielded | 47mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420-H-3R3M=P3FIXED IND 3.3UH 2.9A 71 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.9 A | 3.7A | Shielded | 71mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420-H-6R8M=P3FIXED IND 6.8UH 1.9A 150MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.9 A | 2.7A | Shielded | 150mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
B1134AS-100M=P3EMC Murata Electronics |
0 |
|
- |
DS84LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 10 µH | ±20% | 2.7 A | 3.5A | Shielded | 57mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.157" (4.00mm) |
|

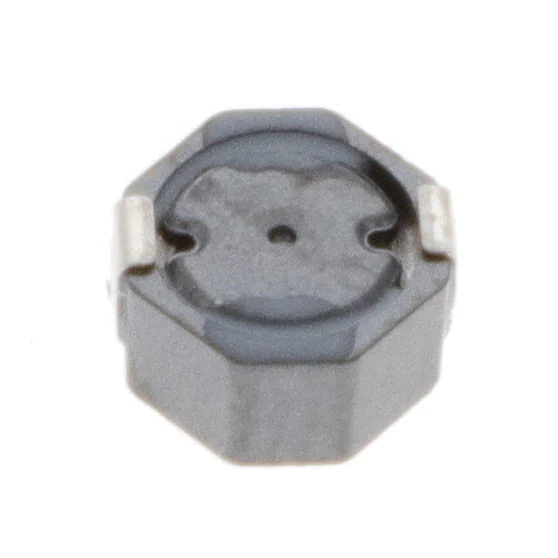

#A915AY-6R8M=P3FIXED IND 6.8UH 1.65A 0.068OHM Murata Electronics |
0 |
|
Таблицы данных |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.51A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
