Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

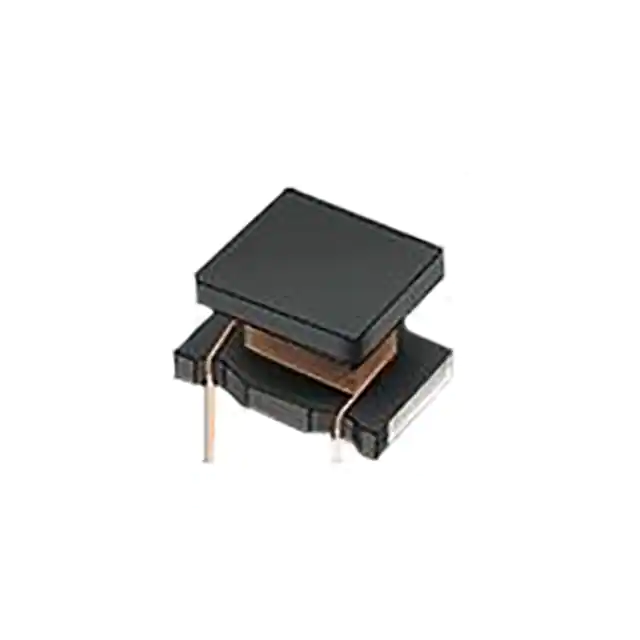

LQH32NZ2R7K23LFIXED IND 2.7UH 320MA 900MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 320 mA | - | Unshielded | 900mOhm Max | 20 @ 1MHz | 43MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ680J23LFIXED IND 68UH 80MA 5.5 OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 80 mA | - | Unshielded | 5.5Ohm Max | 40 @ 1MHz | 9MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ4R7K23LFIXED IND 4.7UH 270MA 1.2OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 270 mA | - | Unshielded | 1.2Ohm Max | 20 @ 1MHz | 31MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ1R8K23LFIXED IND 1.8UH 390MA 700MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 390 mA | - | Unshielded | 700mOhm Max | 20 @ 1MHz | 60MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ271J23LFIXED IND 270UH 65MA 12.5OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 65 mA | - | Unshielded | 12.5Ohm Max | 40 @ 796kHz | 5MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ470J23LFIXED IND 47UH 100MA 4.3 OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 100 mA | - | Unshielded | 4.3Ohm Max | 40 @ 1MHz | 11MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ220J23LFIXED IND 22UH 150MA 2.8 OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 150 mA | - | Unshielded | 2.8Ohm Max | 35 @ 1MHz | 14MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ330J23LFIXED IND 33UH 115MA 3.5 OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 115 mA | - | Unshielded | 3.5Ohm Max | 40 @ 1MHz | 12MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ180J23LFIXED IND 18UH 165MA 2.5 OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 165 mA | - | Unshielded | 2.5Ohm Max | 35 @ 1MHz | 15MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ3R3K23LFIXED IND 3.3UH 300MA 1 OHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 300 mA | - | Unshielded | 1Ohm Max | 20 @ 1MHz | 38MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
