Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

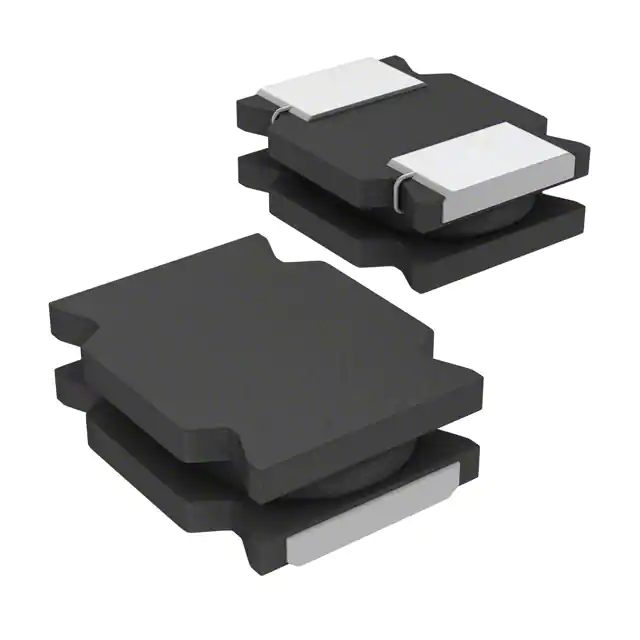

LQH2MCN3R3M52LFIXED IND 3.3UH 360MA 962MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 360 mA | - | Unshielded | 962mOhm Max | - | 110MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
LQH32PN1R5NN0LFIXED IND 1.5UH 1.75A 68.4 MOHM Murata Electronics |
0 |
|
Таблицы данных |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.75 A | 1.75A | Shielded | 68.4mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LQH2MPZ1R5NGRLFIXED IND 1.5UH 790MA 384MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 790 mA | 1.33A | Shielded | 384mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQH2MPZ3R3MGRLFIXED IND 3.3UH 640MA 564MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 640 mA | 1.02A | Shielded | 564mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
LQH44NN150K03LFIXED IND 15UH 1.1A 130 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH44 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.1 A | - | Unshielded | 130mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" (4.50mm) |
|
|
LQH44NN151K03LFIXED IND 150UH 260MA 1.196 OHM Murata Electronics |
0 |
|
Таблицы данных |
LQH44 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 260 mA | - | Unshielded | 1.196Ohm Max | - | 5.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" (4.50mm) |
|
|
LQH44NN1R0M03LFIXED IND 1UH 3.3A 15.6 MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH44 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.3 A | - | Unshielded | 15.6mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" (4.50mm) |
|
|
LQH44NN1R5M03LFIXED IND 1.5UH 3.2A 20.8MOHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH44 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.2 A | - | Unshielded | 20.8mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" (4.50mm) |
|
|
LQH44NN220K03LFIXED IND 22UH 950MA 221MOHM SMD Murata Electronics |
0 |
|
Таблицы данных |
LQH44 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 950 mA | - | Unshielded | 221mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" (4.50mm) |
|
|
LQH44NN221K03LFIXED IND 220UH 210MA 1.56OHM SM Murata Electronics |
0 |
|
Таблицы данных |
LQH44 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 210 mA | - | Unshielded | 1.56Ohm Max | - | 3.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.177" (4.50mm) |
