Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN2N5B00DFIXED IND 2.5NH 850MA 0.05OHM SM Murata Electronics |
24,192 |
|
Таблицы данных |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.5 nH | ±0.1nH | 850 mA | - | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN82NG00DFIXED IND 82NH 130MA 2.24OHM SMD Murata Electronics |
23,630 |
|
Таблицы данных |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 82 nH | ±2% | 130 mA | - | Unshielded | 2.24Ohm Max | 20 @ 150MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LQW18ANR11G00DFIXED IND 110NH 200MA 1.2OHM SMD Murata Electronics |
23,523 |
|
Таблицы данных |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 110 nH | ±2% | 200 mA | - | Unshielded | 1.2Ohm Max | 32 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ANR12G00DFIXED IND 120NH 180MA 1.3OHM SMD Murata Electronics |
23,282 |
|
Таблицы данных |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 120 nH | ±2% | 180 mA | - | Unshielded | 1.3Ohm Max | 32 @ 150MHz | 1.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

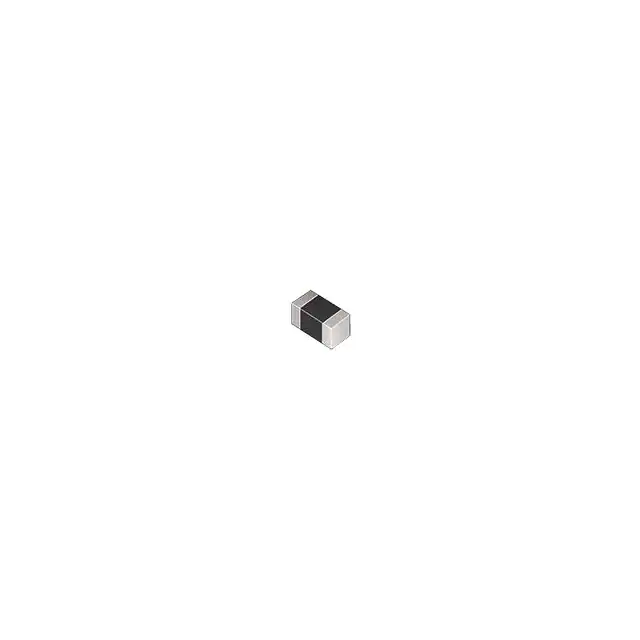

LQM18DN220M70LFIXED IND 22UH 200MA Murata Electronics |
22,187 |
|
Таблицы данных |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 200 mA | 50mA | Shielded | 3.12Ohm Max | - | 15MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18AN68NG00DFIXED IND 68NH 340MA 0.38OHM SMD Murata Electronics |
22,185 |
|
Таблицы данных |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 68 nH | ±2% | 340 mA | - | Unshielded | 380mOhm Max | 38 @ 200MHz | 2.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW15AN8N7G00DFIXED IND 8.7NH 540MA 0.14OHM SM Murata Electronics |
21,796 |
|
Таблицы данных |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.7 nH | ±2% | 540 mA | - | Unshielded | 140mOhm Max | 25 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN40NG00DFIXED IND 40NH 250MA 0.7OHM SMD Murata Electronics |
21,427 |
|
Таблицы данных |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 40 nH | ±2% | 250 mA | - | Unshielded | 700mOhm Max | 25 @ 250MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LQW15AN3N0B00DFIXED IND 3NH 750MA 0.07OHM SMD Murata Electronics |
21,425 |
|
Таблицы данных |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3 nH | ±0.1nH | 750 mA | - | Unshielded | 70mOhm Max | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW18AN43NG00DFIXED IND 43NH 380MA 0.29OHM SMD Murata Electronics |
20,924 |
|
Таблицы данных |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 43 nH | ±2% | 380 mA | - | Unshielded | 290mOhm Max | 40 @ 200MHz | 2.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
