Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQP03TN6N8J02DFIXED IND 6.8NH 300MA 600MOHM SM Murata Electronics |
58,097 |
|
Таблицы данных |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 6.8 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 14 @ 500MHz | 3.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
LQP03TG4N7H02DFIXED IND 4.7NH 250MA 720MOHM SM Murata Electronics |
56,797 |
|
Таблицы данных |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 4.7 nH | ±3% | 250 mA | - | Unshielded | 720mOhm Max | 12 @ 500MHz | 6.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|

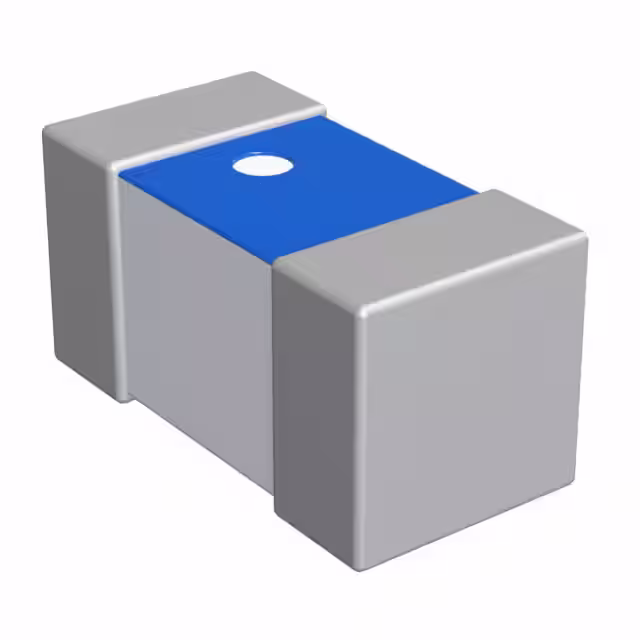

LQP03PN3N9C02DFIXED IND 3.9NH 1A 100 MOHM SMD Murata Electronics |
47,855 |
|
Таблицы данных |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.9 nH | ±0.2nH | 700 mA | - | Unshielded | 100mOhm Max | 10 @ 500MHz | 4.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
LQG15HN1N5C02DFIXED IND 1.5NH 1A 0.08OHM SMD Murata Electronics |
45,218 |
|
Таблицы данных |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.5 nH | ±0.2nH | 1 A | - | Unshielded | 80mOhm Max | - | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ2N1S02DFIXED IND 2.1NH 1A 0.06OHM SMD Murata Electronics |
43,059 |
|
Таблицы данных |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.1 nH | ±0.3nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQP03TN2N7BZ2DFIXED IND 2.7NH 500MA 200MOHM SM Murata Electronics |
40,802 |
|
Таблицы данных |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 2.7 nH | ±0.1nH | 500 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQG15HSR22H02DFIXED IND 220NH 120MA 3.77OHM SM Murata Electronics |
40,000 |
|
Таблицы данных |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 220 nH | ±3% | 120 mA | - | Unshielded | 3.77Ohm Max | - | 450MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQP03TG15NH02DFIXED IND 15NH 170MA 1.9 OHM SMD Murata Electronics |
39,850 |
|
Таблицы данных |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 15 nH | ±3% | 170 mA | - | Unshielded | 1.9Ohm Max | 11 @ 500MHz | 3.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LQP03TQ12NH02DFIXED IND 12NH 250MA 690MOHM SMD Murata Electronics |
37,060 |
|
Таблицы данных |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Not For New Designs | Thick Film | Non-Magnetic | 12 nH | ±3% | 250 mA | - | Unshielded | 690mOhm Max | 17 @ 500MHz | 3.7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.32mm) |
|
|
LQP03TG3N3C02DFIXED IND 3.3NH 400MA 320MOHM SM Murata Electronics |
34,552 |
|
Таблицы данных |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.3 nH | ±0.2nH | 400 mA | - | Unshielded | 320mOhm Max | 13 @ 500MHz | 9.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
