Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBT-0240TFFIXED IND 40UH 500MA 0.034OHM TH KEMET |
0 |
|
Таблицы данных |
SBT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 40 µH | ±35% | 500 mA | - | Unshielded | 34mOhm Max | - | - | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.295" L x 0.118" W (7.50mm x 3.00mm) | 0.343" (8.70mm) |
|
|
SBT-0260TFFIXED IND 60UH 500MA 0.05OHM TH KEMET |
0 |
|
Таблицы данных |
SBT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 60 µH | ±35% | 500 mA | - | Unshielded | 50mOhm Max | - | - | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.295" L x 0.118" W (7.50mm x 3.00mm) | 0.343" (8.70mm) |
|
|
SBT-0208TFIXED IND 8UH 500MA 0.02OHM TH KEMET |
0 |
|
Таблицы данных |
SBT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 8 µH | ±50% | 500 mA | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.295" L x 0.118" W (7.50mm x 3.00mm) | 0.343" (8.70mm) |
|
|

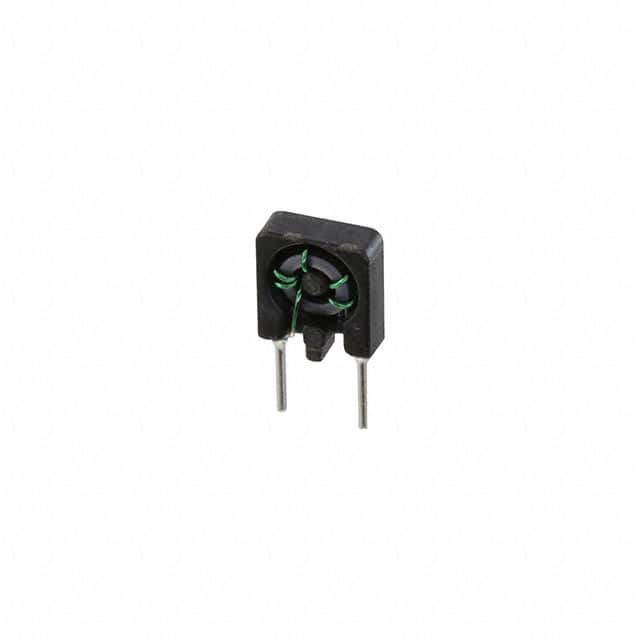

SBT-0210TFIXED IND 10UH 500MA 0.02OHM TH KEMET |
0 |
|
Таблицы данных |
SBT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 10 µH | ±50% | 500 mA | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.295" L x 0.118" W (7.50mm x 3.00mm) | 0.343" (8.70mm) |
|
|
SBT-0208TFFIXED IND 8UH 500MA 0.02OHM TH KEMET |
0 |
|
Таблицы данных |
SBT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 8 µH | ±50% | 500 mA | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.295" L x 0.118" W (7.50mm x 3.00mm) | 0.343" (8.70mm) |
|
SBCP-47HY471BFIXED IND 470UH 220MA 2.8 OHM TH KEMET |
0 |
|
Таблицы данных |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 220 mA | 230mA | Unshielded | 2.8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
SBC3-6R8-392FIXED IND 6.8UH 3.9A 30 MOHM TH KEMET |
0 |
|
Таблицы данных |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.9 A | 4A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
|
SBC4-221-721FIXED IND 220UH 720MA 470MOHM TH KEMET |
0 |
|
Таблицы данных |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 720 mA | 1A | Unshielded | 470mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
|
SBC9-221-821FIXED IND 220UH 820MA 410MOHM TH KEMET |
0 |
|
Таблицы данных |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 820 mA | 2A | Unshielded | 410mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
|
SBC9-330-252FIXED IND 33UH 2.5A 60 MOHM TH KEMET |
0 |
|
Таблицы данных |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 5.2A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
