Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9229NLTFIXED IND 560UH 530MA 1.623 OHM iNRCORE, LLC |
0 |
|
Таблицы данных |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 530 mA | 540mA | Shielded | 1.623Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL8142FIXED IND 72.9UH 2.6A 133MOHM SM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 72.9 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
PL8142NLFIXED IND 72.9UH 2.6A 133MOHM SM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 72.9 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|

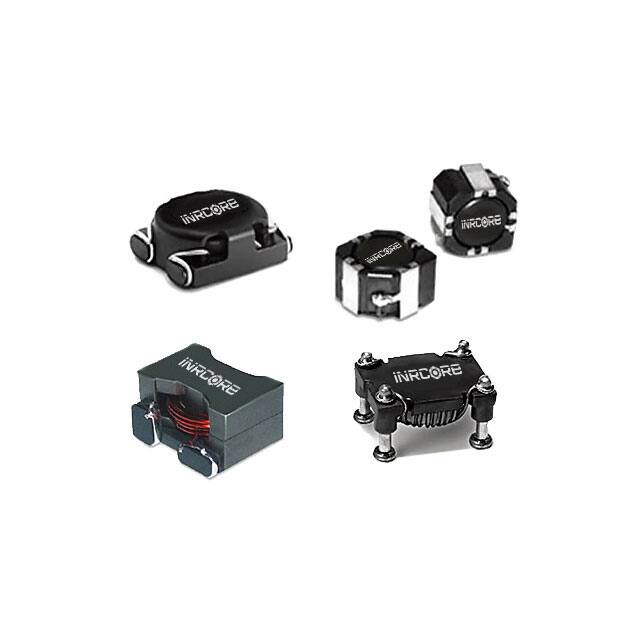

PL8150FIXED IND 1.25UH 14.3A 2.5 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.25 µH | - | 14.3 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8150NLFIXED IND 1.25UH 14.3A 2.5 MOHM iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.25 µH | - | 14.3 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL10121NLTFIXED IND 4.4UH 14A 1.8 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4.4 µH | ±15% | 14 A | 15A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10121TFIXED IND 4.4UH 14A 1.8 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4.4 µH | ±15% | 14 A | 15A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10122NLTFIXED IND 5.34UH 11A 1.8MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 5.34 µH | ±15% | 11 A | 12A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10122TFIXED IND 5.34UH 11A 1.8MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 5.34 µH | ±15% | 11 A | 12A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10123NLTFIXED IND 6.2UH 9A 1.8 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 6.2 µH | ±15% | 9 A | 10A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
