Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

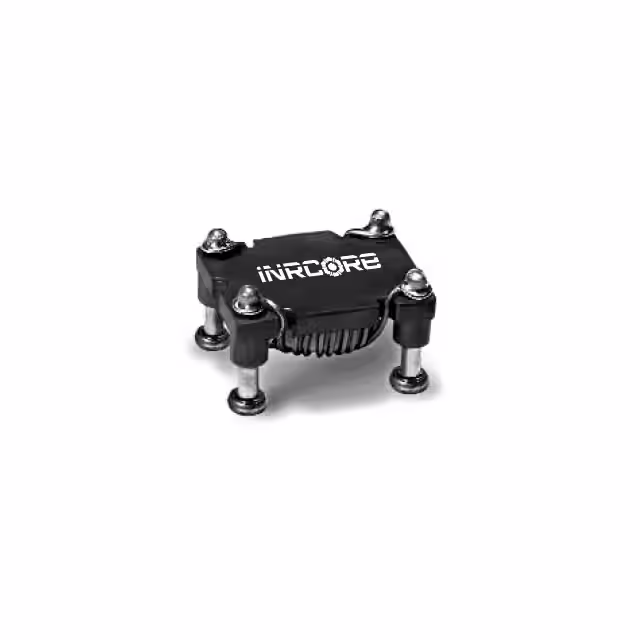

PL8403FIXED IND 880NH 23.8A 3 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 880 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
PL8403NLFIXED IND 880NH 23.8A 3 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 880 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
PL8404FIXED IND 2.1UH 21A 2.5 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 2.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL8404NLFIXED IND 2.1UH 21A 2.5 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 2.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL8122NLTFIXED IND 21.9UH 2.7A 72MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 21.9 µH | - | 2.7 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
PL8122TFIXED IND 21.9UH 2.7A 72MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 21.9 µH | - | 2.7 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
PL8400FIXED IND 77UH 1.1A 309 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 77 µH | - | 1.1 A | - | Unshielded | 309mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8400NLFIXED IND 77UH 1.1A 309 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
- | Nonstandard | Tube | Active | Toroidal | - | 77 µH | - | 1.1 A | - | Unshielded | 309mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL9101NLTFIXED IND 1UH 10.5A 4.5 MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 10.5 A | 12.7A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9102NLTFIXED IND 1.8UH 9.5A 5.5MOHM SMD iNRCORE, LLC |
0 |
|
Таблицы данных |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±30% | 9.5 A | 10.1A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
