Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDC50-471K-RC470uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 470 µH | ±10% | 11.4 A | 8.8A | Unshielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-680K-RC68uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 68 µH | ±10% | 21 A | 23A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|

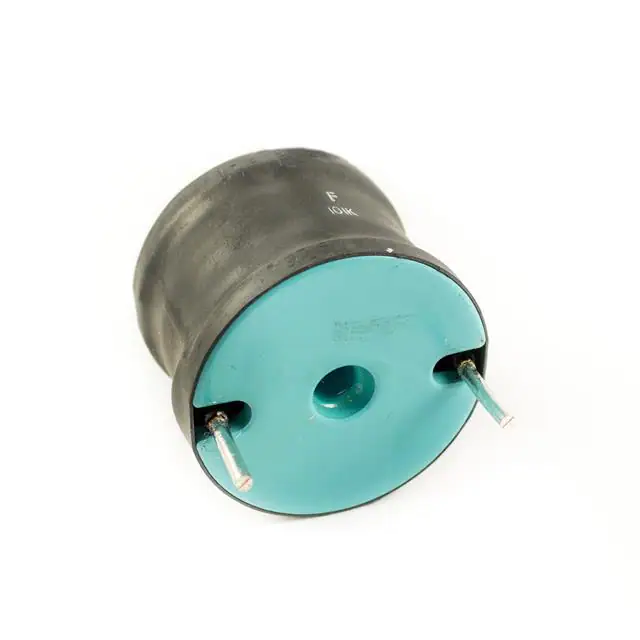

RDC60-333K-RC33000uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 33 mH | ±10% | 1.7 A | 1.5A | Unshielded | 4.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-392K-RC3900uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 3.9 mH | ±10% | 4.5 A | 4.2A | Unshielded | 548mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-271K-RC270uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 270 µH | ±10% | 21 A | 16.2A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-123K-RC12000uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 12 mH | ±10% | 2.8 A | 2.4A | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-181K-RC180uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 180 µH | ±10% | 21 A | 19.5A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-471K-RC470uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 470 µH | ±10% | 13.5 A | 12.5A | Unshielded | 61mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-681K-RC680uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 680 µH | ±10% | 11.4 A | 10.3A | Unshielded | 94mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
RDC20-330K-RC33uH +/-10% Radial Drum Core Allied Components International |
0 |
|
Таблицы данных |
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 33 µH | ±10% | 5.5 A | 18.6A | Unshielded | 29mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
