FET, MOSFET
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IAUAN04S7N008AUMA1IAUAN04S7N008AUMA1 |
2,310 |
|
Таблицы данных |
OptiMOS™ 7 | 5-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Ta), 290A (Tj) | 7V, 10V | 0.82mOhm @ 90A, 10V | 3V @ 60µA | 78 nC @ 10 V | ±20V | 5410 pF @ 20 V | - | 133W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-HSOF-5-2 |
|
|
NTTFS030N10GTAG100V MVSOA IN U8FL PACKAGE |
1,470 |
|
Таблицы данных |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 6A (Ta), 35A (Tc) | 10V | 30mOhm @ 12A, 10V | 4V @ 61µA | 21.5 nC @ 10 V | ±20V | 1366 pF @ 50 V | - | 2.5W (Ta), 74W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
TPH1500CNH1,LQ150V U-MOS VIII-H SOP-ADVANCE(N) |
7,540 |
|
Таблицы данных |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 38A (Tc) | 10V | 15.4mOhm @ 19A, 10V | 4V @ 1mA | - | ±20V | 2200 pF @ 75 V | - | 2.5W (Ta), 170W (Tc) | 150°C | - | - | Surface Mount | 8-SOP Advance (5x5.75) |
|
IRFR2607ZTRPBFMOSFET N-CH 75V 42A DPAK |
5,931 |
|
Таблицы данных |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 42A (Tc) | - | 22mOhm @ 30A, 10V | 4V @ 50µA | 51 nC @ 10 V | - | 1440 pF @ 25 V | - | - | - | - | - | Surface Mount | PG-TO252-3-901|DPAK |
|
|
RQ3L270BLFRATCBNCH 60V 27A, HSMT8AG, POWER MOSF |
3,500 |
|
Таблицы данных |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RQ3L270BKFRATCBNCH 60V 27A, HSMT8AG, POWER MOSF |
3,475 |
|
Таблицы данных |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.jpg)
|
IRFR220PBF-BE3N-CHANNEL 200V |
3,000 |
|
Таблицы данных |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 4.8A (Tc) | 10V | 800mOhm @ 2.9A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 260 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IPD90N06S4L05ATMA2MOSFET N-CH 60V 90A TO252-31 |
2,256 |
|
Таблицы данных |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 4.5V, 10V | 4.6mOhm @ 90A, 10V | 2.2V @ 60µA | 110 nC @ 10 V | ±16V | 8180 pF @ 25 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
|
RQ3P270BKFRATCBNCH 100V 27A, HSMT8AG, POWER MOS |
3,475 |
|
Таблицы данных |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 27A (Tc) | 4.5V, 10V | 27mOhm @ 27A, 10V | 2.5V @ 1.6mA | 13.6 nC @ 10 V | ±20V | 670 pF @ 50 V | - | 69W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-HSMT (3.2x3) |
|
|
PJQ5594-AU_R2_002A1150V N-CHANNEL ENHANCEMENT MODE |
3,000 |
|
Таблицы данных |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PJQ5968A-AU_R2_002A160V N-CHANNEL ENHANCEMENT MODE M |
3,000 |
|
Таблицы данных |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DMTH6005LPSQ-13MOSFET N-CH 60V 100A PWRDI5060 |
2,468 |
|
Таблицы данных |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 20.6A (Ta), 100A (Tc) | 4.5V, 10V | 5.5mOhm @ 50A, 10V | 3V @ 250µA | 47.1 nC @ 10 V | ±20V | 2962 pF @ 30 V | - | 3.2W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
NVTFWS010N10MCLTAGMOSFET N-CH 100V 11.7A 8WDFN |
1,500 |
|
Таблицы данных |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11.7A (Ta), 57.8A (Tc) | 4.5V, 10V | 10.6mOhm @ 15A, 10V | 3V @ 85µA | 30 nC @ 10 V | ±20V | 2150 pF @ 50 V | - | 3.2W (Ta), 77.8W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
RD3P02BATTL1PCH -100V -20A POWER MOSFET: RD3 |
1,120 |
|
Таблицы данных |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Tc) | 6V, 10V | 116mOhm @ 10A, 10V | 4V @ 1mA | 39 nC @ 10 V | ±20V | 1480 pF @ 50 V | - | 56W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
DI150N04PQMOSFET PWRQFN 5X6 40V 0.0014OHM |
5,000 |
|
Таблицы данных |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 10V | 1.45mOhm @ 75A, 10V | 4V @ 250µA | 61 nC @ 10 V | ±20V | 3950 pF @ 20 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|

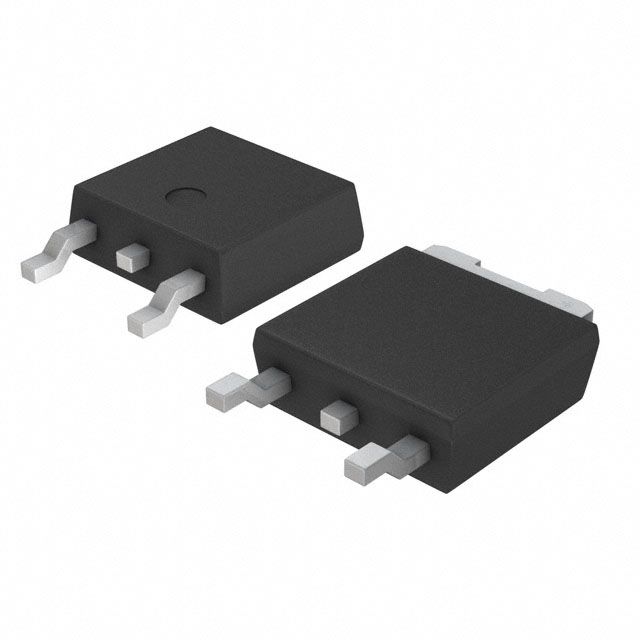

IRFR9110TRLPBFMOSFET P-CH 100V 3.1A DPAK |
3,000 |
|
Таблицы данных |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 3.1A (Tc) | 10V | 1.2Ohm @ 1.9A, 10V | 4V @ 250µA | 8.7 nC @ 10 V | ±20V | 200 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
NVMYS006N08LHTWGT8 80V LL LFPAK |
2,970 |
|
Таблицы данных |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 16A (Ta), 77A (Tc) | 4.5V, 10V | 6.2mOhm @ 15A, 10V | 2V @ 95µA | 34 nC @ 10 V | ±20V | 1950 pF @ 40 V | - | 3.7W (Ta), 89W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK4 (5x6) |
|
|
PJQ5544-AU_R2_002A140V N-CHANNEL ENHANCEMENT MODE M |
2,240 |
|
Таблицы данных |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Ta), 130A (Tc) | 4.5V, 10V | 3.3mOhm @ 20A, 10V | 2.3V @ 50µA | 41 nC @ 10 V | ±20V | 2851 pF @ 25 V | - | 3.3W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN5060-8 |
|
|
IAUCN08S7N024ATMA1MOSFET_(75V 120V( |
1,990 |
|
Таблицы данных |
OptiMOS™ 7 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 165A | 10V | - | - | 16 nC @ 10 V | - | - | - | - | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-34 |
|
|
NTMFS0D9N04XMT1G40V T10M IN S08FL PACKAGE |
1,455 |
|
Таблицы данных |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 48A (Ta), 273A (Tc) | 10V | 0.9mOhm @ 30A, 10V | 3.5V @ 150µA | 61 nC @ 10 V | ±20V | 3918 pF @ 20 V | - | 121W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
