FET, MOSFET
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK9540-100A,127MOSFET N-CH 100V 39A TO220AB |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 39A (Tc) | 4.5V, 10V | 39mOhm @ 25A, 10V | 2V @ 1mA | 48 nC @ 5 V | ±15V | 3072 pF @ 25 V | - | 158W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
BUK954R2-55B,127MOSFET N-CH 55V 75A TO220AB |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 4.5V, 10V | 3.7mOhm @ 25A, 10V | 2V @ 1mA | 95 nC @ 5 V | ±15V | 10220 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK954R4-40B,127MOSFET N-CH 40V 75A TO220AB |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 4.5V, 10V | 4mOhm @ 25A, 10V | 2V @ 1mA | 64 nC @ 5 V | ±15V | 7124 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK9575-100A,127MOSFET N-CH 100V 23A TO220AB |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Tc) | 4.5V, 10V | 72mOhm @ 10A, 10V | 2V @ 1mA | - | ±15V | 1704 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK9575-55A,127MOSFET N-CH 55V 20A TO220AB |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 20A (Tc) | 4.5V, 10V | 68mOhm @ 10A, 10V | 2V @ 1mA | - | ±10V | 643 pF @ 25 V | - | 62W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
BUK9607-30B,118MOSFET N-CH 30V 75A D2PAK |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 5mOhm @ 25A, 10V | 2V @ 1mA | 32 nC @ 5 V | ±15V | 3373 pF @ 25 V | - | 157W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK9612-55B,118MOSFET N-CH 55V 75A D2PAK |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 5V, 10V | 10mOhm @ 25A, 10V | 2V @ 1mA | 31 nC @ 5 V | ±15V | 3693 pF @ 25 V | - | 157W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK96150-55A,118MOSFET N-CH 55V 13A D2PAK |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 13A (Tc) | 4.5V, 10V | 137mOhm @ 13A, 10V | 2V @ 1mA | - | ±10V | 339 pF @ 25 V | - | 53W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
BUK963R2-40B,118MOSFET N-CH 40V 100A D2PAK |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 5V, 10V | 2.8mOhm @ 25A, 10V | 2V @ 1mA | 93.4 nC @ 5 V | ±15V | 10502 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK964R4-40B,118MOSFET N-CH 40V 75A D2PAK |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 5V, 10V | 4mOhm @ 25A, 10V | 2V @ 1mA | 64 nC @ 5 V | ±15V | 7124 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|

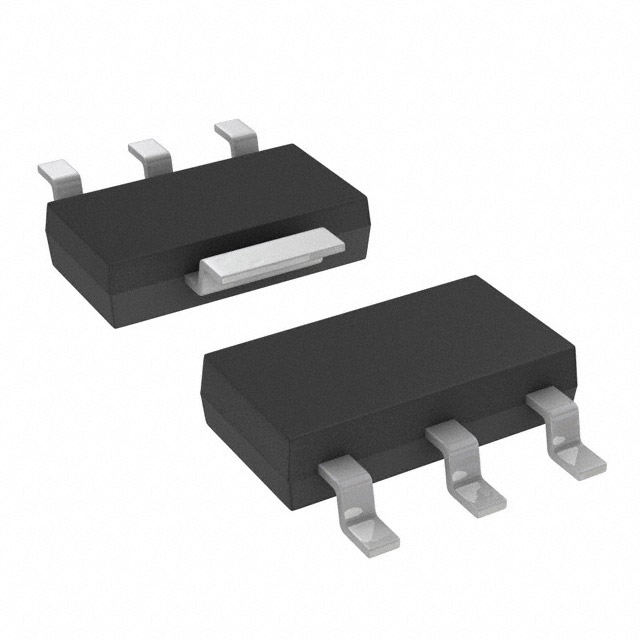

BUK98150-55,135MOSFET N-CH 55V 5.5A SOT-223 |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 5.5A (Tc) | 5V | 150mOhm @ 5A, 5V | 2V @ 1mA | - | ±10V | 330 pF @ 25 V | - | 8.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-73 |
|
BUK9907-40ATC,127MOSFET N-CH 40V 75A TO220-5 |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 4.5V, 10V | 6.5mOhm @ 50A, 10V | 2V @ 1mA | - | ±15V | 5836 pF @ 25 V | Temperature Sensing Diode | 272W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-5 |
|
|
BUK9907-55ATE,127MOSFET N-CH 55V 75A TO220-5 |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 4.5V, 10V | 6.2mOhm @ 50A, 10V | 2V @ 1mA | 108 nC @ 5 V | ±15V | 5836 pF @ 25 V | Temperature Sensing Diode | 272W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-5 |
_SOT226 Pkg.jpg)
|
BUK9E06-55B,127MOSFET N-CH 55V 75A I2PAK |
0 |
|
Таблицы данных |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 4.5V, 10V | 5.4mOhm @ 25A, 10V | 2V @ 1mA | 60 nC @ 5 V | ±15V | 7565 pF @ 25 V | - | 258W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|

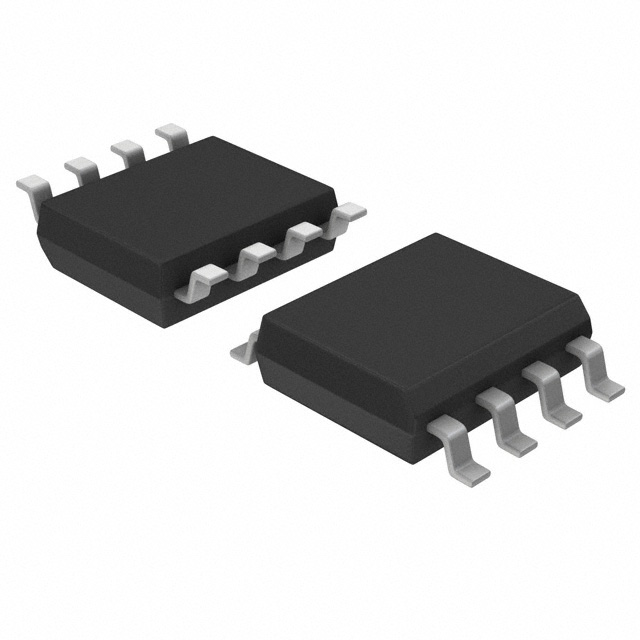

PHK04P02T,518MOSFET P-CH 16V 4.66A 8SO |
0 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 16 V | 4.66A (Tc) | 2.5V, 10V | 120mOhm @ 1A, 4.5V | 600mV @ 1mA (Typ) | 7.2 nC @ 4.5 V | ±8V | 528 pF @ 12.8 V | - | 5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
PH16030L,115MOSFET N-CH 30V 38A LFPAK56 |
0 |
|
Таблицы данных |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 38A (Tc) | 4.5V, 10V | 16.9mOhm @ 15A, 10V | 2V @ 1mA | 8.2 nC @ 4.5 V | ±15V | 680 pF @ 12 V | - | 41.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH3075L,115MOSFET N-CH 75V 30A LFPAK56 |
0 |
|
- |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 30A (Tc) | 4.5V, 10V | 28mOhm @ 15A, 10V | 2.3V @ 1mA | 19 nC @ 5 V | ±15V | 2070 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH3330L,115MOSFET N-CH 30V 100A LFPAK56 |
0 |
|
- |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 3.3mOhm @ 25A, 10V | 2.15V @ 1mA | 30.5 nC @ 4.5 V | ±20V | 4840 pF @ 12 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PH3855L,115MOSFET N-CH 55V 24A LFPAK56 |
0 |
|
Таблицы данных |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 24A (Tc) | 4.5V, 10V | 36mOhm @ 15A, 10V | 2V @ 1mA | 11.7 nC @ 5 V | ±15V | 765 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
PH955L,115MOSFET N-CH 55V 62.5A LFPAK56 |
0 |
|
Таблицы данных |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 62.5A (Tc) | 4.5V, 10V | 8.3mOhm @ 25A, 10V | 2V @ 1mA | 42 nC @ 5 V | ±20V | 2836 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
