Энкодеры
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Программируемый | Тип кодировщика | Тип выхода | Импульсы на оборот | Напряжение - Питание | Тип привода | Фиксатор | Встроенный переключатель | Тип крепления | Ориентация | Тип вывода | Срок службы вращения (мин. циклов) | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MERP11-20415AENCODER, WITH PUSHBUTTON, 20/20 |
100 |
|
Таблицы данных |
MERP 11 | Tray | Active | - | Mechanical | Pulse | 20 | 5V | 6mm Dia Round End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
MERP11-15325BENCODER, WITH PUSHBUTTON, 15/30 |
60 |
|
Таблицы данных |
MERP 11 | Tray | Active | - | Mechanical | Pulse | 15 | 5V | 6mm Dia Slotted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
PEL12T-4225T-S1024ROTARY ENCODER MECHANICAL 24PPR |
29 |
|
Таблицы данных |
PEL12T | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
RE315L-POPTICAL RING ENCODER, 3.3V |
8 |
|
- |
RE | Tray | Active | - | Optical | Push-Pull | 24 | 3.175V ~ 3.425V | Hole for Shaft | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
RE515H-POPTICAL RING ENCODER, 5V |
100 |
|
- |
RE | Tray | Active | - | Optical | Push-Pull | 24 | 4.75V ~ 5.25V | Hole for Shaft | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AMT103-D0500-I6000-SAMT10, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 3.6V ~ 5.5V | 6mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT103-D1024-I6000-SAMT10, AXIAL, CAP, SINGLE ENDED, |
18 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 1024 | 3.6V ~ 5.5V | 6mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT103-D0512-I6000-SAMT10, AXIAL, CAP, SINGLE ENDED, |
15 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 512 | 3.6V ~ 5.5V | 6mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
EM14A1D-B28-L032NROTARY OPTICAL ENCODER - 14MM |
50 |
|
Таблицы данных |
EM14 | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

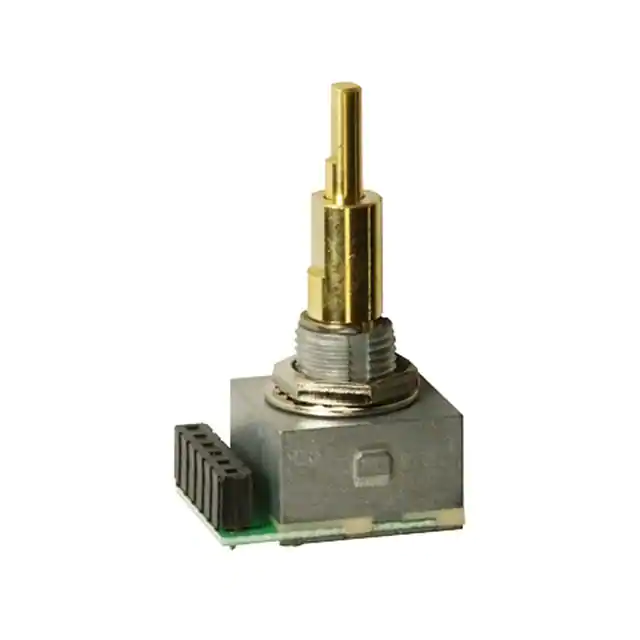

REC16L25-205-B16MM MANUAL ENCODER, DOUBLE SHAF |
34 |
|
Таблицы данных |
REC16L | Box | Active | Not Verified | Optical | Digital, Open Collector | 25 | 5V | 6.35mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 2M | - | - |
|
|
AMT102-D2048-I6350-SAMT10, RADIAL, CAP, SINGLE ENDED |
34 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT103-D2048-I6350-SAMT10, AXIAL, CAP, SINGLE ENDED, |
20 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT103-D0512-I6350-SAMT10, AXIAL, CAP, SINGLE ENDED, |
19 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 512 | 3.6V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT103-D0500-I6350-SAMT10, AXIAL, CAP, SINGLE ENDED, |
19 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 3.6V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT102-D0512-I6350-SAMT10, RADIAL, CAP, SINGLE ENDED |
19 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 512 | 3.6V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D1024-I8000-SAMT10, RADIAL, CAP, SINGLE ENDED |
19 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 1024 | 3.6V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D0500-I6350-SAMT10, RADIAL, CAP, SINGLE ENDED |
19 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 500 | 3.6V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D0512-I6000-SAMT10, RADIAL, CAP, SINGLE ENDED |
18 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 512 | 3.6V ~ 5.5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D1024-I6000-SAMT10, RADIAL, CAP, SINGLE ENDED |
18 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 1024 | 3.6V ~ 5.5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT103-D1024-I6350-SAMT10, AXIAL, CAP, SINGLE ENDED, |
18 |
|
Таблицы данных |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 1024 | 3.6V ~ 5.5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
