Энкодеры
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Программируемый | Тип кодировщика | Тип выхода | Импульсы на оборот | Напряжение - Питание | Тип привода | Фиксатор | Встроенный переключатель | Тип крепления | Ориентация | Тип вывода | Срок службы вращения (мин. циклов) | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-9930E-100REFLECTIVE ROTARY 397LPI ENCODER |
0 |
|
Таблицы данных |
AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
C14D32N-F3ENCODER OPT PANEL 32PPR 5VDC |
0 |
|
Таблицы данных |
C14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
REC16A50-201-CROTARY ENCODER OPTICAL 50PPR |
0 |
|
Таблицы данных |
REC16 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 50 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D16N-A2ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Таблицы данных |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
OPE1275H-128ROTARY ENCODER OPTICAL 128PPR |
0 |
|
Таблицы данных |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 128 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
OPE1275H-256ROTARY ENCODER OPTICAL 256PPR |
0 |
|
Таблицы данных |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 256 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
OPE1275S-128ROTARY ENCODER OPTICAL 128PPR |
0 |
|
Таблицы данных |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 128 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Vertical | Terminal Pins | - | - | - |
|
OPE1275S-256ROTARY ENCODER OPTICAL 256PPR |
0 |
|
Таблицы данных |
OPE | Box | Obsolete | Not Verified | Optical | Tachometer | 256 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEDR-9830A-100AUTO HT ENCODER 318LPI, REEL 1KP |
0 |
|
- |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 318 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9920-100AEDR-9920, 225 LPI INC ENCODER, |
0 |
|
- |
- | Tape & Reel (TR) | Active | Not Verified | Incremental | Digital, Quadrature, SPI, TTL | 225 | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9930EL-100LINEAR 397LPI ENCODER,TNR 1000 P |
0 |
|
Таблицы данных |
AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
C14D16P-C2ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Таблицы данных |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

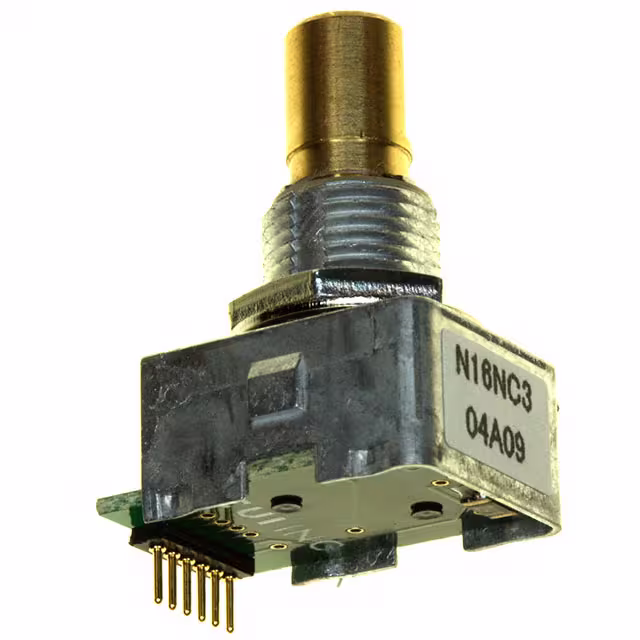

C14N16N-C3ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Таблицы данных |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14N32N-C3ROTARY ENCODER OPTICAL 32PPR |
0 |
|
Таблицы данных |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-A3PA15 MM, 32 PPR, 6.35 MM METAL SHA |
0 |
|
Таблицы данных |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
C14D16N-C3PA15 MM, 16 PPR, 6.35 MM PLASTIC S |
0 |
|
Таблицы данных |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
C14D32N-C3PA15 MM, 32 PPR, 6.35 MM PLASTIC S |
0 |
|
Таблицы данных |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-F3P15 MM, 32 PPR, 6.35 MM PLASTIC S |
0 |
|
Таблицы данных |
C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

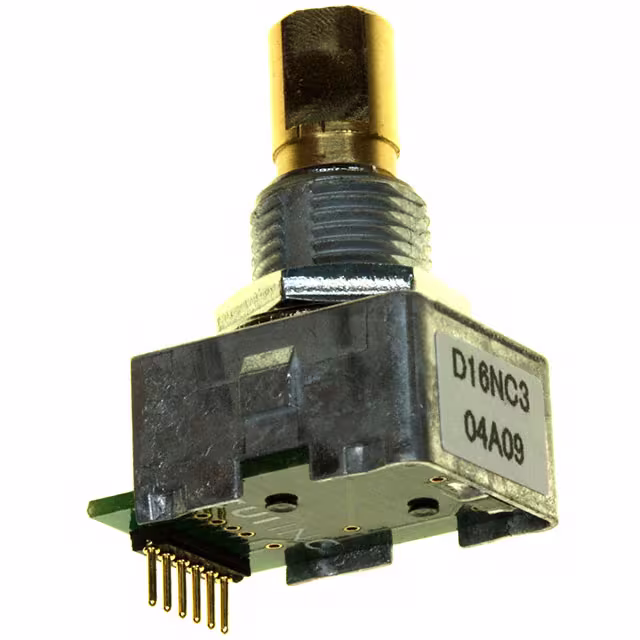

C14D16N-C3ROTARY ENCODER OPTICAL 16PPR |
0 |
|
Таблицы данных |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

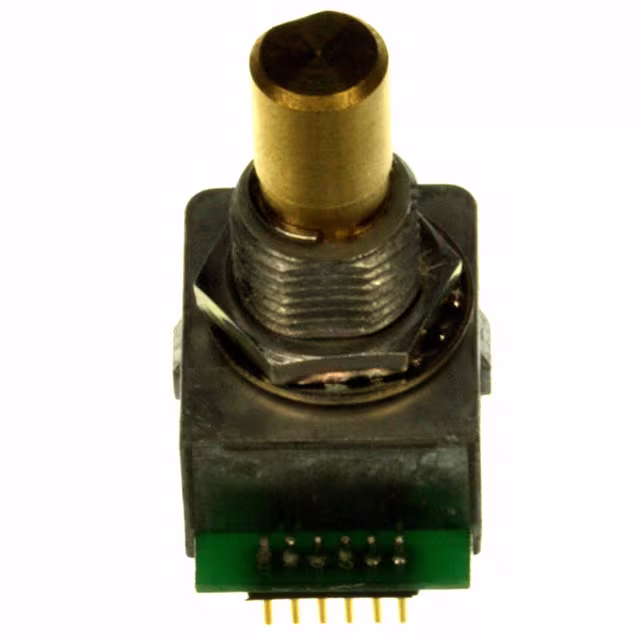

C14D32N-C3ROTARY ENCODER OPTICAL 32PPR |
0 |
|
Таблицы данных |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
