DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR04ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
319 |
|
Таблицы данных |
KR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

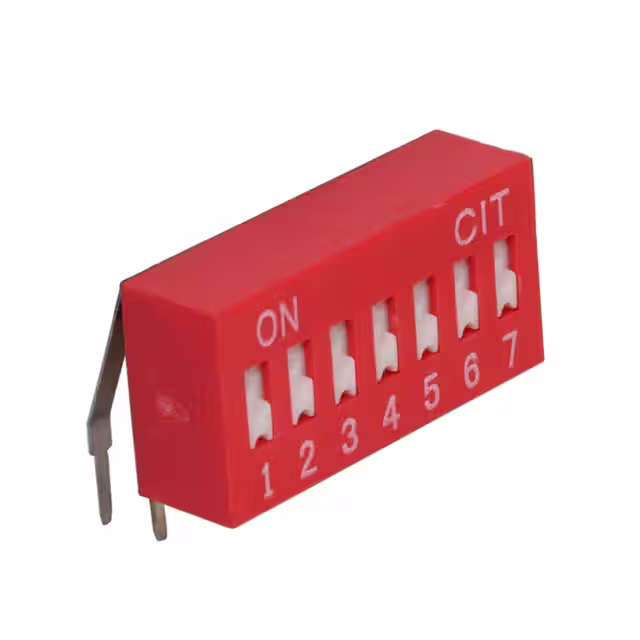

KR07RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
399 |
|
Таблицы данных |
KR | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP04ETSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
706 |
|
Таблицы данных |
KP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR07ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
407 |
|
Таблицы данных |
KR | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR06ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
448 |
|
Таблицы данных |
KR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR08ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
241 |
|
Таблицы данных |
KR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

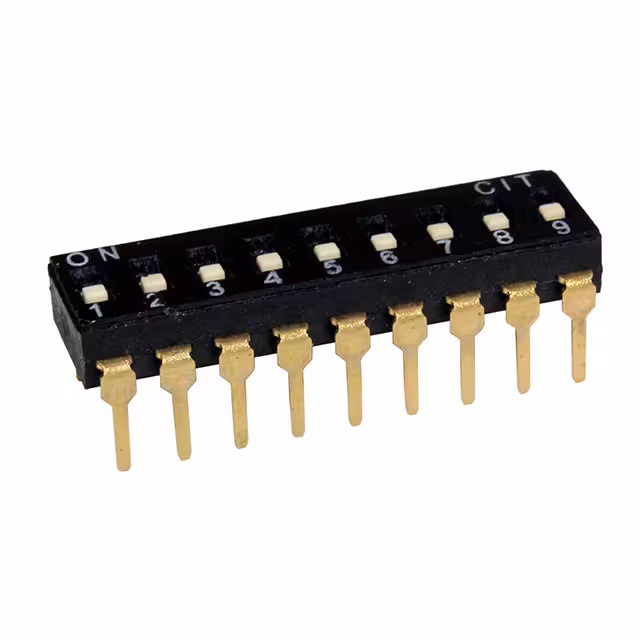

KT09RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
260 |
|
Таблицы данных |
KT | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

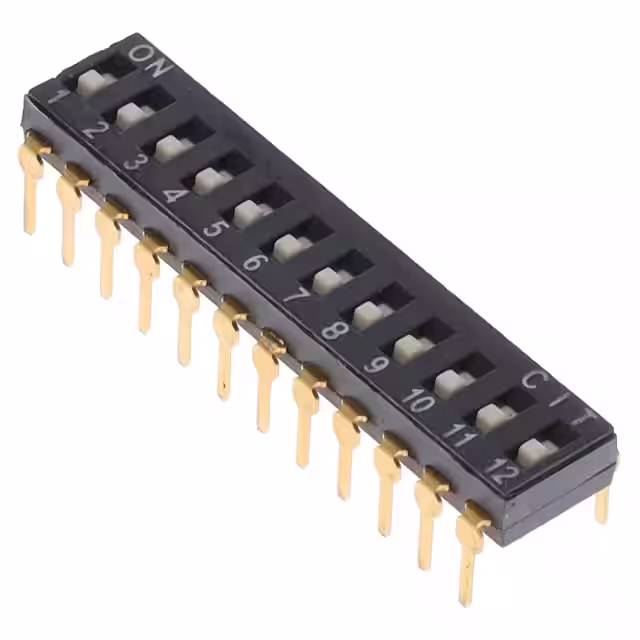

KT12RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
143 |
|
Таблицы данных |
KT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RD10RA8CVATSW ROTARY DIP OCT COMP 0.15A 50V CIT Relay and Switch |
200 |
|
Таблицы данных |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

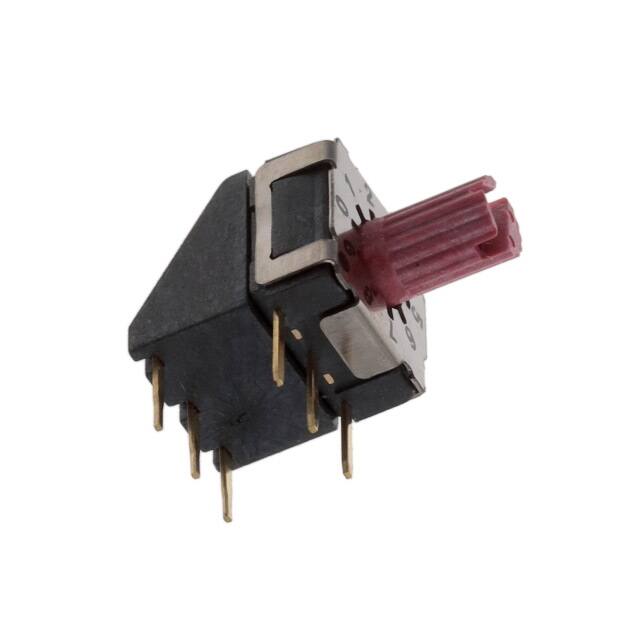

RD07B10RVBTSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
193 |
|
Таблицы данных |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
