DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

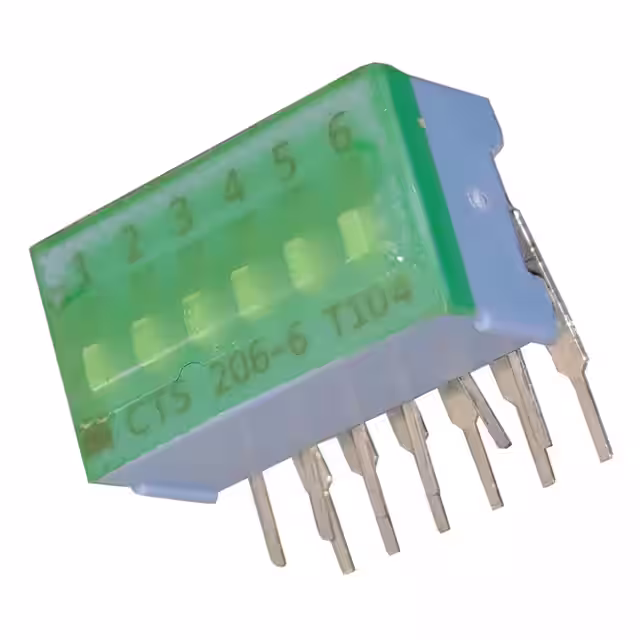

206-6RASTSWITCH SLIDE DIP SPST 0.05A 24V |
460 |
|
Таблицы данных |
206RA | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

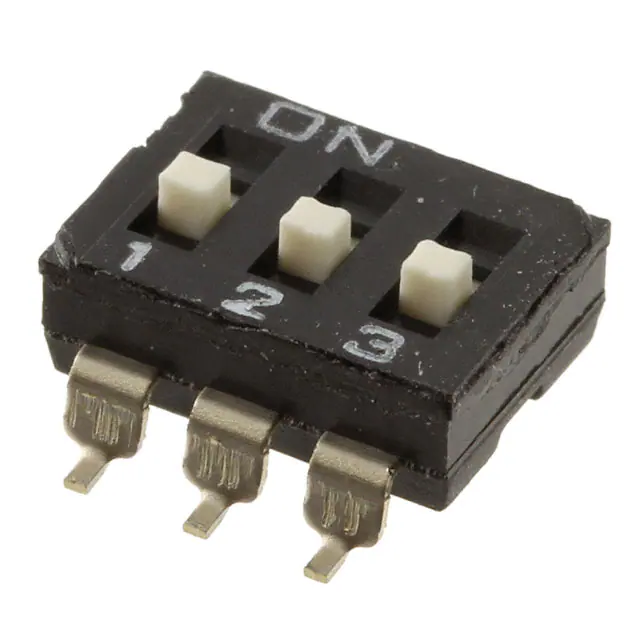

KAE03LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
1,373 |
|
Таблицы данных |
KAE | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

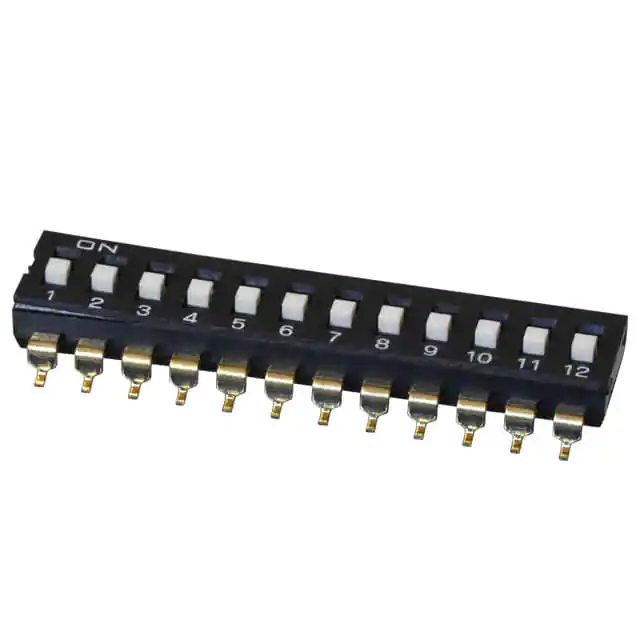

DS04-254-2-12BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
898 |
|
Таблицы данных |
DS04-254-SMT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

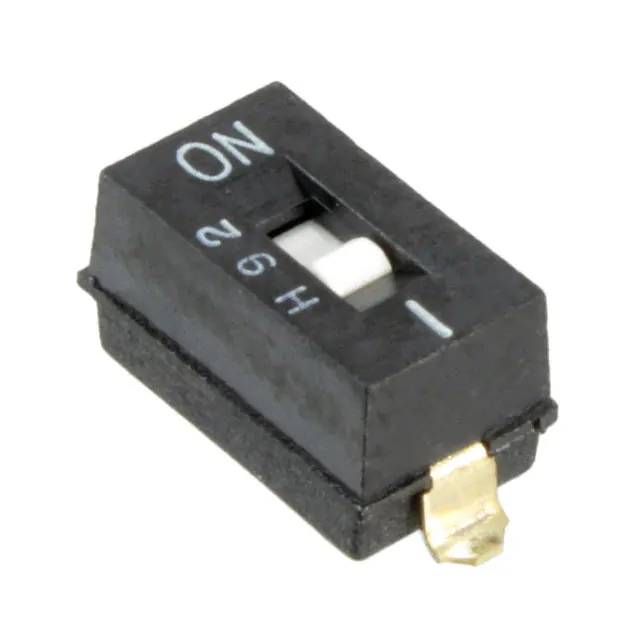

A6SN-1101SWITCH SLIDE DIP SPST 0.025A 24V |
465 |
|
Таблицы данных |
A6SN | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6TN-4101SWITCH SLIDE DIP SPST 0.025A 24V |
306 |
|
Таблицы данных |
A6TN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

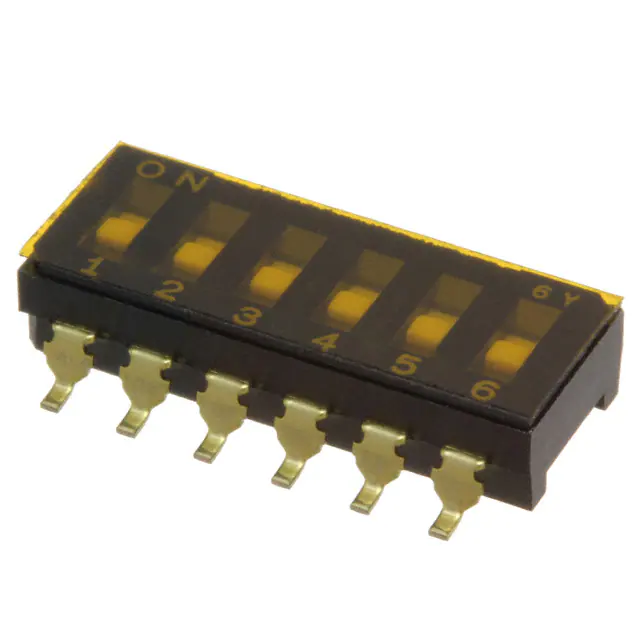

CFS-0600TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,041 |
|
Таблицы данных |
CFS | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

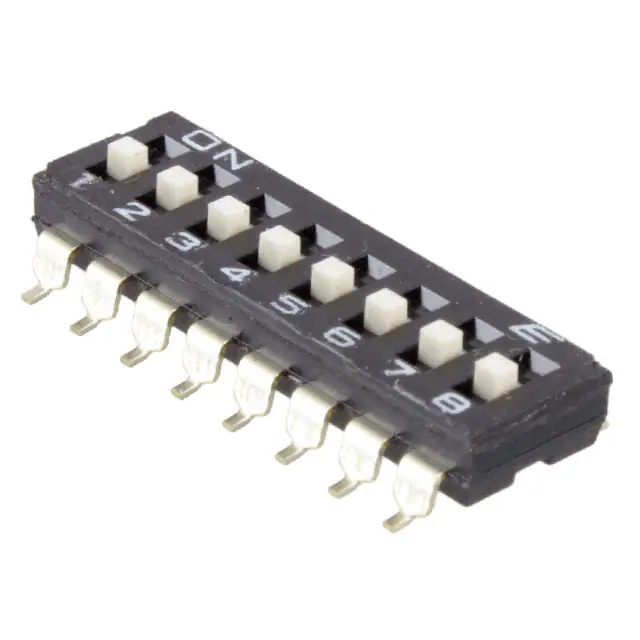

KAE08LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
6,090 |
|
Таблицы данных |
KAE | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

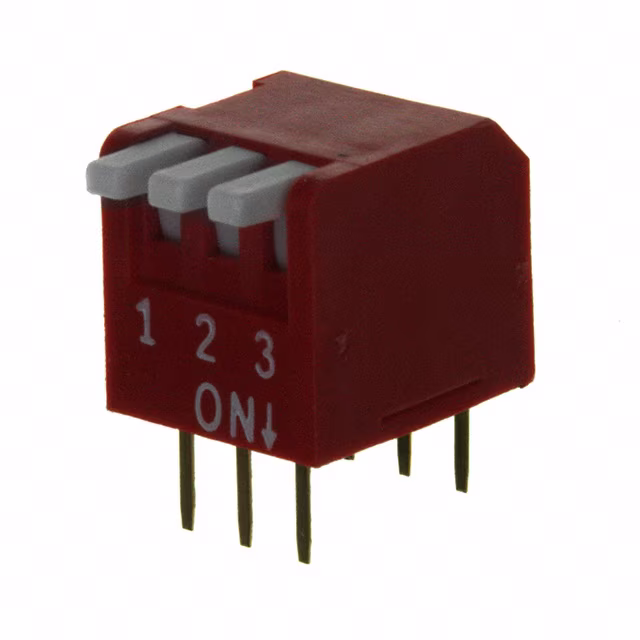

KAP1103ESWITCH PIANO DIP SPST 0.025A 24V |
1,123 |
|
Таблицы данных |
KAP | Tube | Active | SPST | 3 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KR08ESWITCH SLIDE DIP SPST 0.025A 24V |
373 |
|
Таблицы данных |
KR | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

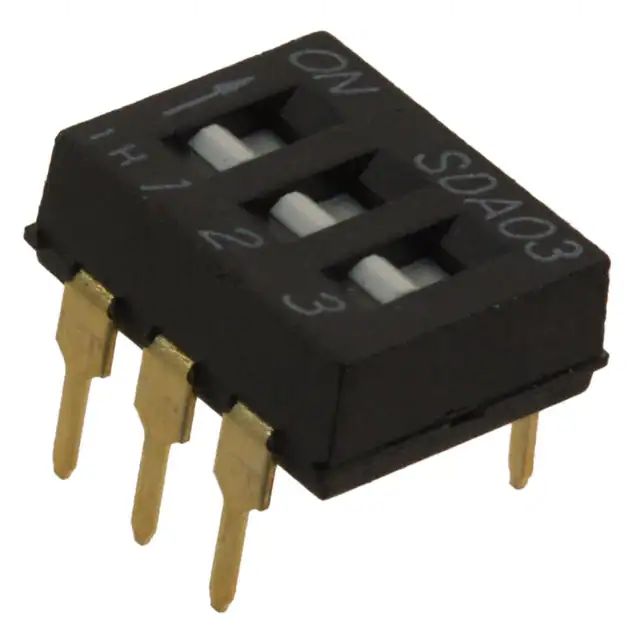

SDA03H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
3,658 |
|
Таблицы данных |
SDA | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ08RTTSWITCH SLIDE DIP SPST 0.025A 24V |
800 |
|
Таблицы данных |
KJ | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
195-9MSTSWITCH PIANO DIP SPST 0.05A 24V |
590 |
|
Таблицы данных |
195 | Tube | Active | SPST | 9 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

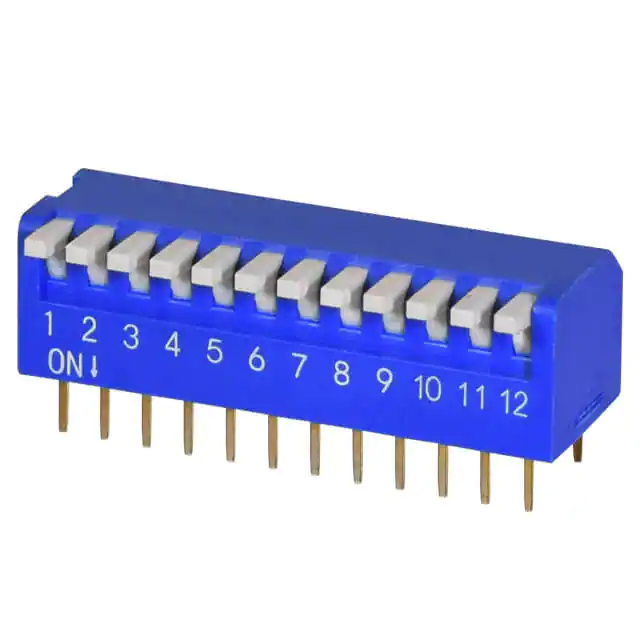

DS02C-254-1L-12BESWITCH PIANO DIP SPST 0.025A 24V |
334 |
|
Таблицы данных |
DS02-254 | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

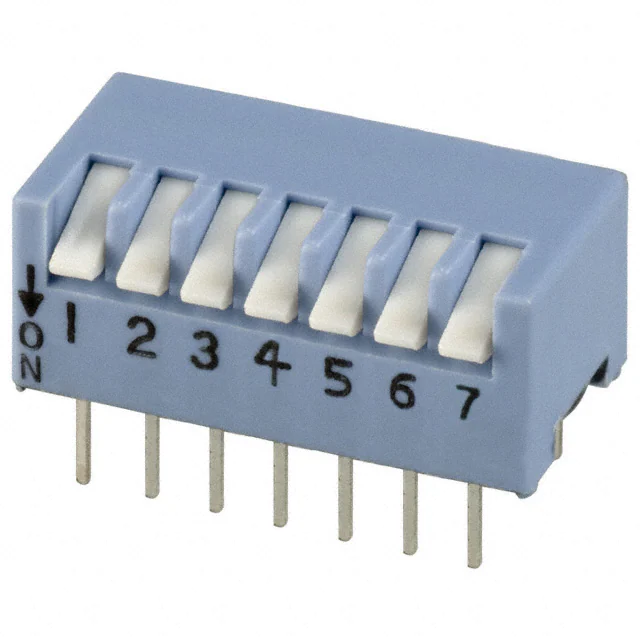

194-7MSTSWITCH PIANO DIP SPST 0.05A 24V |
391 |
|
Таблицы данных |
194 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

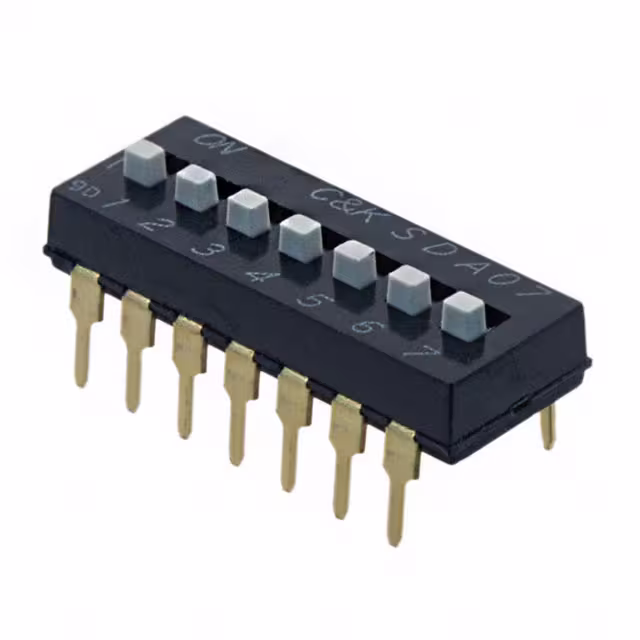

SDA07H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
493 |
|
Таблицы данных |
SDA | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

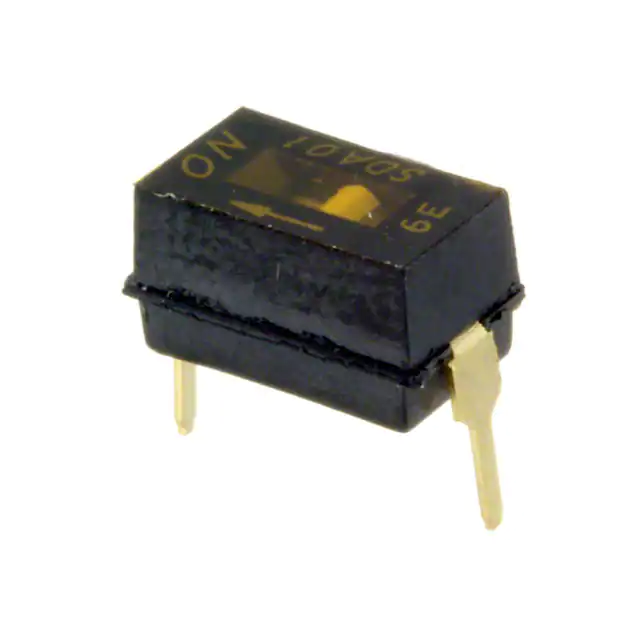

SDA01H0BSWITCH SLIDE DIP SPST 0.025A 24V |
9,505 |
|
Таблицы данных |
SDA | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KR10RSWITCH SLIDE DIP SPST 0.025A 24V |
197 |
|
Таблицы данных |
KR | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6SN-2102-PSWITCH SLIDE DIP SPST 0.025A 24V |
515 |
|
Таблицы данных |
A6SN | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
DMR02TTRSWITCH SLIDE DIP SPST 0.025A 24V |
8,095 |
|
Таблицы данных |
DM | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

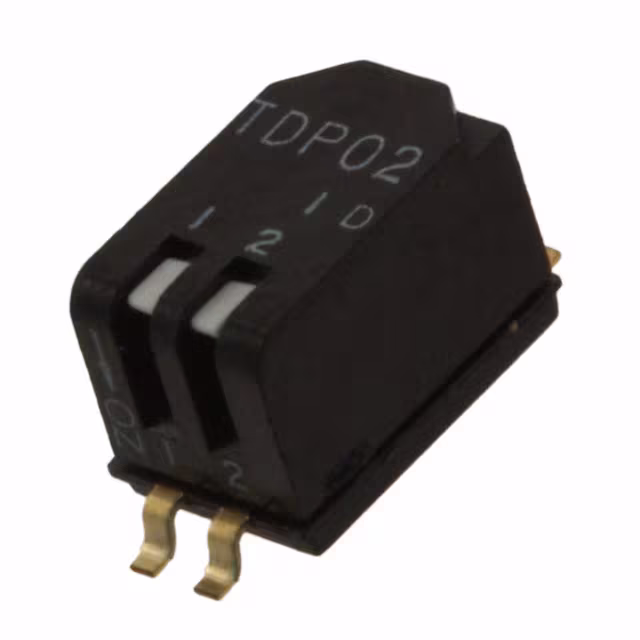

TDP02H0SBD1SWITCH PIANO DIP SPST 0.025A 24V |
1,060 |
|
Таблицы данных |
TDP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
