БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78C08RATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
78C | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
78C08SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
78C | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78C09SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
78C | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78C10RATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
78C | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
78C10SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
78C | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78C12RATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
78C | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
78C12SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
78C | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78G01RATSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | 3PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78G02SRATSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | 3PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78G03SRATSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | 3PST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78H02RATSWITCH SLIDE DIP 4PST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | 4PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78HJ05GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
Таблицы данных |
78H | Tube | Obsolete | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78J05RATSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

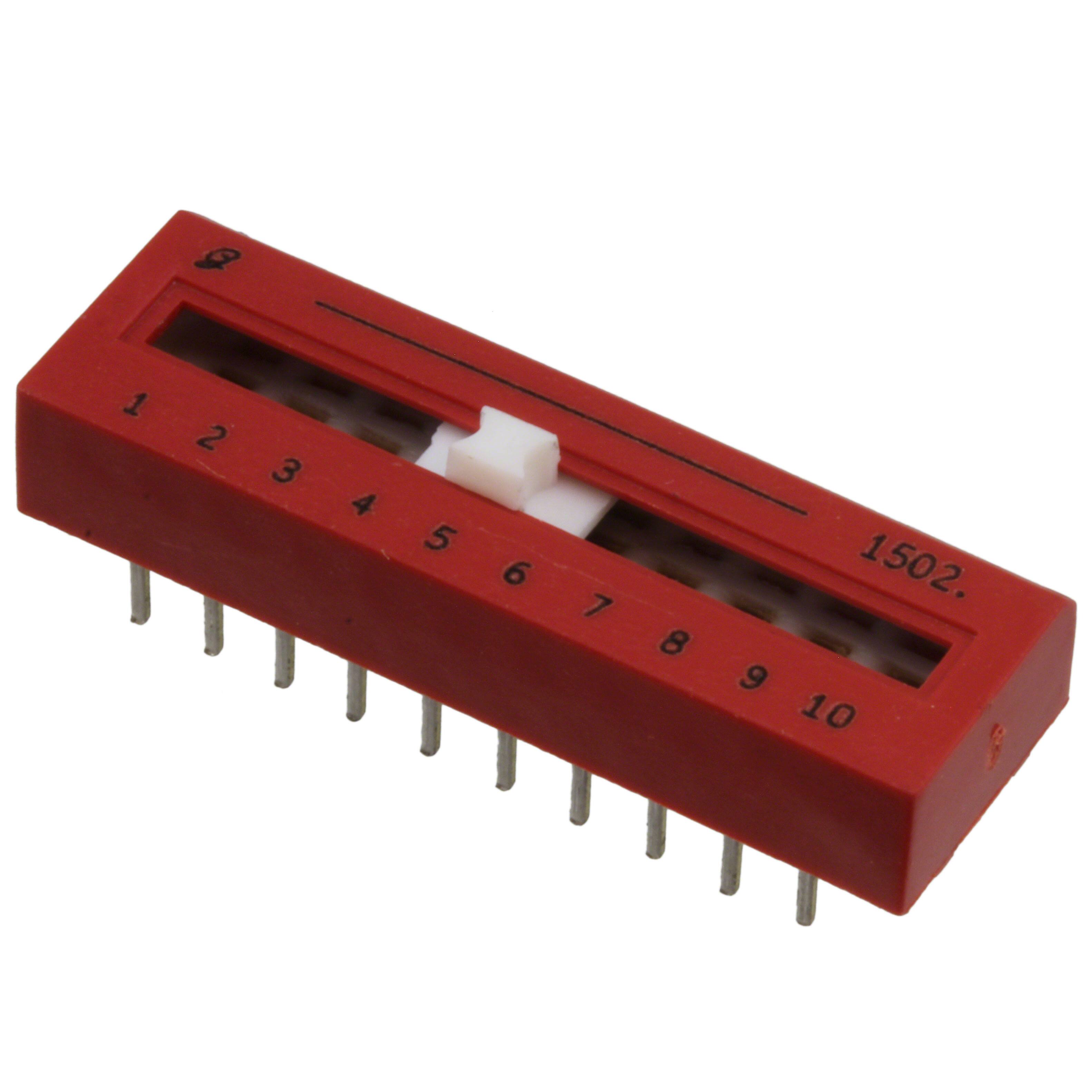

79C10TSWITCH SLIDE DIP SP10T 0.125A 6V |
0 |
|
Таблицы данных |
79C | Tube | Obsolete | SP10T | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB03TSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
Таблицы данных |
90GB | Tube | Obsolete | SPST | 3 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB04LTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
Таблицы данных |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Position Identification Line | -40°C ~ 85°C |
|
|
90GB04STSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
Таблицы данных |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
90GB04TSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
Таблицы данных |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB05LTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
Таблицы данных |
90GB | Tube | Obsolete | SPST | 5 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Position Identification Line | -40°C ~ 85°C |
|
|
90GB05SLTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
Таблицы данных |
90GB | Tube | Obsolete | SPST | 5 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
