БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

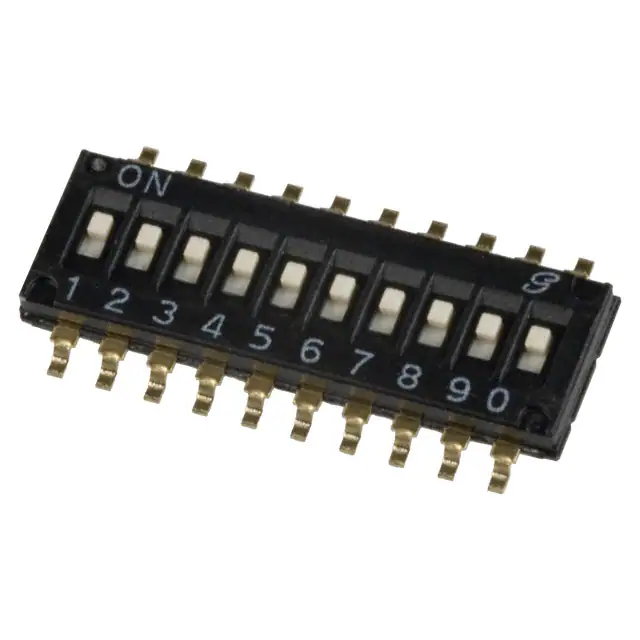

97C10SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
97 | Bag | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
97R02SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
97 | Bag | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
97R04SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
97 | Bag | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
97R08SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
97 | Bag | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
BD02AV2SWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BD | Bag | Obsolete | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BD04AV2SWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BD | Bag | Obsolete | SPST | 4 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BD05AV2SWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BD | Bag | Obsolete | SPST | 5 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

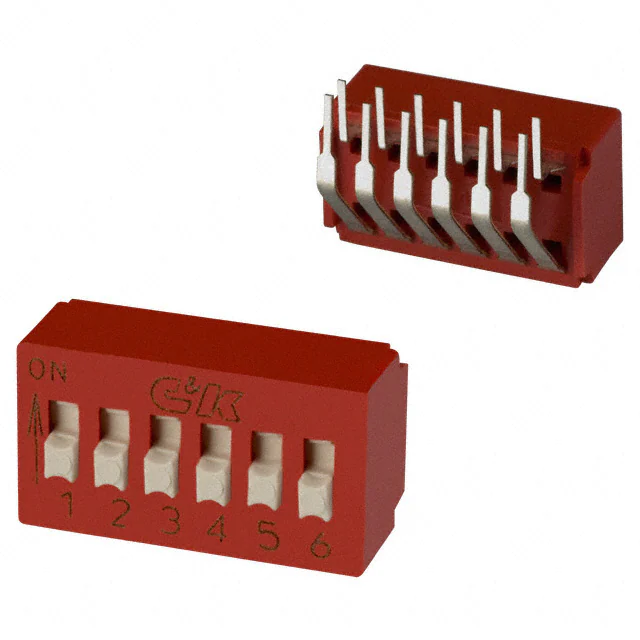

BD06AV2SWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BD | Bag | Obsolete | SPST | 6 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BD08AV2SWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BD | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

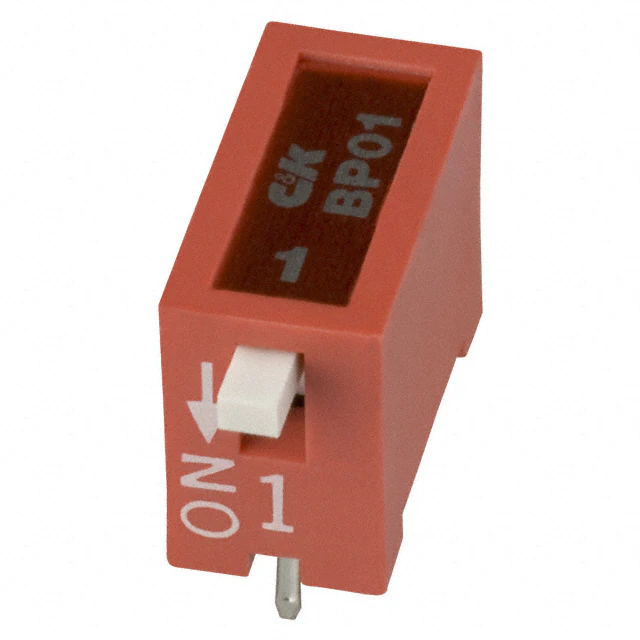

BP01KESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 1 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|
|
BP01YESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 1 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|
|
BP01YTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 1 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|

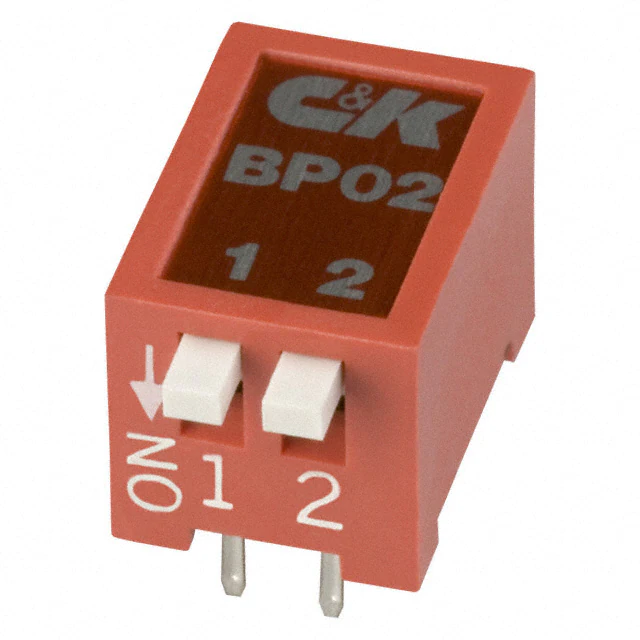

BP02KTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|

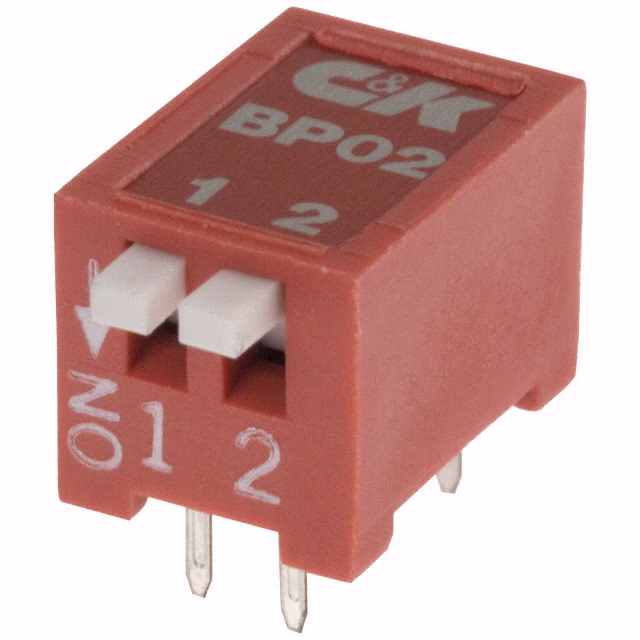

BP02YESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|

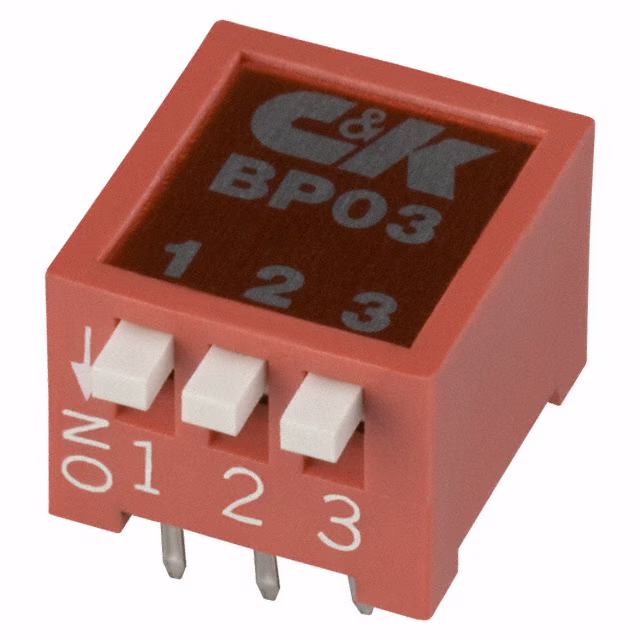

BP03KESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 3 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|
BP04KESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 4 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|
|

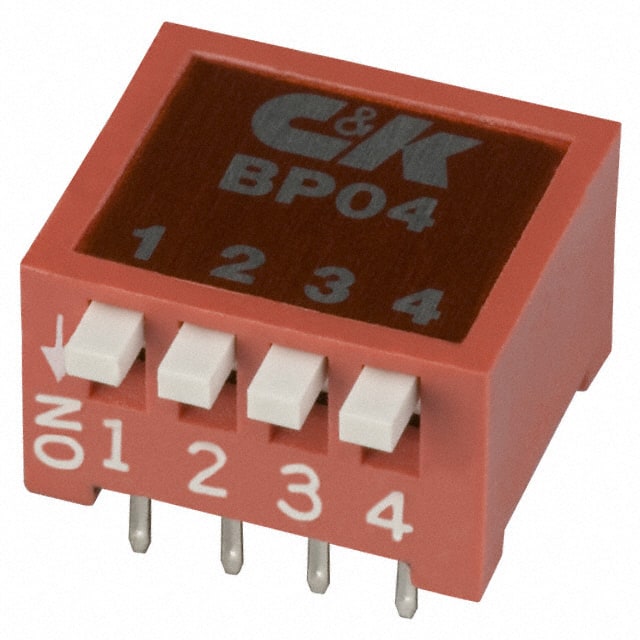

BP04KTSWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 4 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 60°C |
|

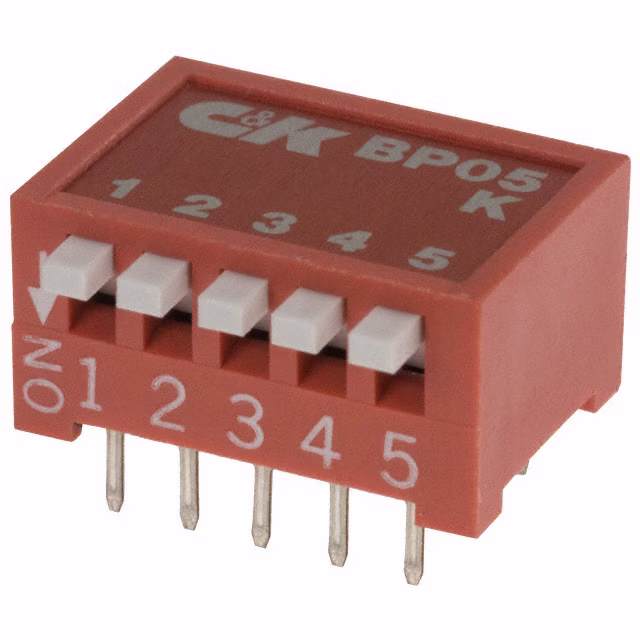

BP05KESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 5 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|

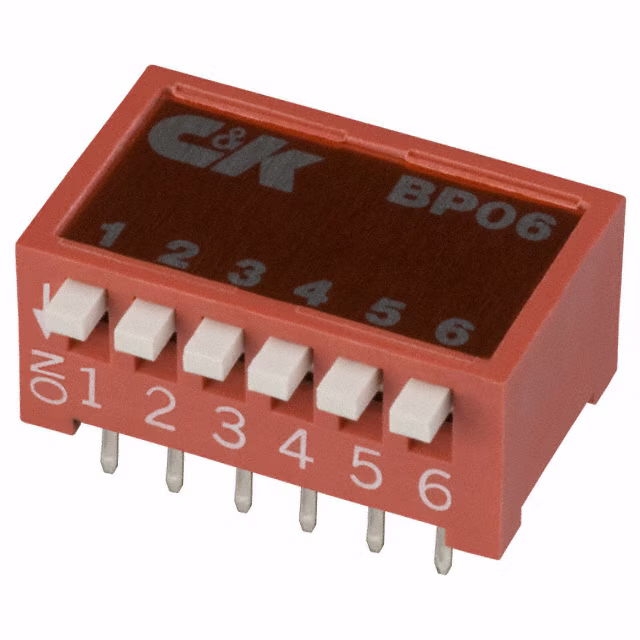

BP06YESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 6 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
|
BP08KESWITCH SLIDE DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BP | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.315" (8.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 60°C |
