БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA-5130A1ESW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.634" (16.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5110A1ESWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
- |
SA-5000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.634" (16.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5170A1EWSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Tray | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.634" (16.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5130A3ESW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.634" (16.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5110A1EWSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
- |
SA-5000 | Tray | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.634" (16.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5170A3ESW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.634" (16.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
1825444-1SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
RRD | Bulk | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold Alloy | 0.287" (7.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
RRD1010KSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
RRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
PT65521L254SWITCH ROTARY DIP SP4T 0.15A 24V |
0 |
|
Таблицы данных |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

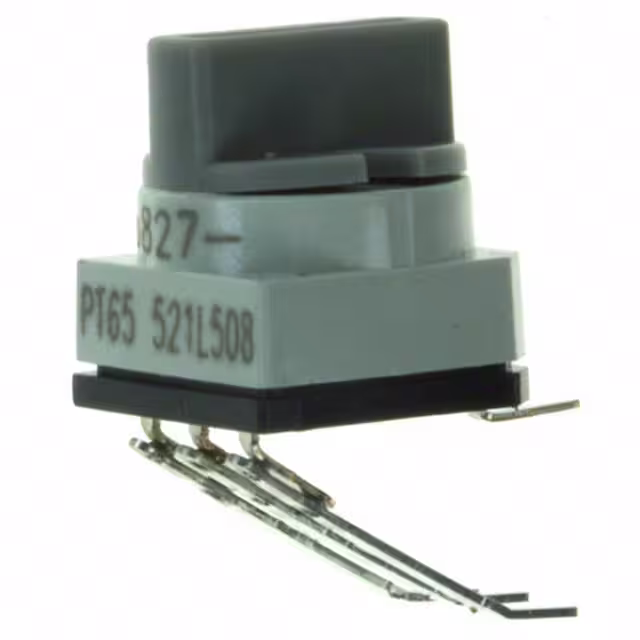

PT65521L508SWITCH ROTARY DIP SP4T 0.15A 24V |
0 |
|
Таблицы данных |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65526L508SW ROTARY DIP OCTAL 0.15A 24V |
0 |
|
Таблицы данных |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65731L254DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65731L508DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

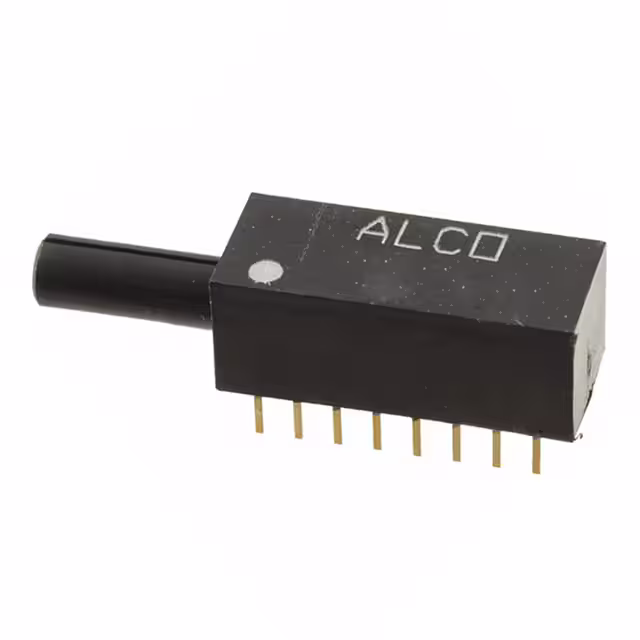

54359-1SW ROTARY DIP HEX COMP 0.1A 28V |
0 |
|
Таблицы данных |
- | Tube | Obsolete | Hexadecimal Complement | 16 | 100mA | 28VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
RRD16C10KSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Таблицы данных |
RRD | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

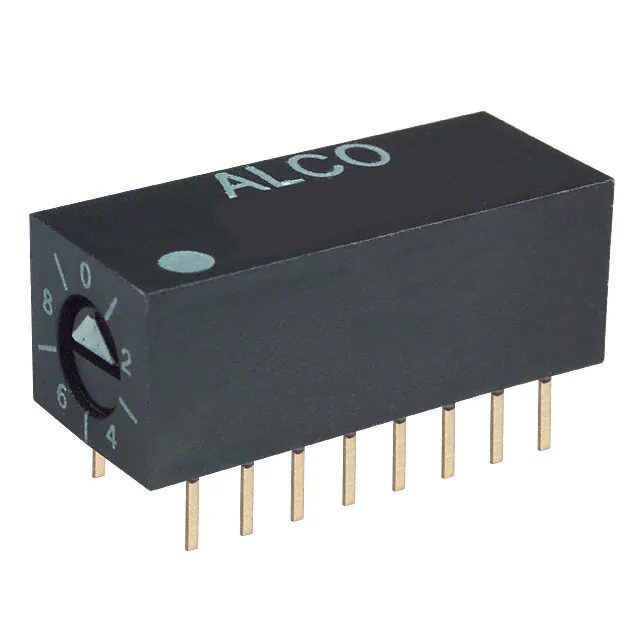

53919-2SW ROTARY DIP BCD W/COMP 28V |
0 |
|
Таблицы данных |
- | Bulk | Obsolete | BCD with Complement | 10 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | - |
|
|
DRS10RASWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
DR | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
SA-5131A3ESW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5151A1EWSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
- |
SA-5000 | Tray | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
|
|
SA-5131A1ESW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
- |
SA-5000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 75°C |
