DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
94HAB10JTSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
Таблицы данных |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
FD02FR16H-SSWITCH ROTARY DIP HEX 100MA 5V |
0 |
|
Таблицы данных |
FD02 | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.126" (3.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC16H-SSW ROTARY DIP HEX COMP 100MA 5V |
0 |
|
Таблицы данных |
FD02 | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FR10H-SSWITCH ROTARY DIP BCD 100MA 5V |
0 |
|
Таблицы данных |
FD02 | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC10H-SSW ROTARY DIP BCD COMP 100MA 5V |
0 |
|
Таблицы данных |
FD02 | Tube | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
NDSR10VDIP SWITCH ND STANDARD |
0 |
|
Таблицы данных |
NDS | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHS6ADIPTRONICS HALF PITCH DIP |
0 |
|
Таблицы данных |
DHS | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
78G03STSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | 3PST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

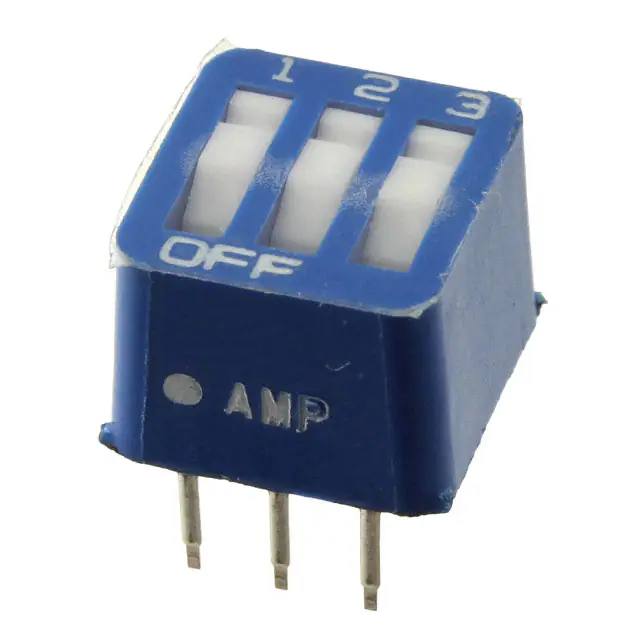

3-5435668-3SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Таблицы данных |
7100 | Tube | Active | SPST | 3 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
78J02STSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | SPDT | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ND3FR16H-RSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Таблицы данных |
ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
DRM16CRASW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Таблицы данных |
DR | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
SD09H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tube | Active | SPST | 9 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78RB02SRATSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
78 | Tube | Active | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
D16ASP081E1BTRDIP ROTARY DH THUMB WHEEL |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
76PRB08TSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Таблицы данных |
76 | Tube | Active | SPST | 8 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
NDS10TVDIP SWITCH ND STANDARD |
0 |
|
Таблицы данных |
NDS | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
94HAC16JTSW ROTARY DIP HEX COMP 0.1A 50V |
0 |
|
Таблицы данных |
94H | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
PT65SG173DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MDG201S02TRANSFER DIP SWITCH MDG |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
