DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

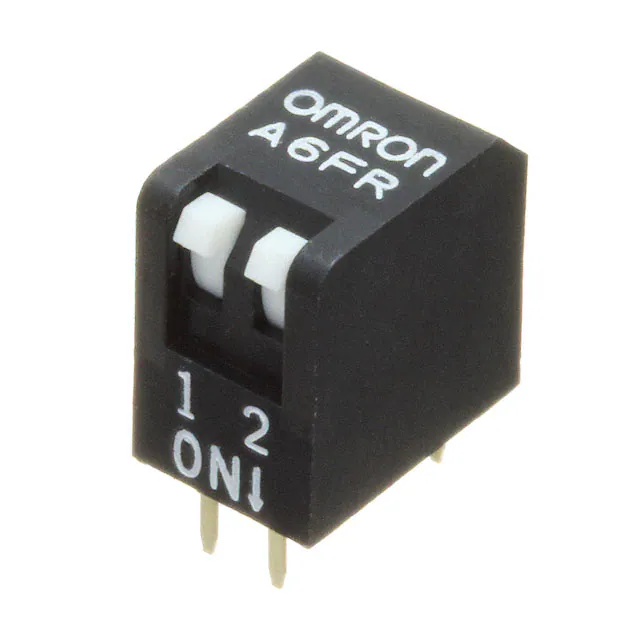

A6FR-2101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
114 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

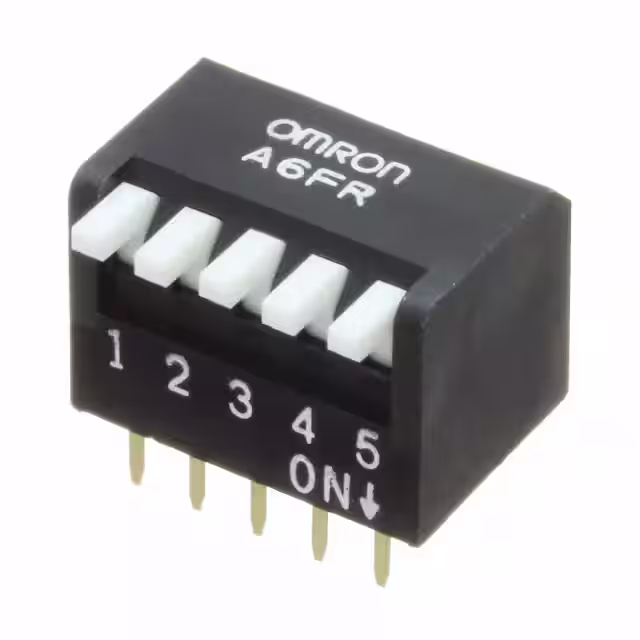

A6FR-5104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
254 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6FR-4104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,066 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

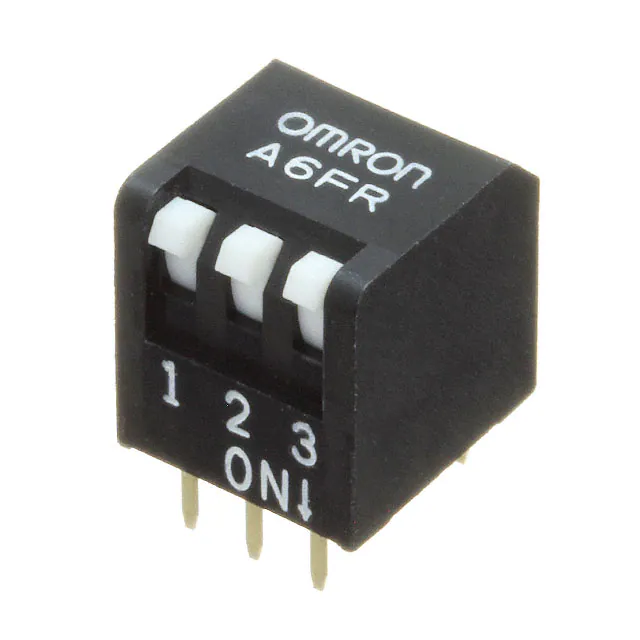

A6FR-3101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
324 |
|
Таблицы данных |
A6FR | Tube | Active | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

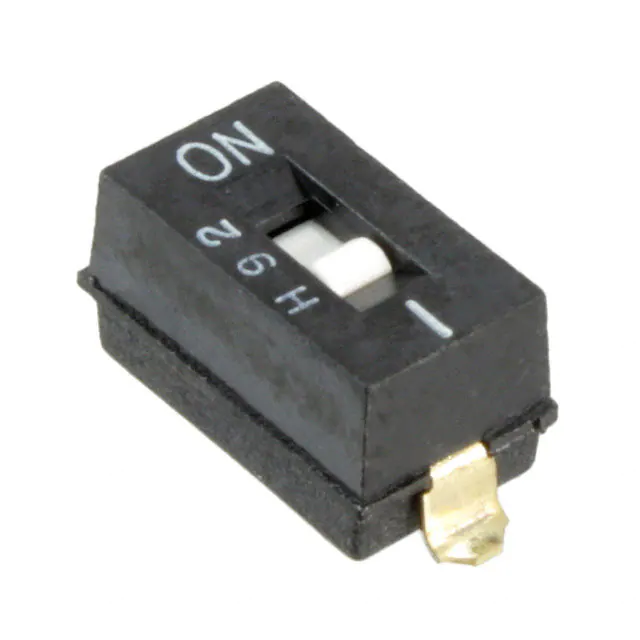

A6SN-1101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
465 |
|
Таблицы данных |
A6SN | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6TN-4101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
306 |
|
Таблицы данных |
A6TN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6SN-2102-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
515 |
|
Таблицы данных |
A6SN | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6T-1102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,422 |
|
Таблицы данных |
A6T | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

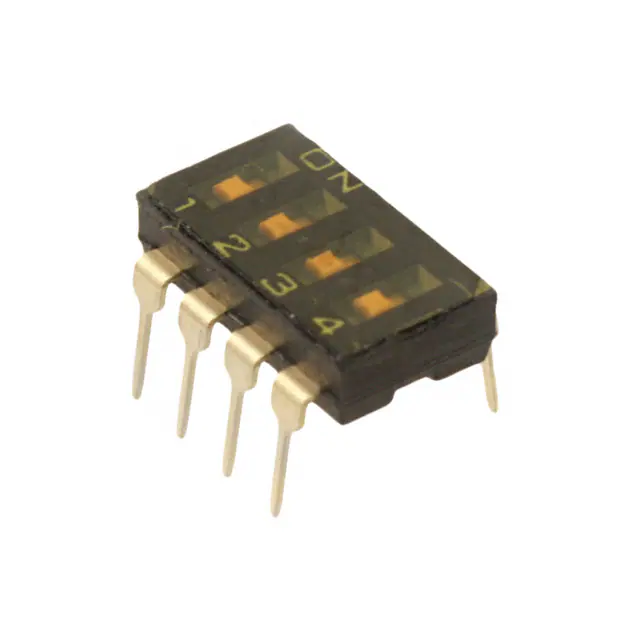

A6T-4102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
743 |
|
Таблицы данных |
A6T | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6T-2101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
290 |
|
Таблицы данных |
A6T | Tray | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
