БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD-1030WSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SD-1000 | Tray | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

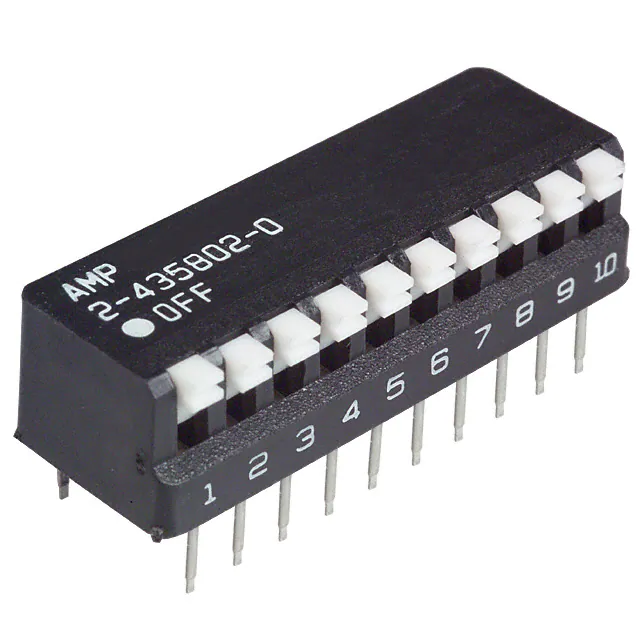

2-435802-0SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
7000 | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
TDP08H0SB1RSWITCH PIANO DIP SPST 25MA 24VDC |
0 |
|
Таблицы данных |
TDP | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
1-1825007-0SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
DRD | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.39mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
6-5435802-3SWITCH PIANO DIP SPST |
0 |
|
Таблицы данных |
7000 | Bulk | Active | SPST | 10 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
GDH08STRNSSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
GDH | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
|
CRE16ROTM0ASW ROTARY DIP HEX 150MA 42VDC |
0 |
|
Таблицы данных |
CRE | Bulk | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CHS-06MA1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
- |
CHS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-06MB1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
- |
CHS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
MDG305STSWITCH SLIDE DIP DPST 25MA 24V |
0 |
|
- |
MDG | Tube | Active | DPST-NO/NC | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Brass | Gold | 0.303" (7.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -25°C ~ 70°C |
|
|
5161390-7SWITCH DIP ASSY 7POS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RDTAR16S2TSWITCH ROTARY DIP HEX 0.15A 42V |
0 |
|
Таблицы данных |
RDT | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
DRD10RASWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Таблицы данных |
DRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|

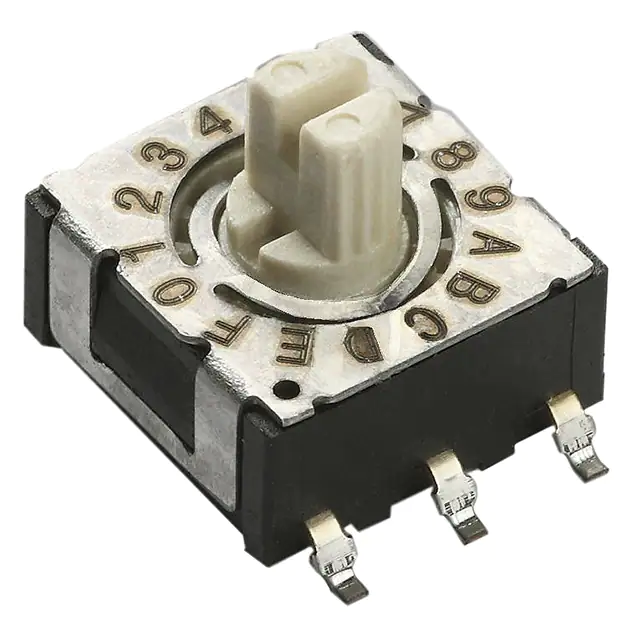

220AMB16RSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
Таблицы данных |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

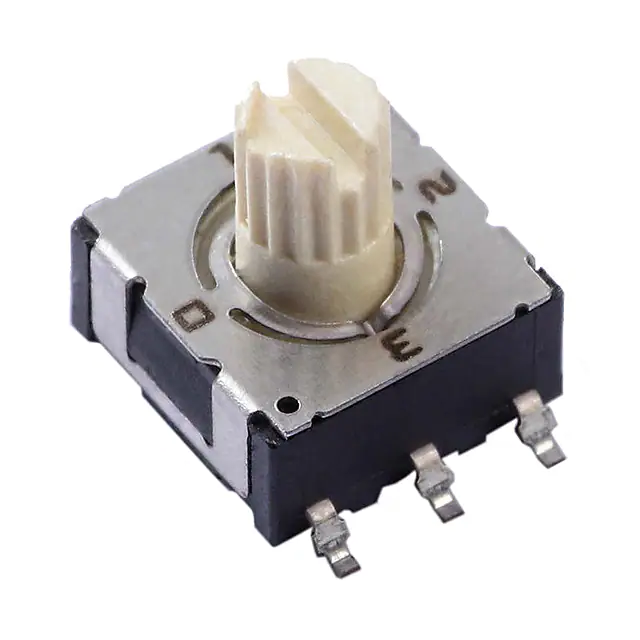

220AMC04RSWITCH ROTARY DIP SP4T 0.1A 50V |
0 |
|
Таблицы данных |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CVS-08TB-1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Таблицы данных |
CVS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
418311270806SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF04R2CSWITCH ROTARY DIP BCD 100MA 5VDC |
0 |
|
Таблицы данных |
RTF | Bulk | Active | BCD | 4 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF04C0CSW ROTARY DIP BCD COMP 0.1A 5VDC |
0 |
|
Таблицы данных |
RTF | Bulk | Active | BCD Complement | 4 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF04C2CSW ROTARY DIP BCD COMP 0.1A 5VDC |
0 |
|
Таблицы данных |
RTF | Bulk | Active | BCD Complement | 4 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
