БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS03TSWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS05TSWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS05SWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS04TSWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS04SWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS02TSWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DS03SWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS02SWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Bulk | Obsolete | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DS06TSWITCH SLIDE DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DS | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.271" (6.88mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|

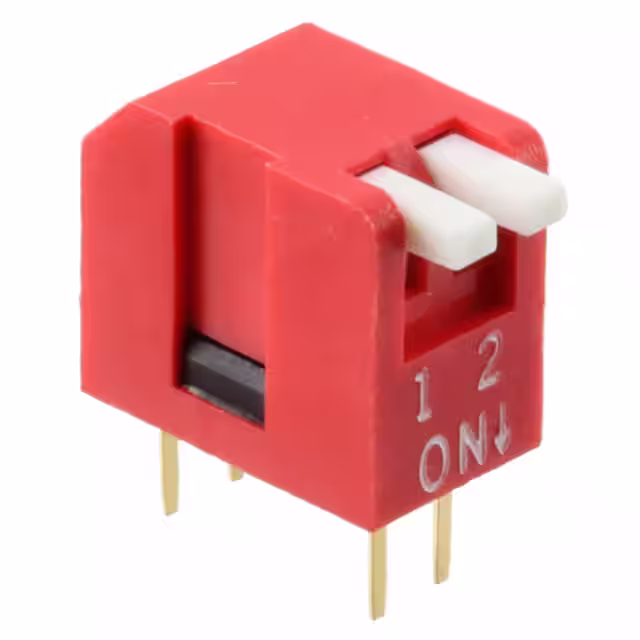

DPL02SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
0 |
|
Таблицы данных |
DPL | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
